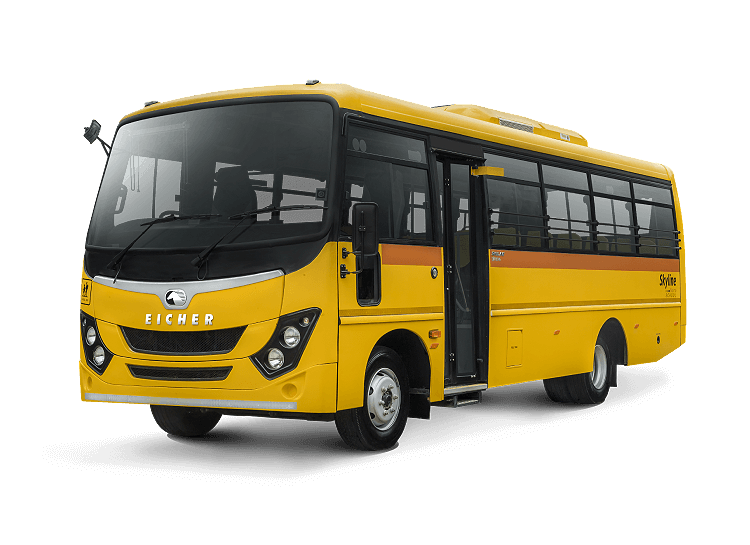

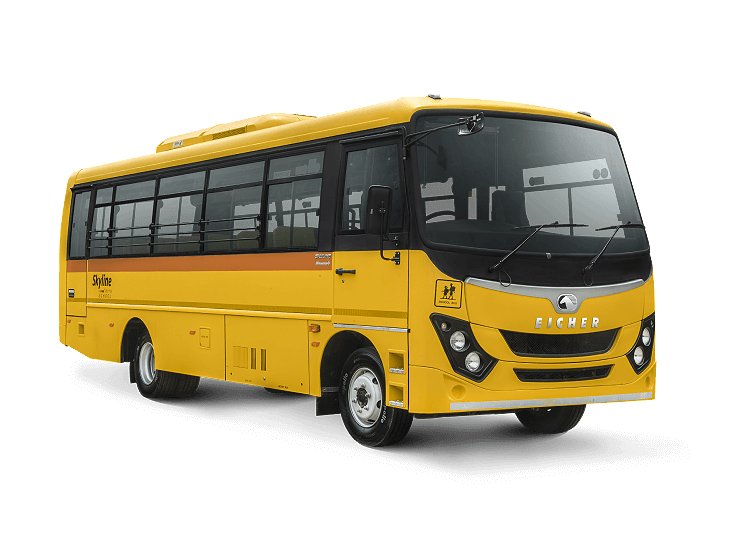

Eicher Skyline Next 2090 K AC

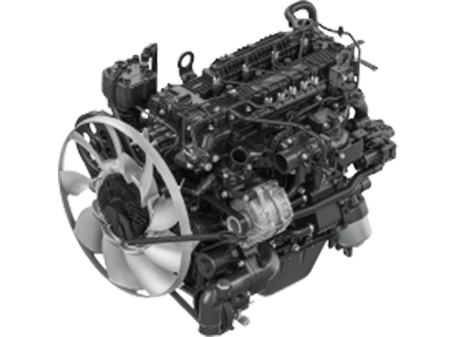

The Eicher Skyline 2090 K AC school bus epitomises safety, comfort, and performance within its spacious wide bus body. Loaded with advanced safety features such as silent and grease-free parabolic suspension, and radial tubeless tires, it ensures maximum safety and security. Powered by the cutting-edge BSVI E474 engine, this bus guarantees robust performance. Its excellent fuel efficiency and minimal maintenance costs significantly enhance your profitability
Seating Capacity39/47

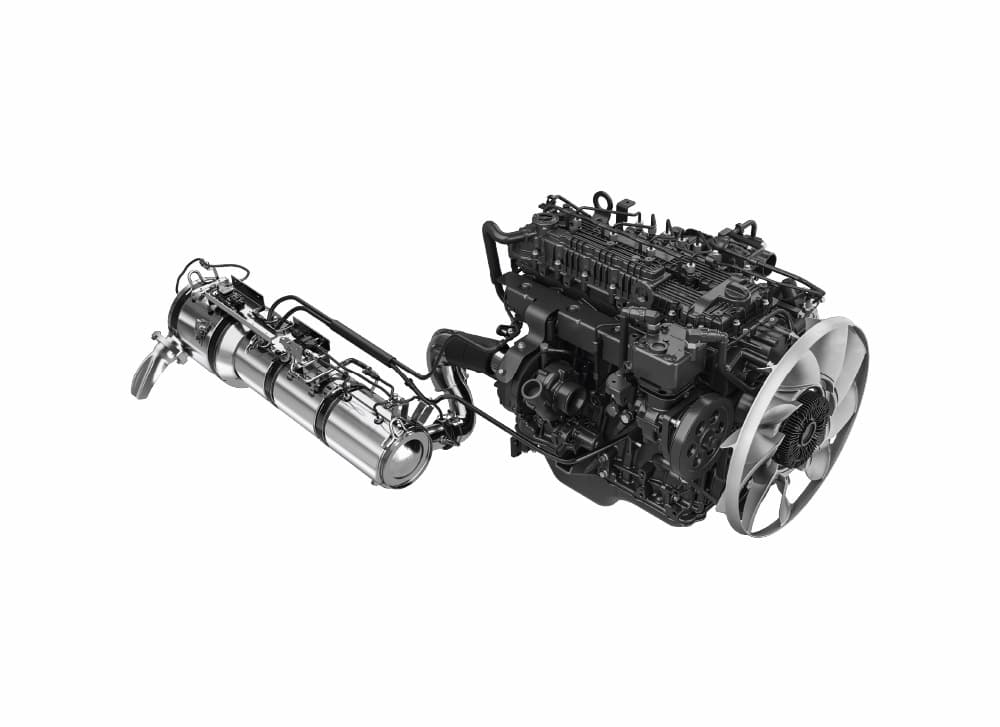

EngineE474
Power 105 kW
Torque400 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | School Skyline Next 2090 K | |
|---|---|---|
| Model | Skyline Next 2090 K AC | |
| Seating Capacity 3X2 | 46+CD+D | |
| Seating Capacity 3X3 | 53+CD+D | |
| Wheelbase (mm) | 4820 | |
| Overall length (mm) | 8910 | |
| Overall width (mm) | 2350 | |
| Overall height (mm) | 3070 | |
| Front overhang (mm) | 1200 | |
| Rear overhang (mm) | 2890 | |
| Turning circle diameter (m) | 17.9 | |
| Enginemake | E474 | |
| Displacement (cc) | 2960 | |
| Power | 105 kW @ 3200 rpm | |
| Torque | 400 Nm @ 1250 – 2500 rpm | |
| Clutch diameter (mm) | 310 | |
| Transmission | ET35S5 | |
| Transmission type | Synchromesh (5-SPeed+1Rev) |
|
| GVW (Tonnes) | 8.9 | |
| Chassis frame | Domex® 650 | |
| Chassis dimensions (mm) | 200X65X5 | |
| Fuel tank capacity (litre) | 100 | |
| Brakes | Air Drum Brakes | |
| Tyres | 235/75 R17.5-14 PR (radial tubeless) | |
| Suspension - front | Parabolic with ARB | |
| Suspension - rear | Parabolic | |
| Steering | Power steering | |
| Battery | 12V, 130Ah | |
| Alternator | 2 x 110A | |
| Floor type | Silicon embedded vinyl | |
| DEF tank capacity (litre) | 27 | |
