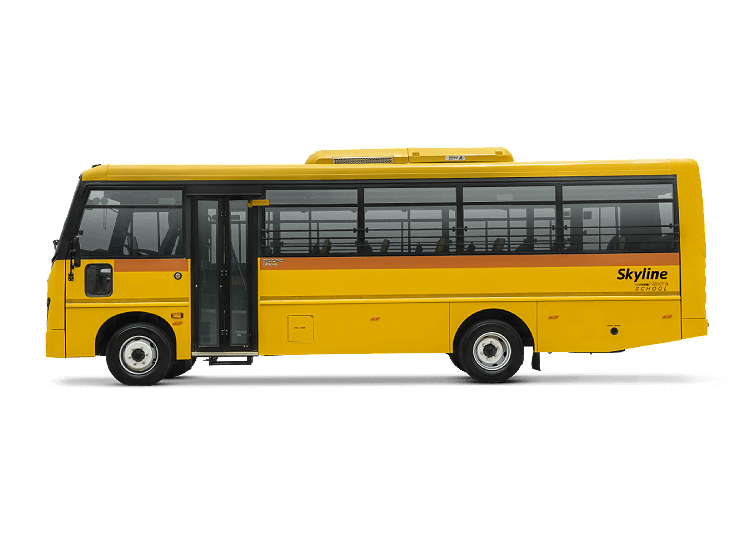

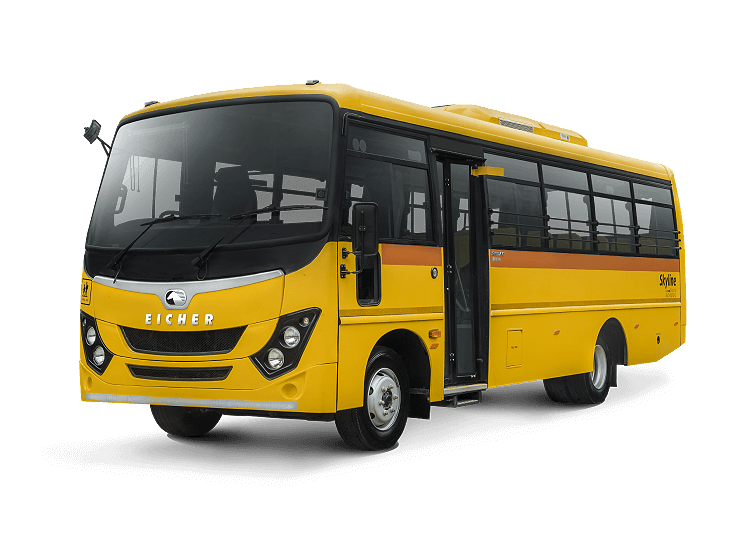

- Exterior

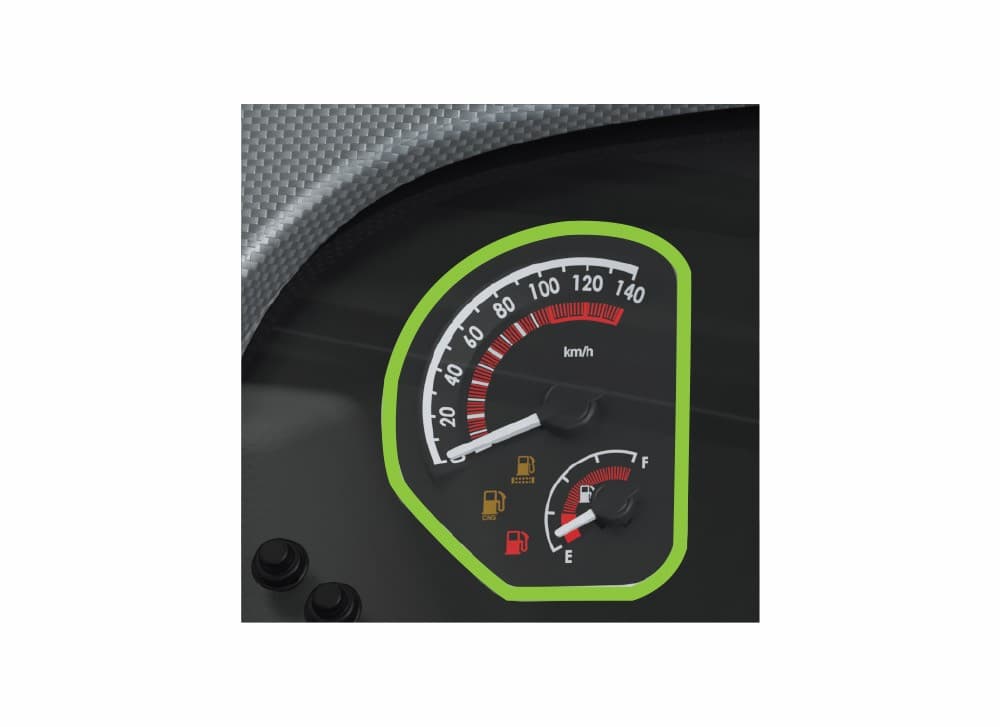

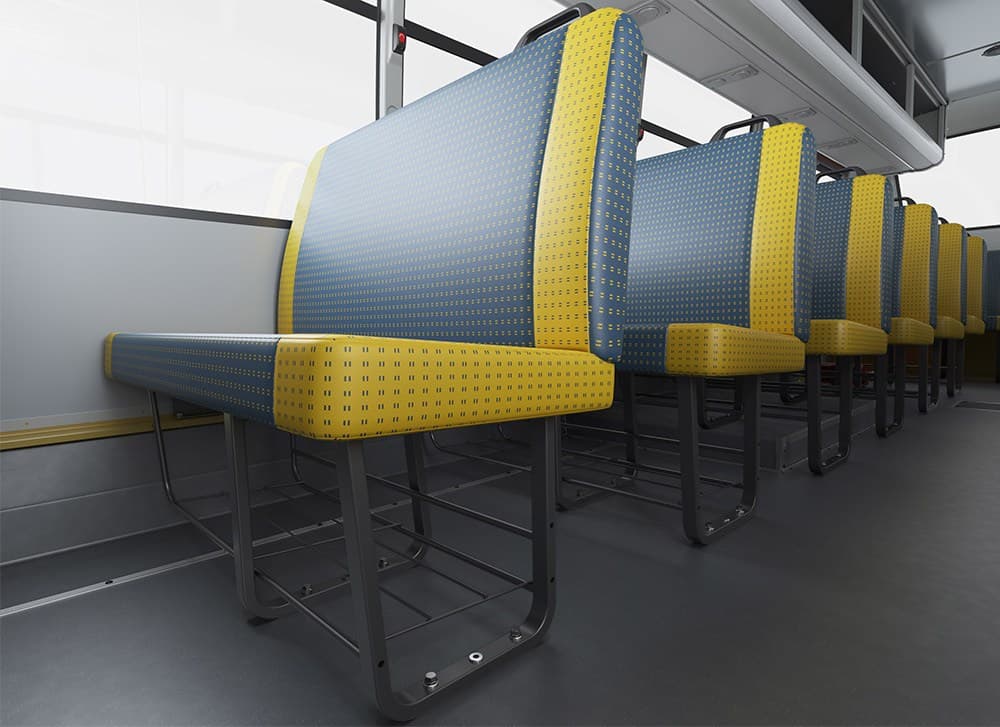

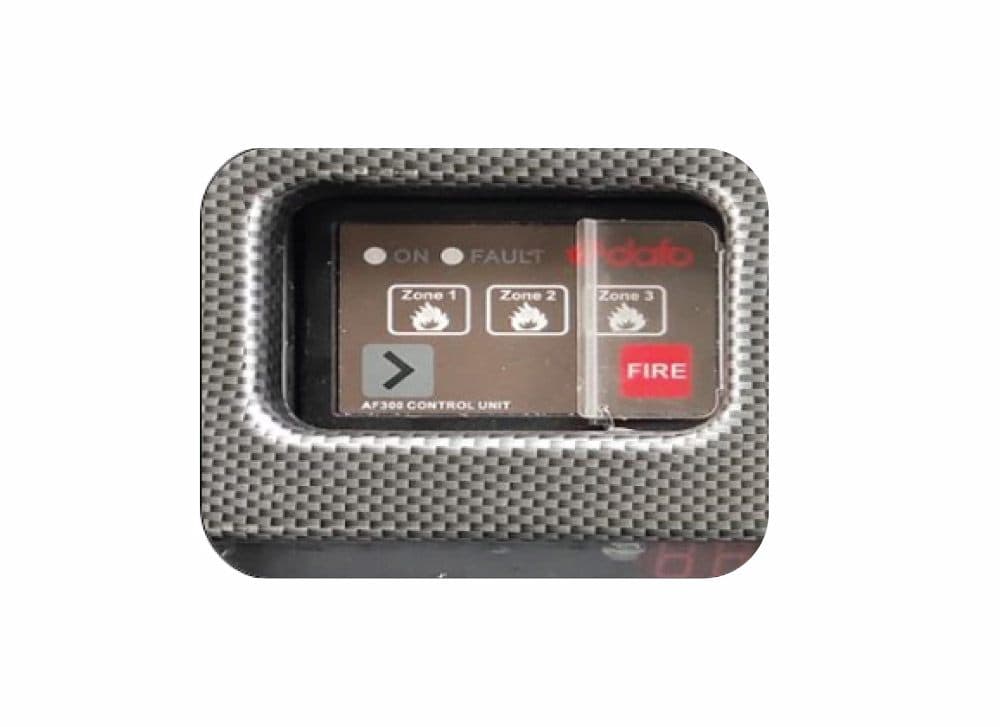

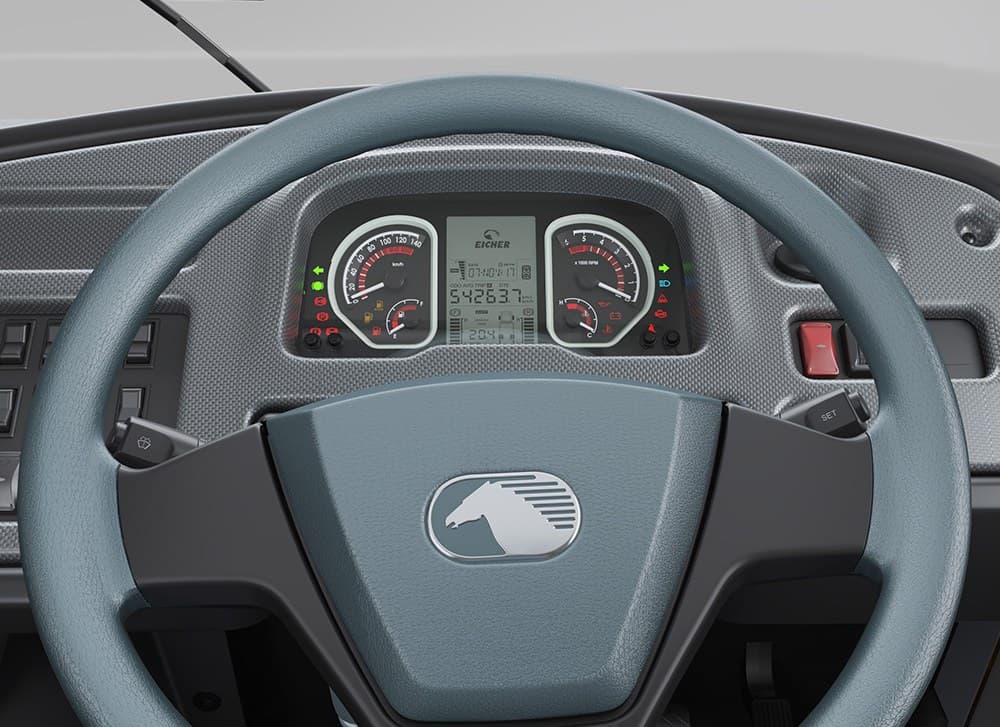

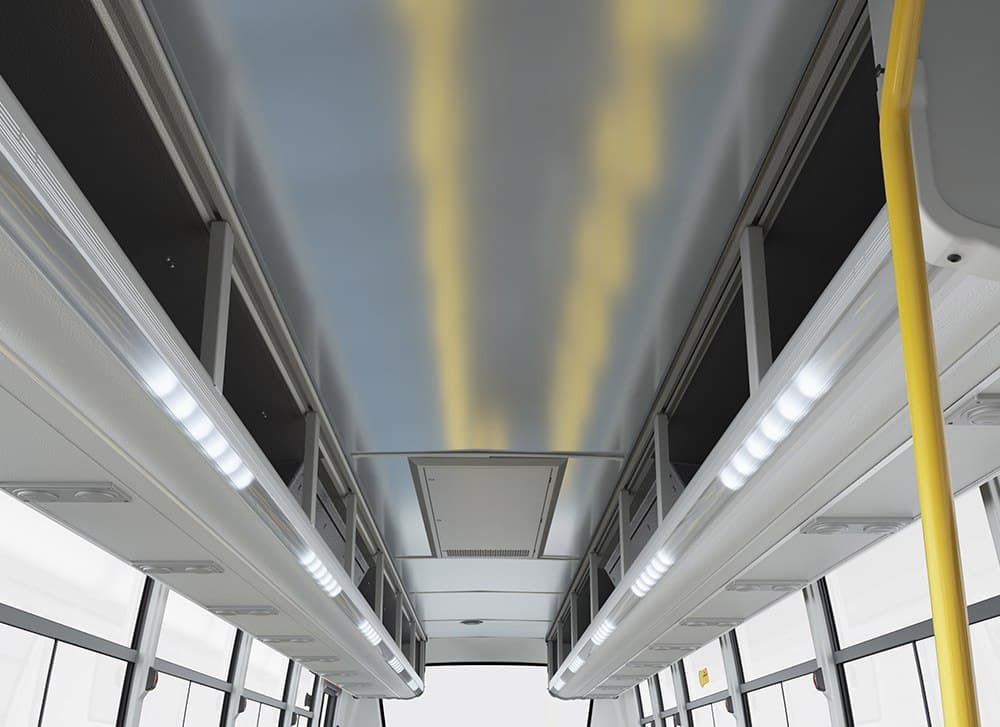

- Interior

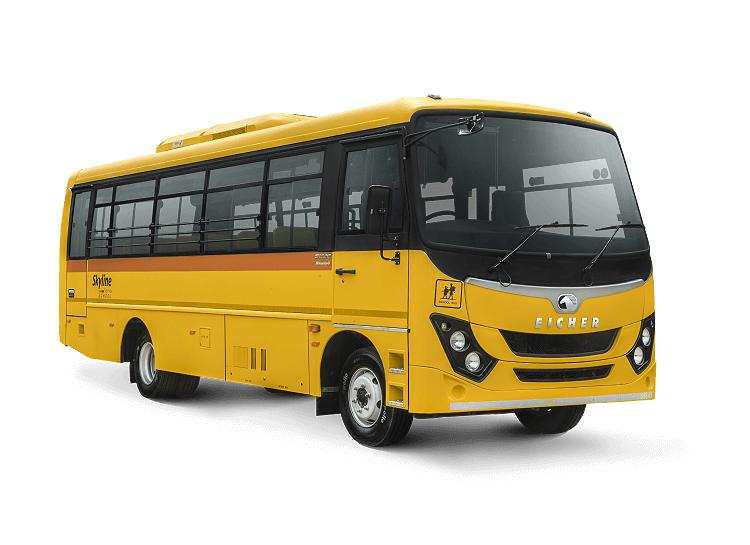

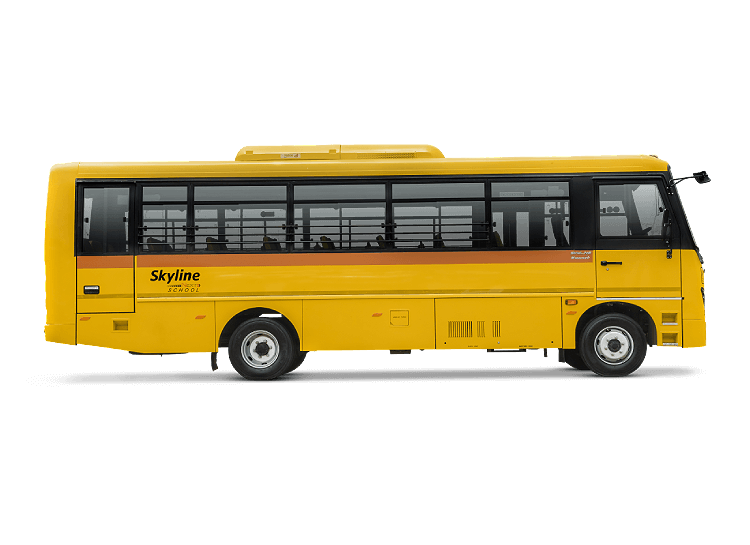

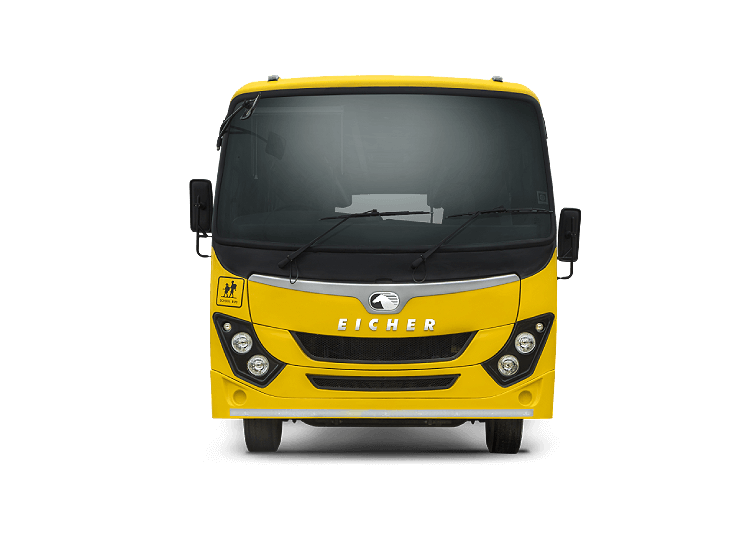

Eicher Skyline Next 2090 K
Provide a pleasant and secure journey with the Eicher Skyline Next 2090 K school bus. It features a wide bus body, silent and grease free parabolic suspension, and radial tubeless tyres. This premium bus exhibits unmatched performance with its state-of-the-art E474 engine. This BSVI Skyline Next School bus combines safety, comfort and performance for the success of your business. It enhances your profitability through its superior fuel efficiency and lower maintenance cost.
Seating Capacity39/47

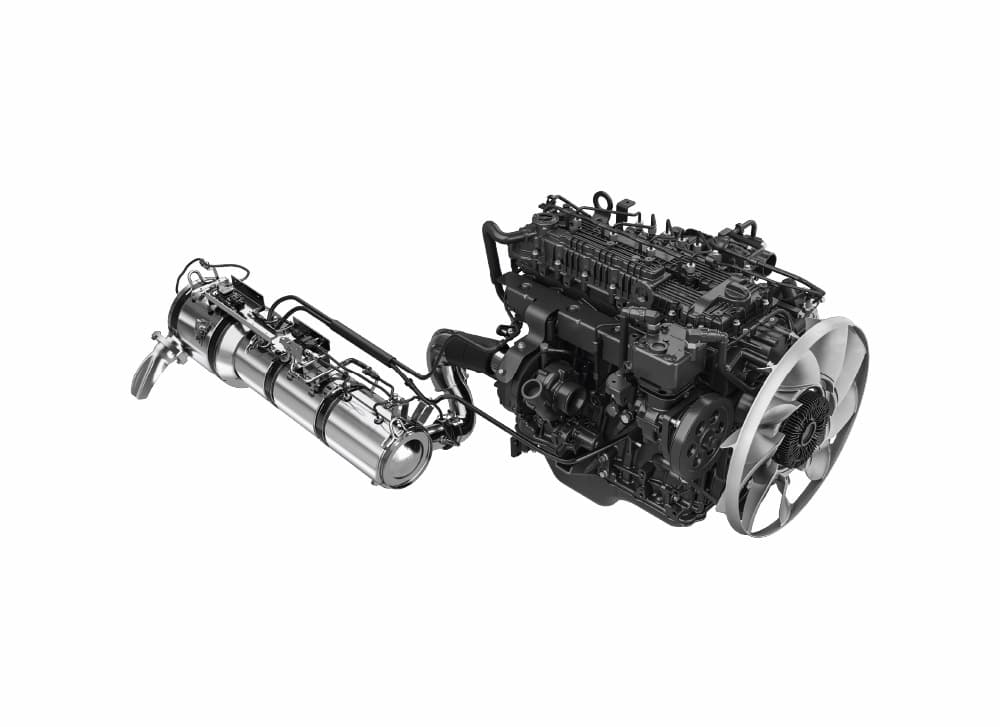

EngineE474
Power 90 kW
Torque350 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | Skyline Next 2090 K | |
|---|---|---|
| Model | Skyline Next 2090 K NAC | |
| Seating Capacity 3X2 | 46+CD+D | |
| Seating Capacity 3X3 | 53+CD+D | |
| Wheelbase (mm) | 4820 | |
| Overall length (mm) | 8910 | |
| Overall width (mm) | 2350 | |
| Overall height (mm) | 2860 | |
| Front overhang (mm) | 1200 | |
| Rear overhang (mm) | 2890 | |
| Turning circle diameter (m) | 17.9 | |

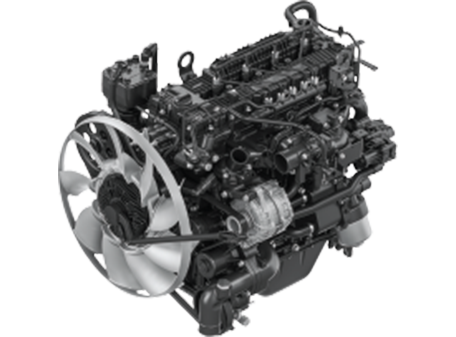

| Enginemake | E474 | |
| Displacement (cc) | 2960 | |
| Power | 90 kW @ 3200 rpm | |
| Torque | 350 Nm @ 1250 – 2500 rpm | |
| Clutch diameter (mm) | 310 | |
| Transmission | ET35S5 | |
| Transmission type | Synchromesh (5-SPeed+1Rev) |
|
| GVW (Tonnes) | 8.9 | |
| Chassis frame | Domex® 650 | |
| Chassis dimensions (mm) | 200X65X5 | |
| Fuel tank capacity (litre) | 100 | |
| Brakes | Air Drum Brakes | |
| Tyres | 235/75 R17.5-14 PR (radial tubeless) | |
| Suspension - front | Parabolic with ARB | |
| Suspension - rear | Parabolic | |
| Steering | Power steering | |
| Battery | 12V, 130Ah | |
| Alternator | 110A | |
| Floor type | Silicon embedded vinyl | |
| DEF tank capacity (litre) | 27 | |
