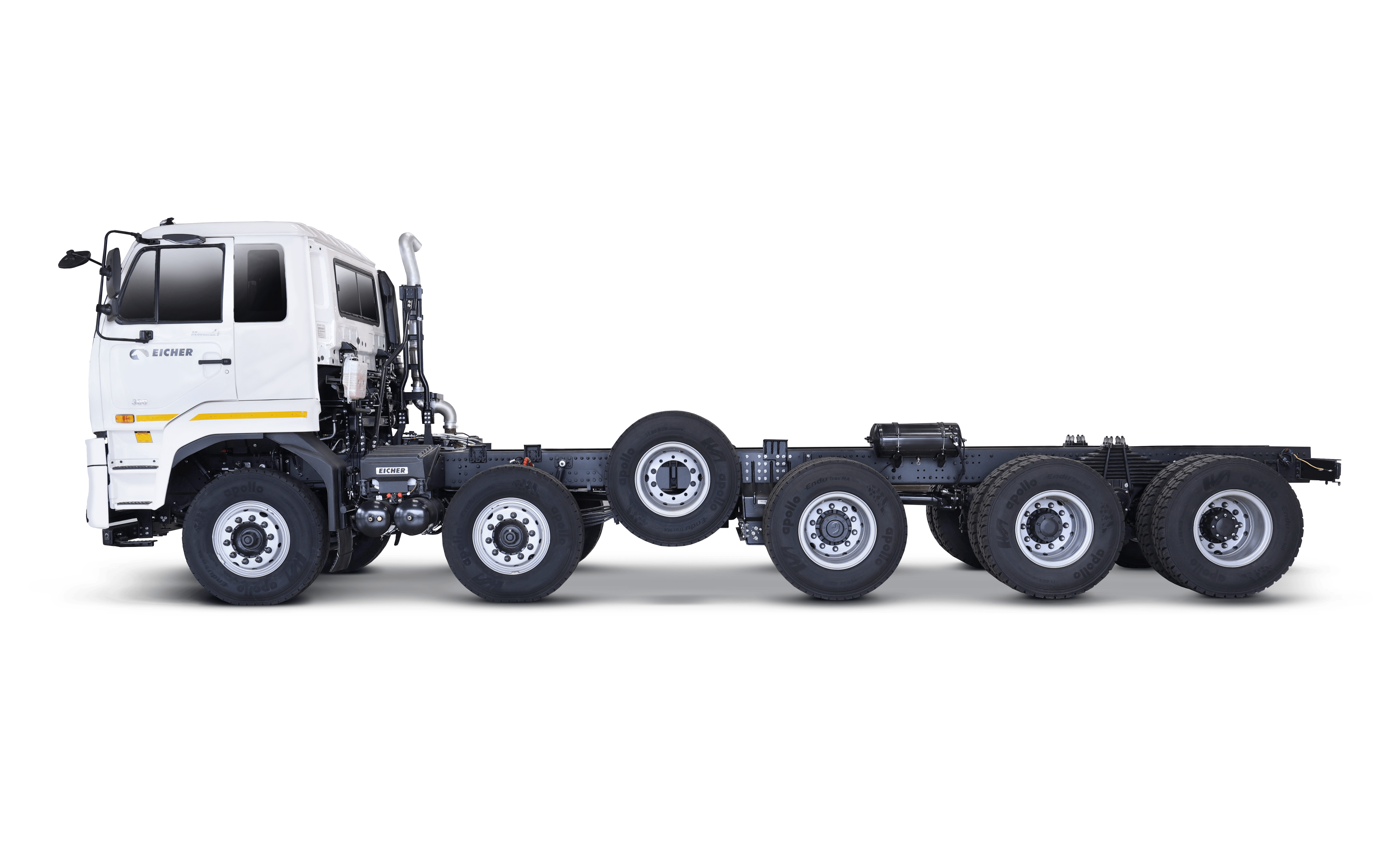

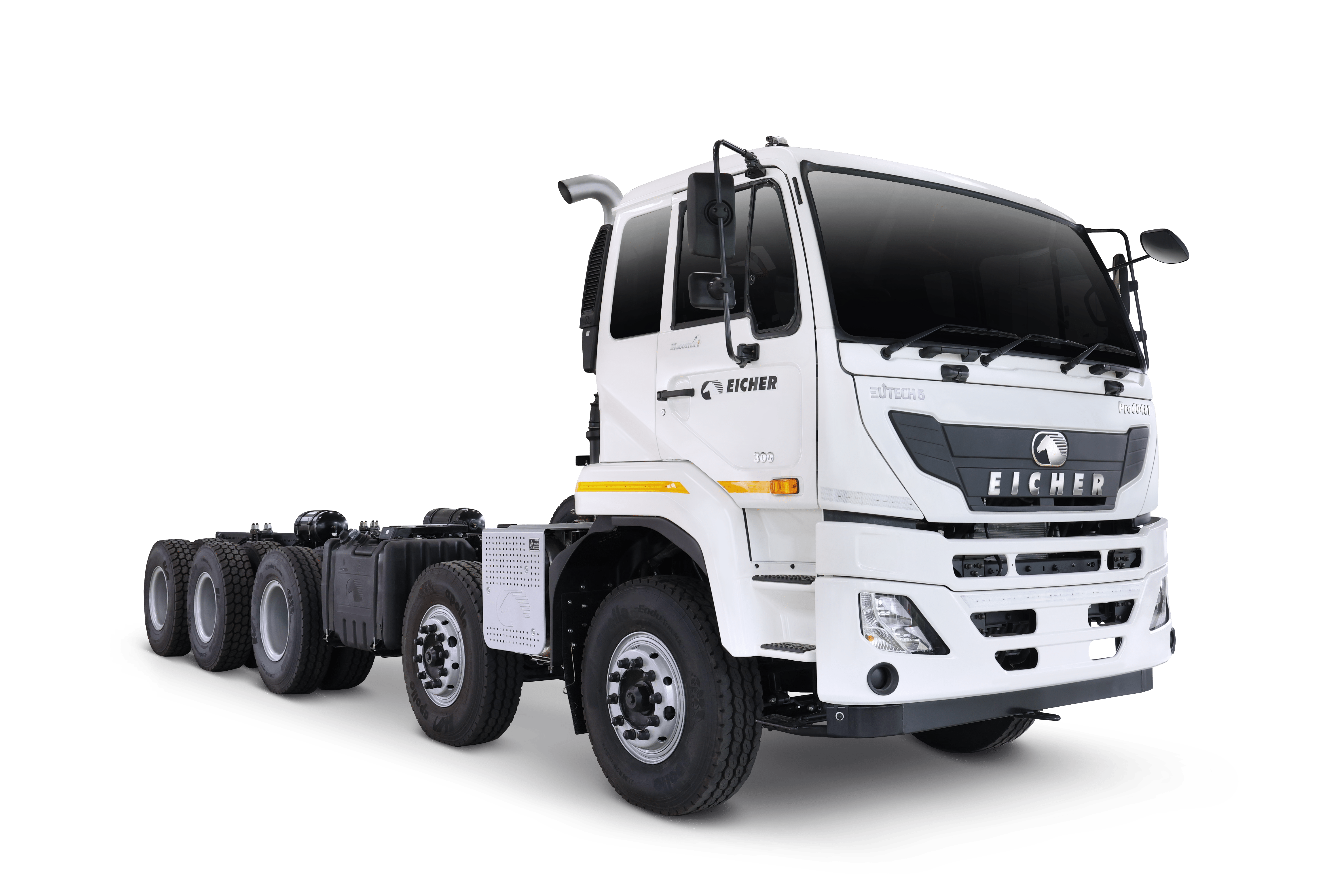

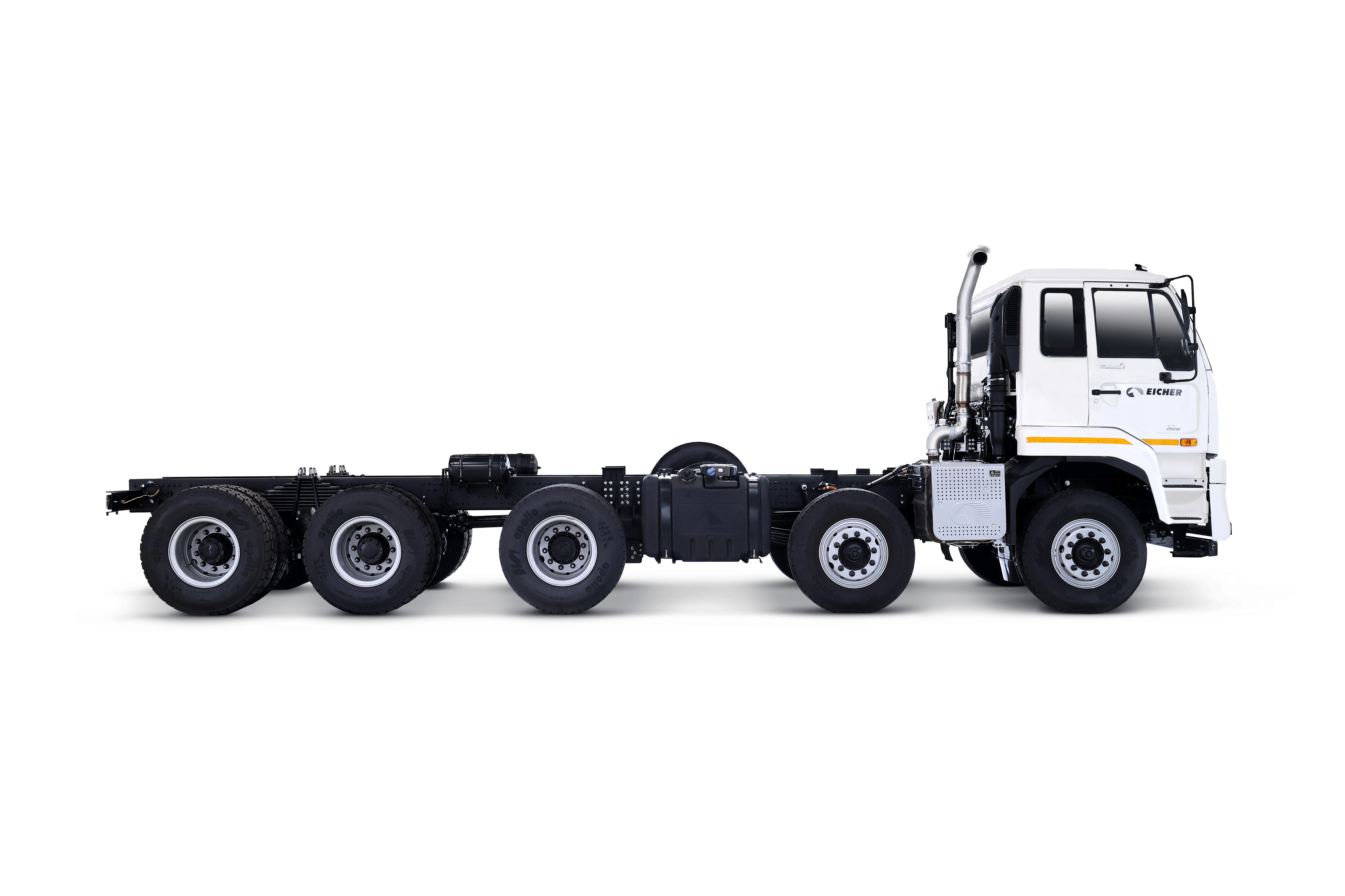

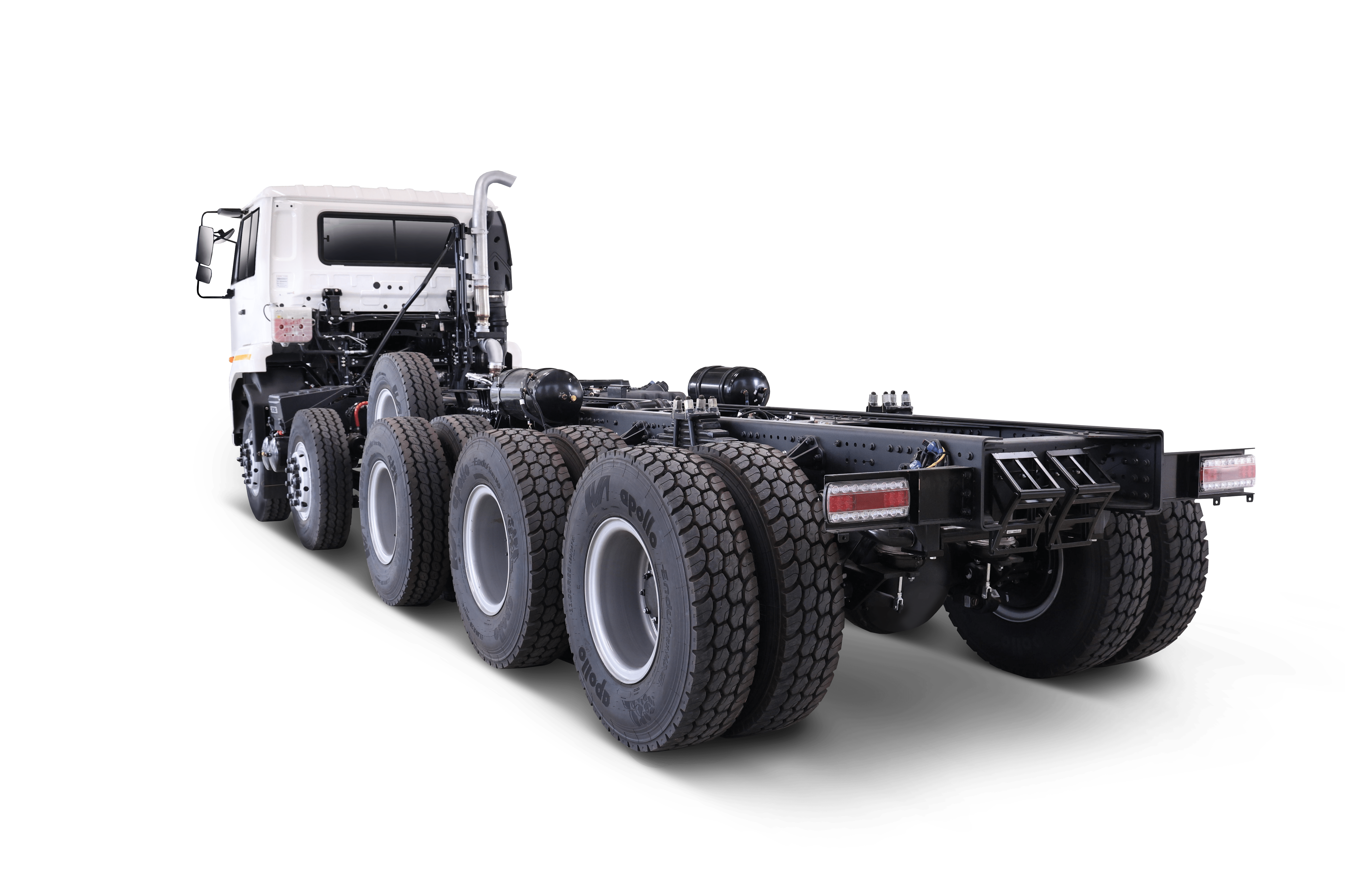

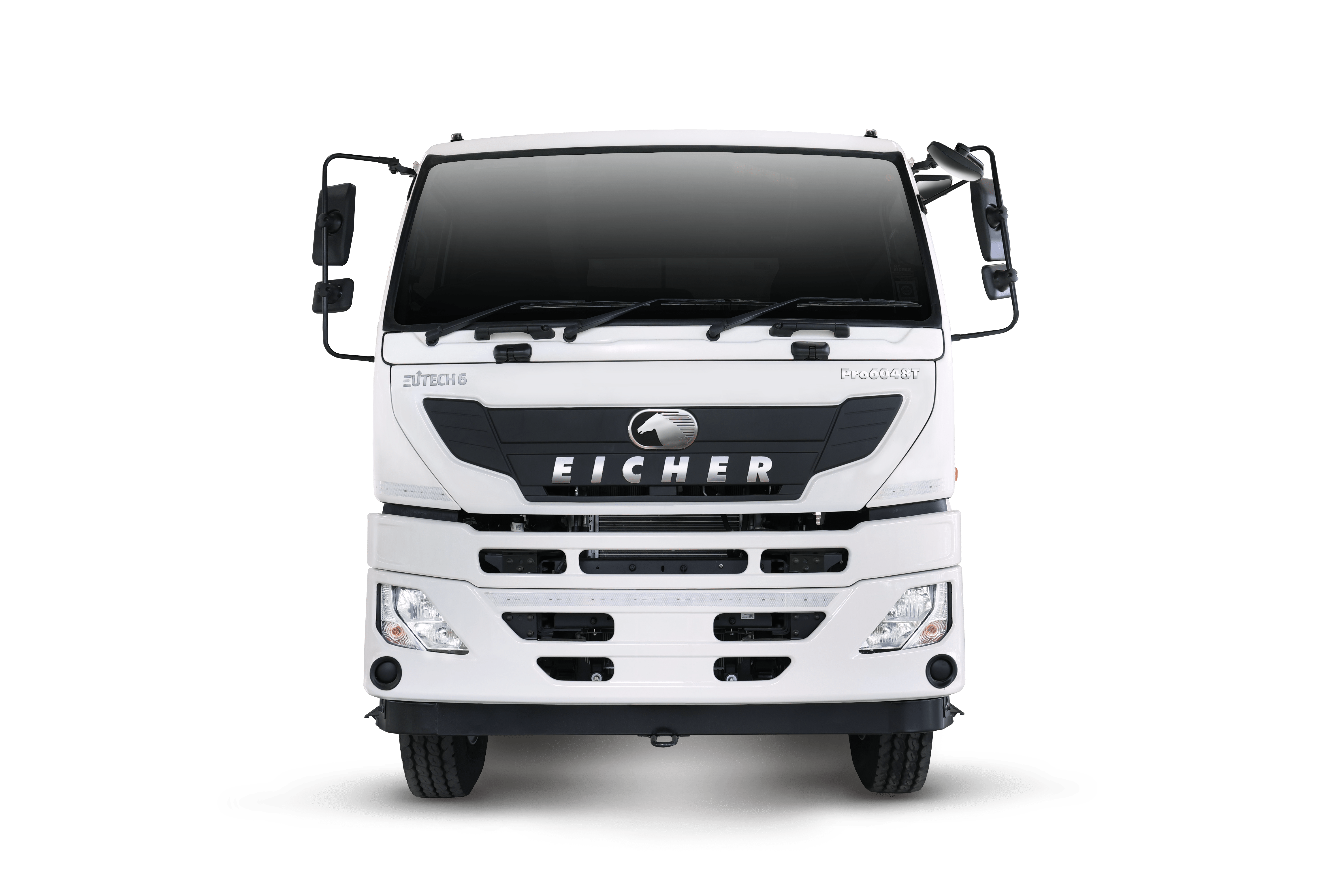

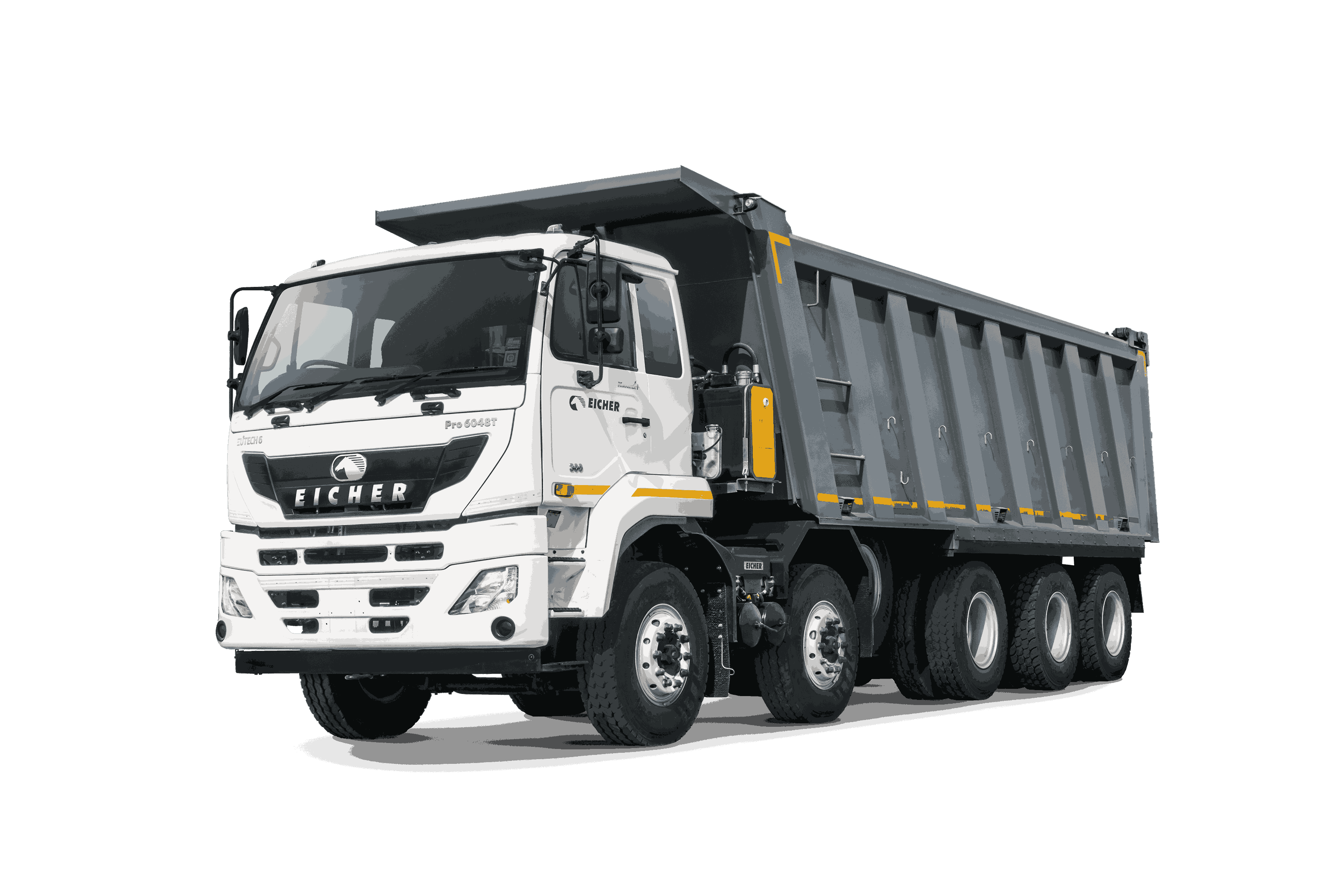

Eicher Pro 6048T
Do more with the all new Eicher Pro 6048T. Equipped with industry's biggest VEDX8 7.7L engine, offering unmatched performance for all your needs. Backed by stronger aggregates to perform in toughest of operations, offering you more Uptime & productivity. Increase your overall fleet efficiency & productivity with Pro 6048T.
GVW47.5 T
EngineVEDX8, 6Cyl 7.7L
Power 224kW
Torque1200 Nm
TransmissionET140S9
VariantsCBC/29CuM
- Specification
- Technology
| SPECIFICATIONS | Pro 6048T |
|---|---|
| GVW (Kg) | 47500 |
| Engine | VEDX8 BSVI, OBD II |
| Max Power | 224kW @ 2200rpm |
| Max Torque | 1200Nm @ 1200-1600 rpm |
| Clutch Size (mm) | 430, Pull Type, Single Dry Plate |
| Transmission | ET140S9, 9Speed (Manual) |
| Front axle | Forged I-beam Reverse Elliot Type with Anti-Roll Bar |
| Rear axle | Single Reduction with interaxle differential lock |
| Rear axle ratio | 5.29 |
| Differential lock | Interaxle lock |
| Chassis dimensions (mm) | 300x90x8, with 5mm full inner liner |
| Service brake | S-cam dual line with ABS |
| Parking brake | Pneumatically operated hand control valve |
| Front suspension | Parabolic spring with shock absorber |
| Rear suspension | Bogie suspension with Rear Anti-Roll Bar |
| Cabin | Sleeper Cabin with HVAC & Air Suspended Driver Seat |
| Steering | Tilt & Telescopic, Power Steering |
| Tyres | 11x20, (Nylon, Radial) |
| Wheel Rims | 7.5x20 (11X20), 8X20 (11R20) |
| Fuel tank (liters) | 350 -Polymer |
| DEF Tank (liters) | 50 |
| Battery | 24V:120Ah |
| Turning circle diameter (m) | 23.7 |
| Gradeability (%) | 32 % @C-Gear |
| Wheelbase (mm) | 6785 |
| Ground clearance (mm) | 250 mm |
| Body variants | CBC , 29CuM Box |

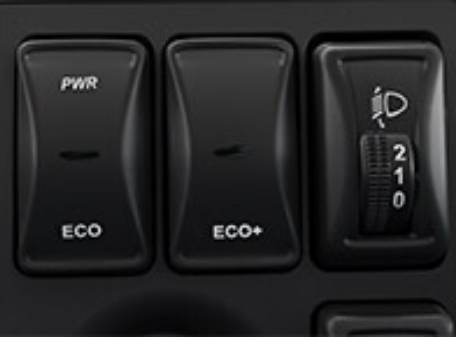

| Standard features | Hill Start Assist , MBooster+,Cruise Control ,My Eicher |
