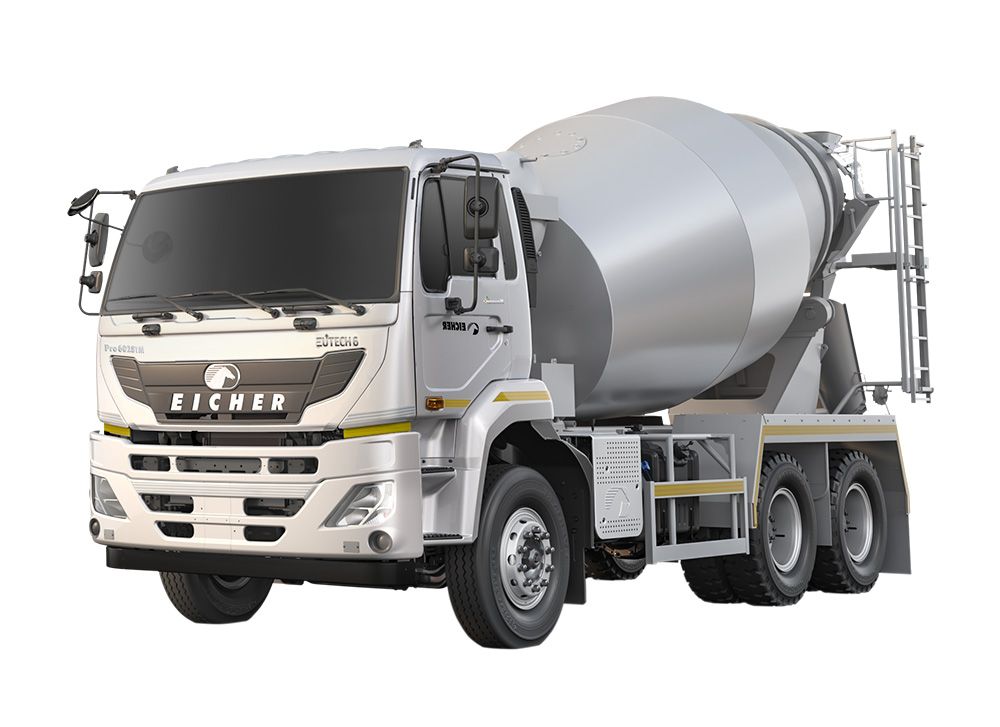

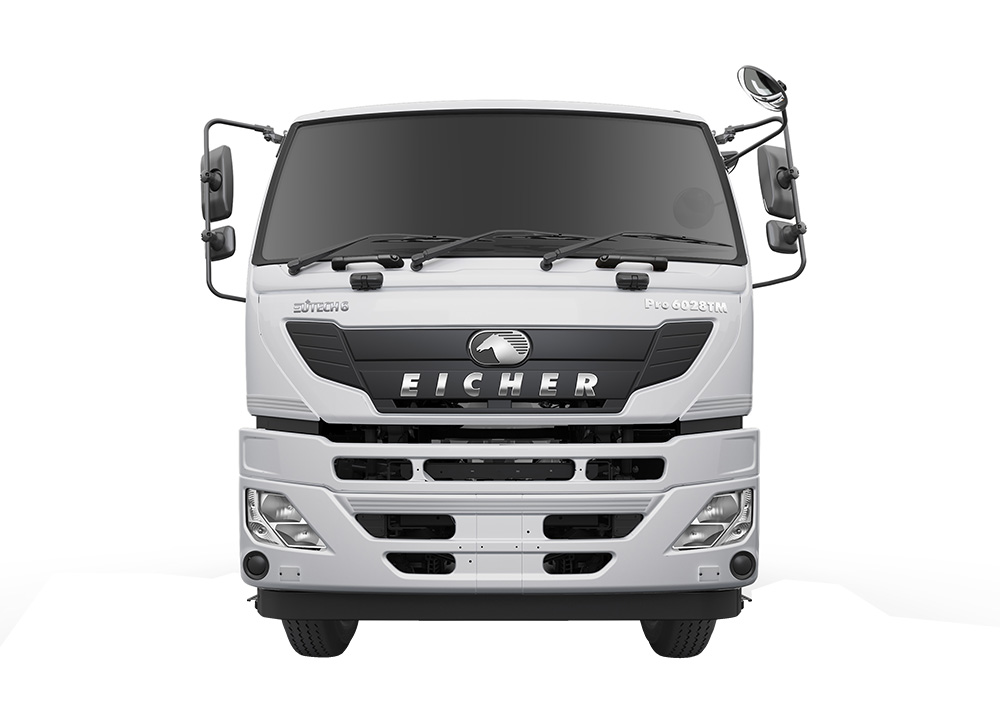

EICHER Pro 6028TM

The new Eicher Pro 6028TM, India's 1st 4 cylinder 6x4 transit mixer, is built on do more philosophy to deliver best in class productivity and uptime through its versatile offering and benefit of higher payload, lower TCD, body friendly chassis, powerful engine PTO, low maintenance suspension and advance telematics ensuring construction project stay on schedule.

Power210HP
Torque825Nm
Drum DriveEPTO/SLVE
TCD15.1 m
Drum Size6, 7, 8
CabinBlower
  • Specifications
  • Benefits
  • Technology
Model Eicher Pro 6028TM
GVW (Kg) 28000
Engine Model VEDX5, BS-VI
Max Power 210HP @ 2200
Max Torque 825 Nm @ 1200-1600 rpm
Clutch Type & Diameter 395mm, Push Type, Single Dry Plate
Gearbox ET90S6 - 6F+1R
Front Axle Forged I-beam
Reverse Elliot type axle with stabilizer bar
Rear Axle VECV 440DH Single Reduction Tandem Fully Floating Banjo
Rear Axle Ratio 5.83
Differential lock Inter-axle

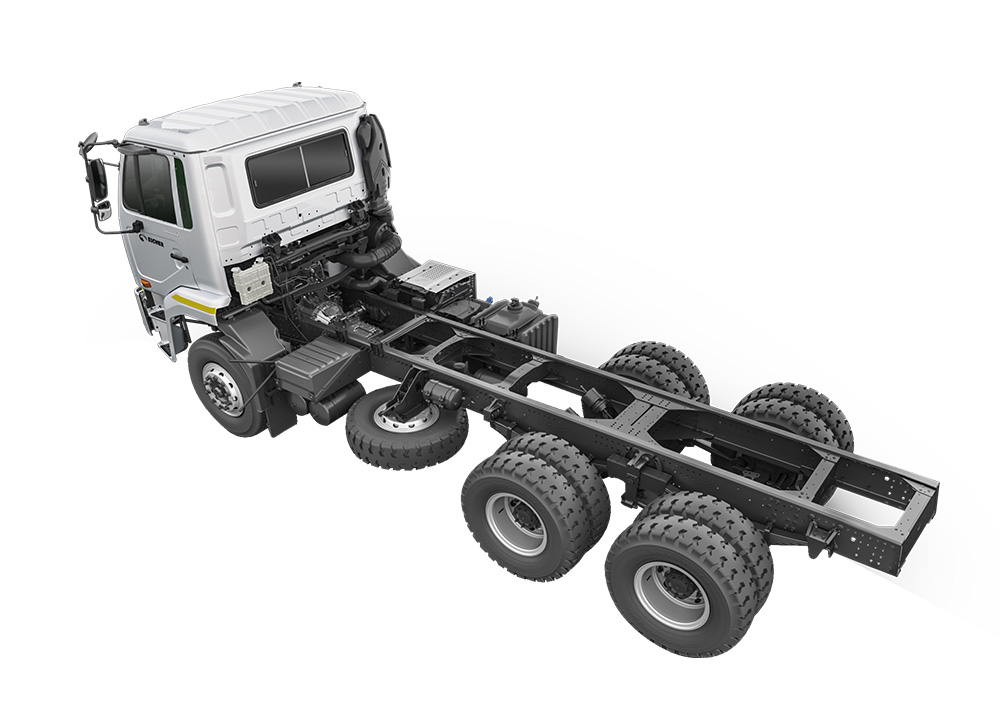

Chassis dimension (mm) 300x76x7 with 5mm Full length inner liner
Front suspension Parabolic
Service brake S-Cam Dual line with ABS
Parking brake Pneumatically operated hand control valve
Wheel Rims 7.5x20
Tyres 11x20 (Nylon)
Steering Type Tilt and Telescopic Power steering
Cabin Day Cabin
Fuel Tank (L) 220
DEF Tank (L) 33
Electricals & Battery 24V; 120AH
Minimum Ground Clearance (mm) 255
Drum Size (Cum) 6 7 8
Wheelbase (mm) 4250 4285 4250 4285 4250 4285
Suspension Slipper Bogie Slipper Bogie Slipper Bogie
Drive EPTO & Slave EPTO & Slave EPTO & Slave EPTO & Slave EPTO EPTO & Slave
Turning Circle Diameter (m) 15.1 (4250 mm)
15.2 (4285 mm)
Gradeability (%) 25 in 1st Gear
Standard Features Eicher Live, Fuel Coaching, Cruise Control, M Booster+

More Tonnes per Litre

Powered with proven engine technology, delivering higher peak torque over a wide range of RPM, Pro 6028TM gives you best in class fuel efficiency

More Trips. Faster Turnaround.

High torque at wheels and higher power to weight ratios ensure outstanding gradeability, better pick up, faster turnaround and more trips.

Superior Uptime.

With robust and rugged aggregates, coupled with advanced technology , our trucks are built to last. Alongwith full equipped service network, these trucks ensure Superior Uptime.

Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

M-Booster+

M Booster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy
