Eicher Pro 6028TM 224 kW
Do More with the all new Eicher Pro 6028TM now with 300HP, VEDX8 engine for catering all that you need in your heavy duty operations. Equipped with larger drum size on a 6x4 TM, increasing productivity and profitability.
GVW28 t
EngineVEDX8, 6Cyl 7.7L
Power 224 kW
Torque1200 Nm
TransmissionET140 9S, 9Speed manual
VariantsCBC / 9CuM / 10CuM
- Specification
- Technology
- Applications
| Model | Eicher Pro 6028TM 224 kW |
|---|---|
| GVW | 28000 kg |
| Engine | VEDX8, 7.7L, 6 Cylinder BSVI ODBII |
| Max Power | 224kw @ 2200rpm |
| Max Torque | 1200Nm @ 1200-1600 RPM |
| Clutch Diameter | 430 mm |
| Gearbox | ET140 9S, 9 Speed Manual |
| Front Axle | Heavy duty forged I-Beam Reverse Elliot type |
| Rear Axle | Single reduction with differential lock |
| Drive Head | 440 mm |
| Rear Axle Ratio | 5.29 |
| Chassis Dimension (mm) | 300x76x7 with 5mm full liner (Bogie) |
| Front Suspension | Parabolic Leaf Spring |
| Rear Suspension | Bogie |
| Anti Roll Bar (Rear) | Yes |
| Cabin | Day cabin with HVAC & Mechnical suspended seat |
| Steering | Tilt and Telescopic Power Steering |
| Tyres | 295/95D20 |
| Fuel Tank | 220 litres |
| DEF Tank | 33 litres |
| Turning Cycle Dia (m) | 17 |
| Gradeability | 65% |
| Drum Size | 9CuM/10CuM |
| Ground Clearance (mm) | 285 |
| Wheelbase (mm) | 4585 |

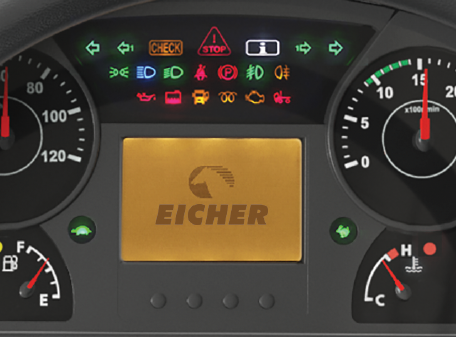

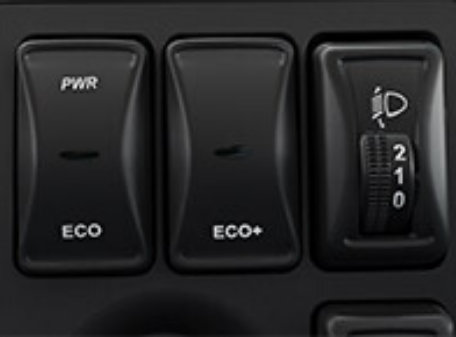

| Standard Features | My Eicher, Fuel Coaching, Cruise Control, MBooster+, Easy Drive |
