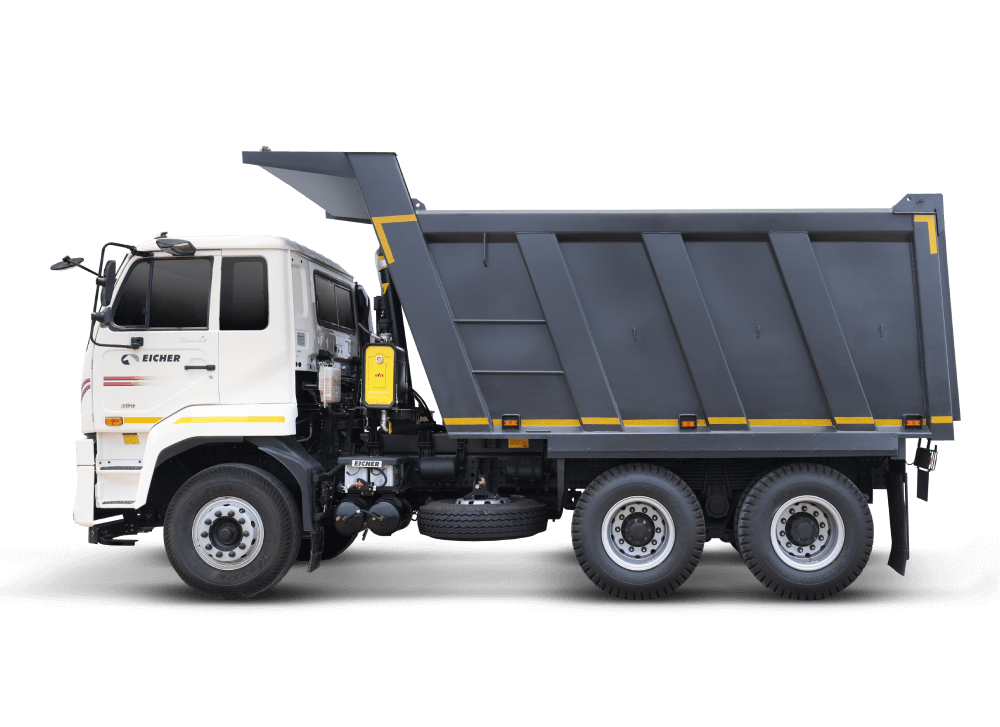

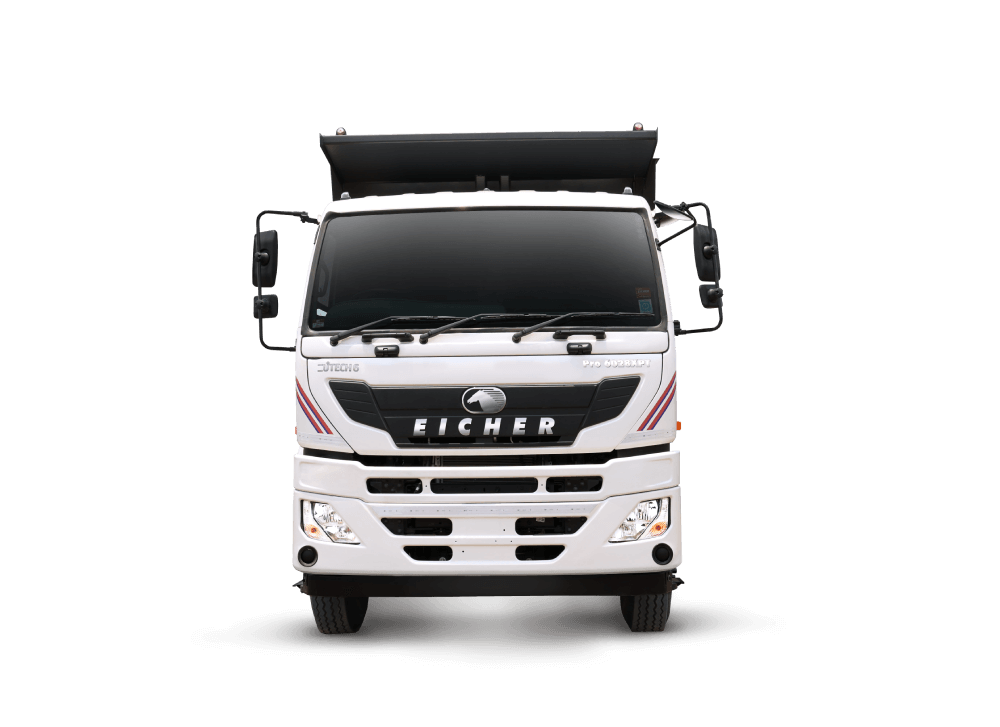

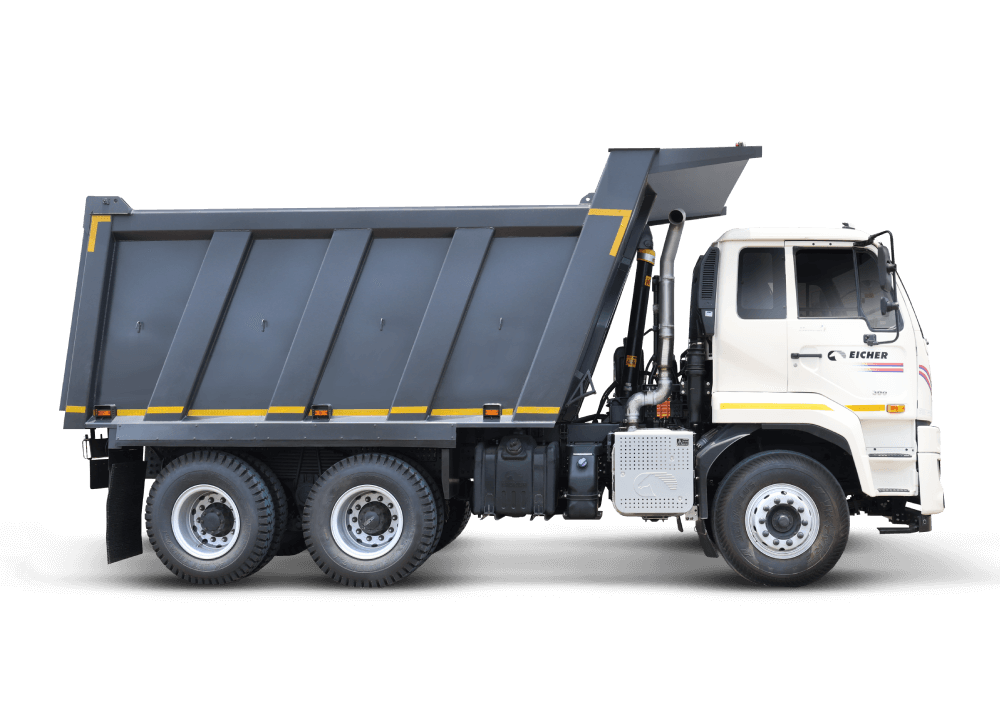

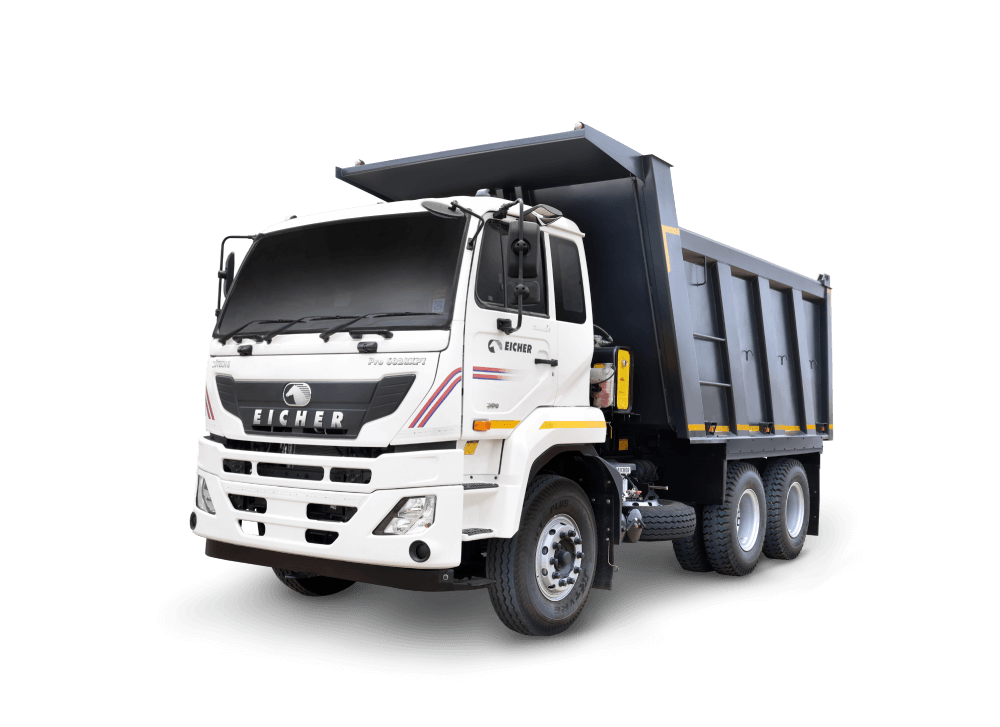

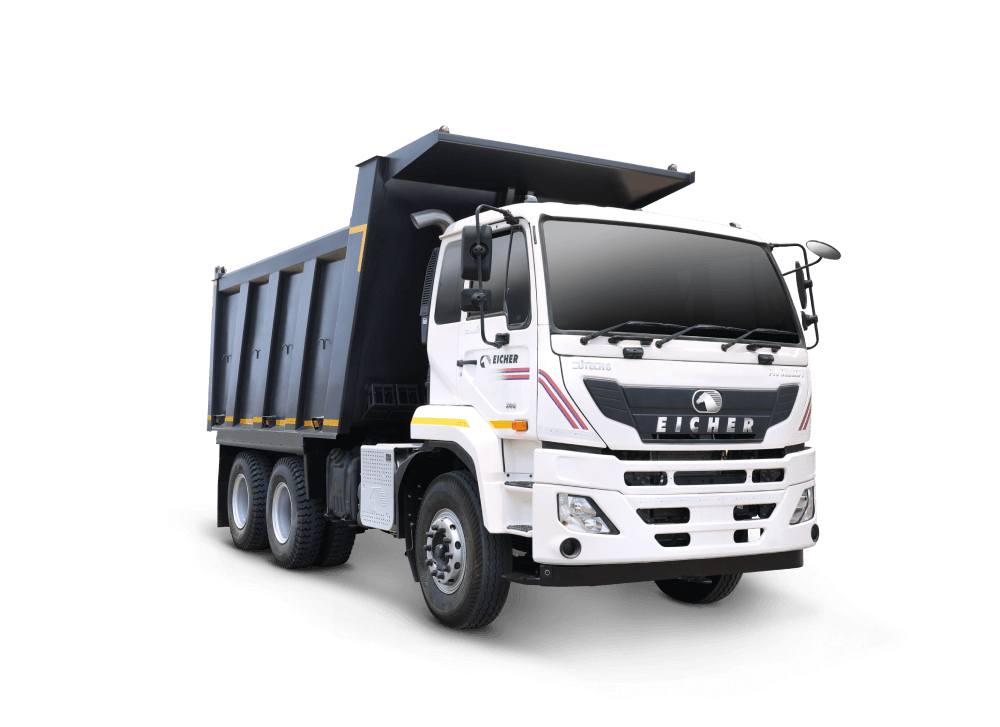

Eicher Pro 6028XPT
Do Even more with the all new Eicher Pro 6028XPT, now upgraded with increased horsepower & torque. Equipped with VEDX series 7.7L engine, offering unmatched performance for all your needs. Backed by even sturdier aggregates & a single reduction tandem axle to bear the heavy load and tough demands from daily operations. Increase your overall fleet efficiency & productivity with Pro 6028XPT.
GVW28 t
EngineVEDX8, 6Cyl 7.7L
Power 224 kW
Torque1200 Nm
TransmissionET1409S
VariantsCBC / 14RB / 16BB / 20BB
- Specification
- Technology
| SPECIFICATIONS | Pro 6028XPT |
|---|---|
| GVW (KG) | 28000 |
| Engine | VEDX8 BSVI, OBD II |
| Max. Power | 224kW@ 2200rpm |
| Max. Torque | 1200Nm@1200-1600rpm |
| Clutch (mm) | 430mm, Pull Type, Single Dry Plate |
| Gearbox | ET140S9 9-Speed (Manual) |
| Front Axle | Forged I-beam Reverse Elliot Type with Anti-Roll Bar |
| Rear Axle | Single Reduction with interaxle differential lock |
| Rear Axle Ratio | 4.8 |
| Chassis Dimensions (mm) | 300x90x8, with 5mm full inner liner |
| Service Brake | S-cam dual line ABS |
| Parking Brake | Pneumatically operated hand control valve |
| Front Suspension | Parabolic spring with shock absorber |
| Rear Suspension | Bogie suspension with Rear Anti-Roll Bar |
| Cabin | Sleeper Cabin with HVAC & Air Suspended Driver Seat |
| Steering | Tilt & Telescopic, Power Steering |
| Tyres | 11x20, (Nylon, Mining, Radial) |
| Wheel Rims | 7.5x20 (11X20), 8X20 (11R20) |
| Fuel Tank (Liters) | 220 L- Polymer (G WB), 315 L- Metallic (J WB) |
| DEF Tank (Liters) | 33 L (G WB), 50 L (J WB) |
| Battery | 24V:120Ah |
| Wheelbase (mm) | 4000 mm (G WB) / 4585 mm (J WB) |
| Turning Circle Diameter (m) | 14.97 m (G WB), 17.6 m (J WB) |
| Gradeability (%) | 65% @ C-Gear |
| Ground Clearance (mm) | 252 mm |
| Body Variants | CBC, 14CuM Rock, 16CuM Box, 20CuM Box HD |

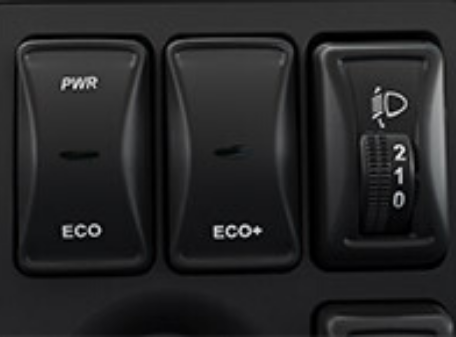

| Standard Features | Hill Start Assist, MBooster+, Cruise Control, My Eicher |
