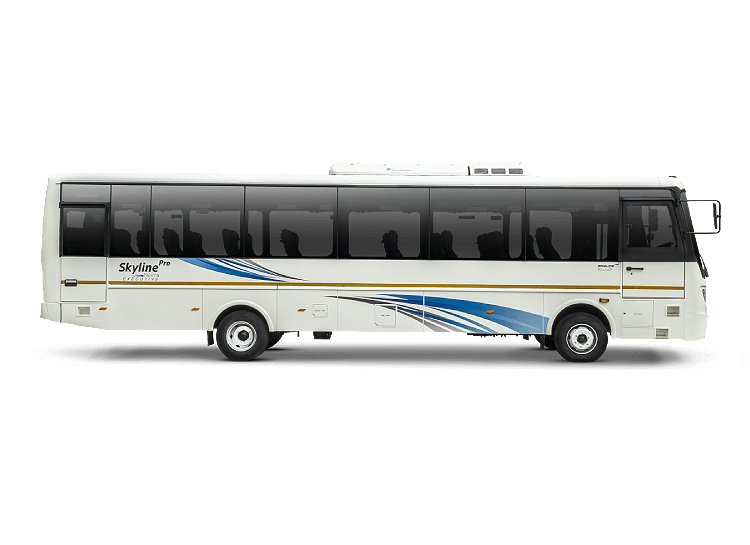

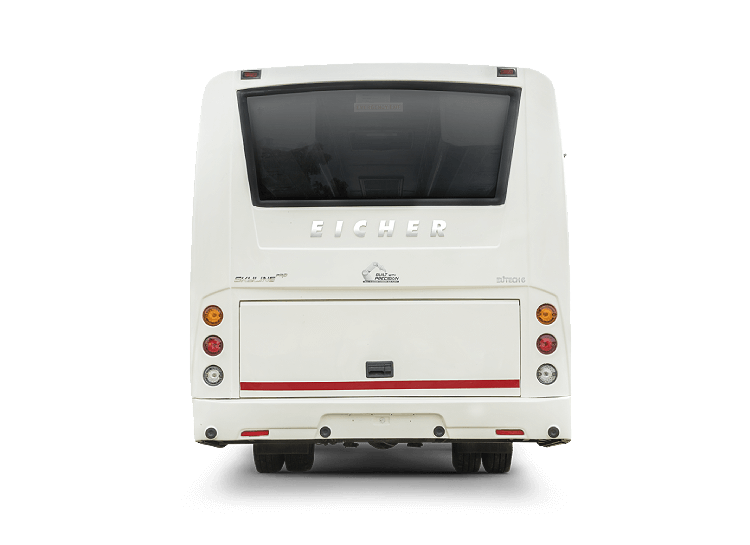

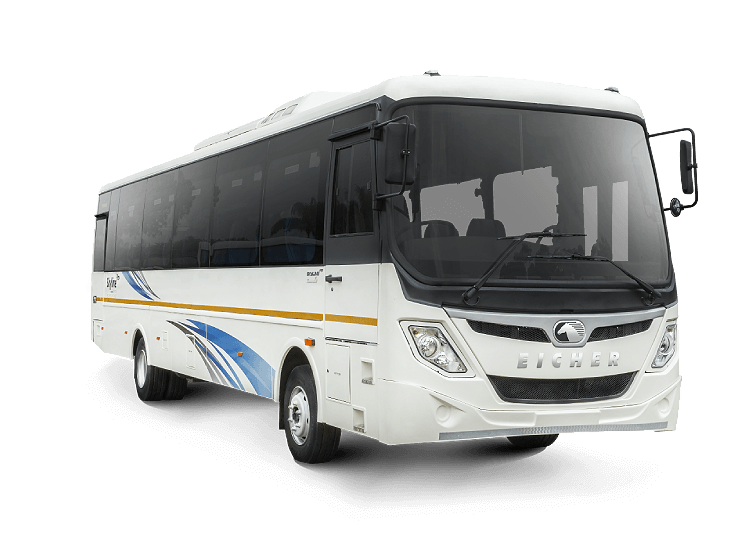

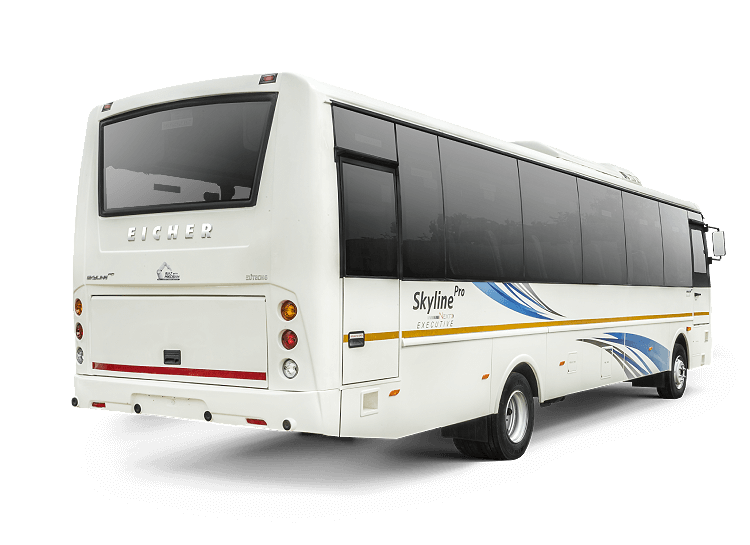

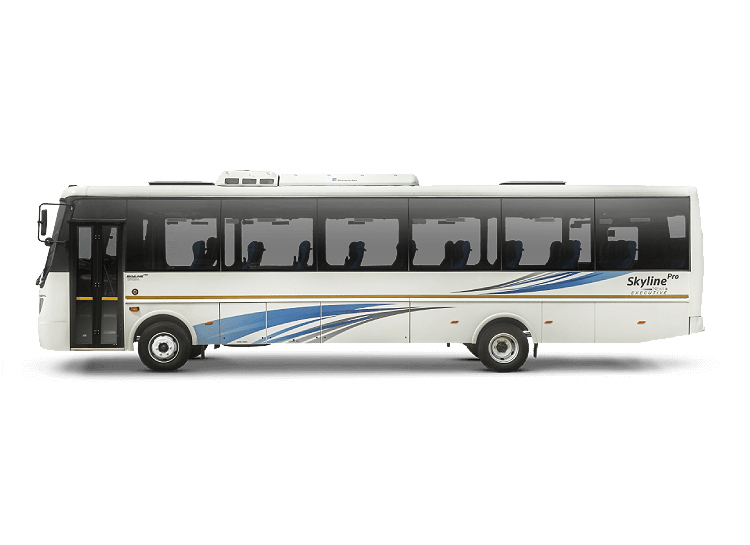

- Exterior

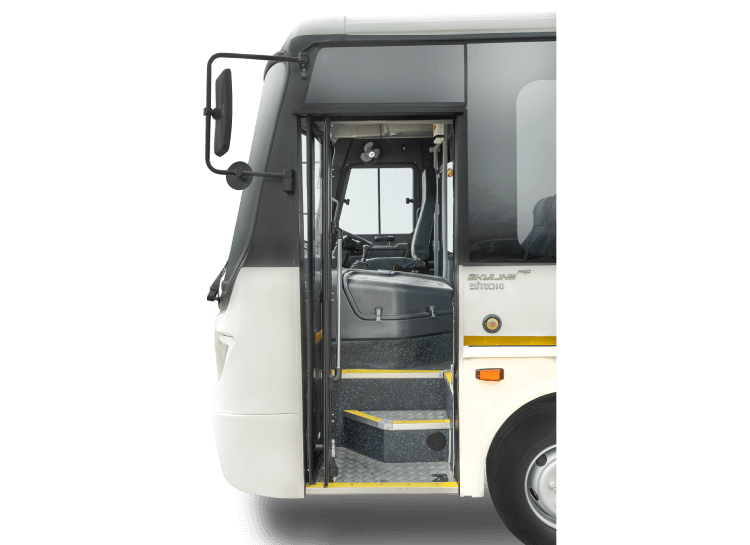

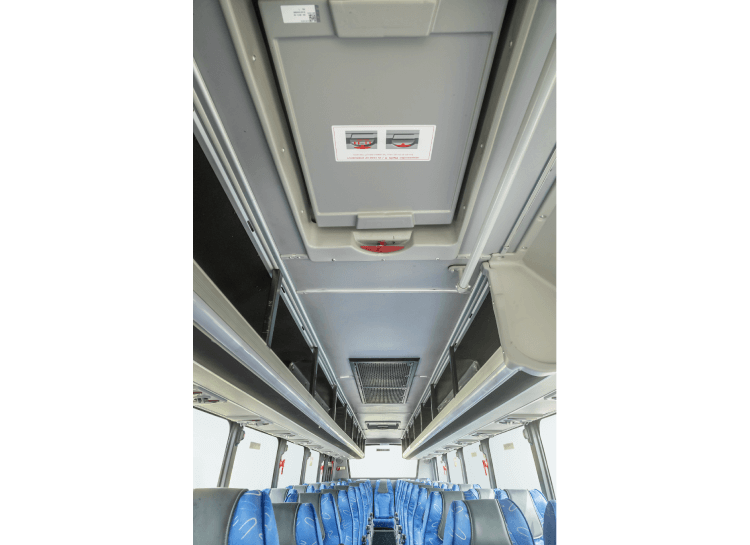

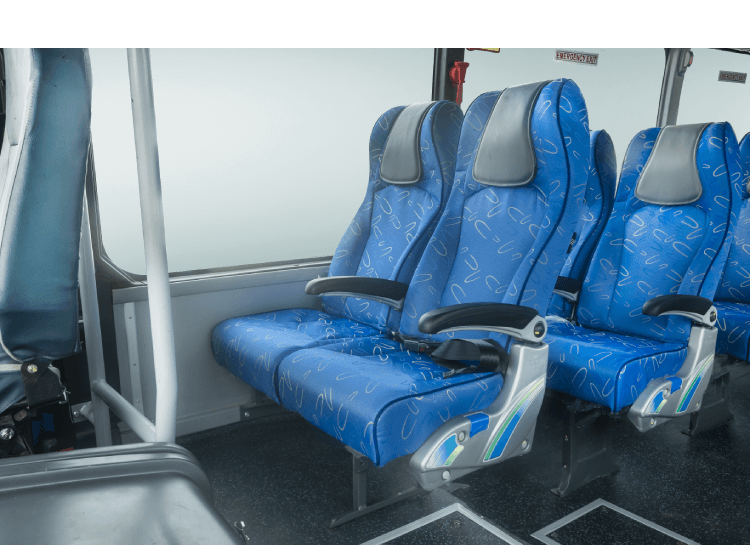

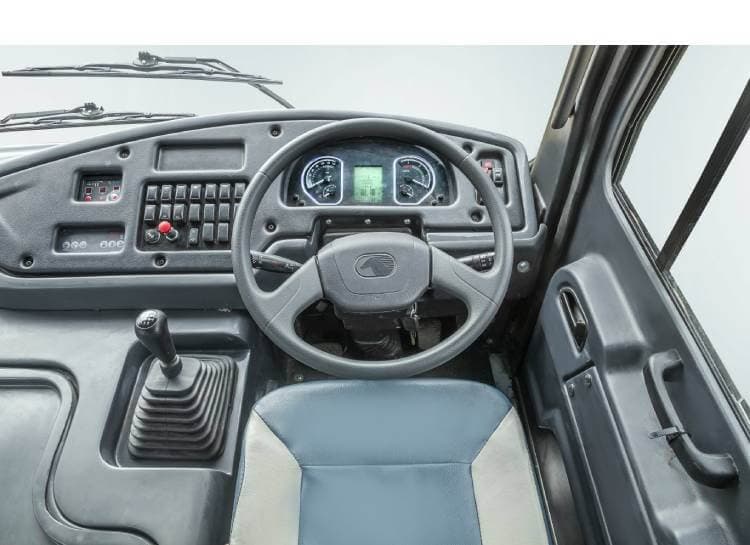

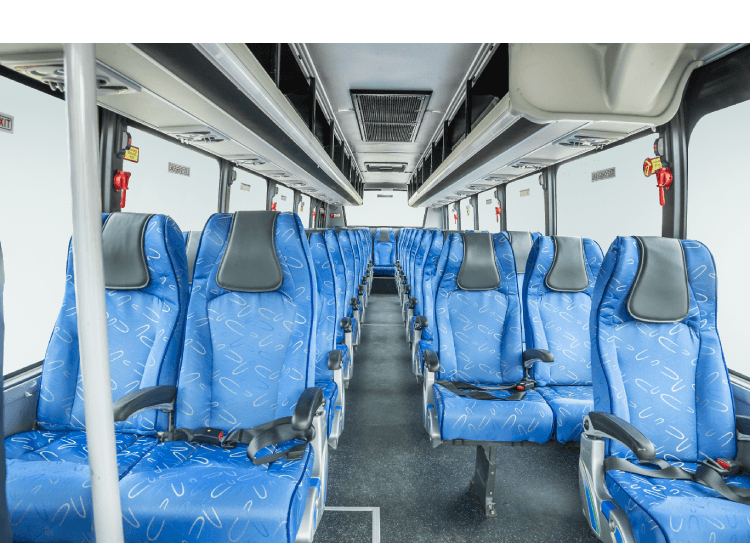

- Interior
Eicher Skyline Pro Next 3009 H CNG AC

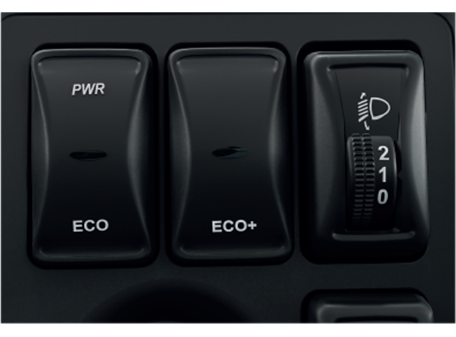

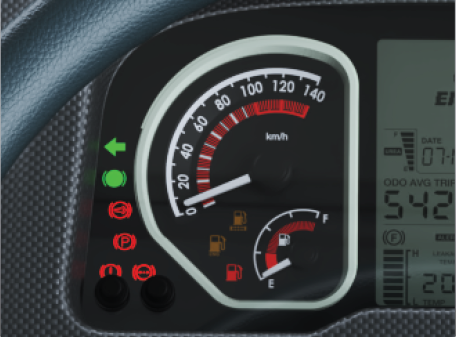

Skyline Next Pro comes with the powerful VEDX5 engine, seamlessly harmonised with Volvo Group’s cutting-edge Engine Management System (EMS). Supported by a high-pressure Denso FIE system and a robust Domex® chassis, it stands out for its dependability within its category. Equipped with advanced features including Cruise Control, Fuel Coaching, Mbooster+, a sophisticated Engine Protection System (EPS), the Skyline Next Pro 3009 H CNG asserts itself as the optimal choice for staff applications.
Seating Capacity32 / 36

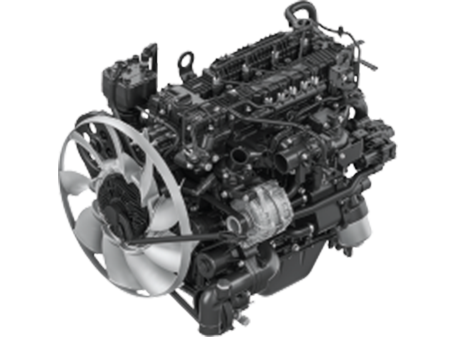

EngineE494 TCIC
Power 100 Kw
Torque450 Nm
Fuel TypeCNG
- Specification
- Technology
| SPECIFICATIONS | Skyline Pro Next 3009 H CNG |
|---|---|
| Model | Skyline Pro Next 3009 H AC |
| Seating Capacity 2X2 | 35+D HHR, 31+1+D PB |
| Wheelbase (mm) | 4320 |
| Overall length (mm) | 8957 |
| Overall width (mm) | 2350 |
| Overall height (mm) | 3145 |
| Front overhang (mm) | 2045 |
| Rear overhang (mm) | 2592 |
| Turning circle diameter (m) | 15.2 |
| Engine | E494 TCIC |
| Displacement (cc) | 3770 |
| Power | 100 kW @ 2400 rpm |
| Torque | 450 Nm @ 1400 – 2000 rpm |
| Clutch diameter (mm) | 330 |
| Transmission | ET40S6 |
| Transmission type | Synchromesh (6-SPeed+1-Rev) |
| GVW (Tonne) | 10.2 |
| Chassis frame | Domex® 650 |
| Chassis dimensions (mm) | 210X76X6 |
| Cylinder Capacity (litre) | 440 |
| Brakes | Dual circuit 'S' cam full air brakes |
| Tyres | 235/75 R17.5-14 PR (Radial tubeless) |
| Suspension - front | Parabolic with ARB |
| Suspension - rear | Parabolic |
| Steering | Power steering |
| Battery | 2 x 12V, 130Ah |
| Alternator | 2 x 110A |
