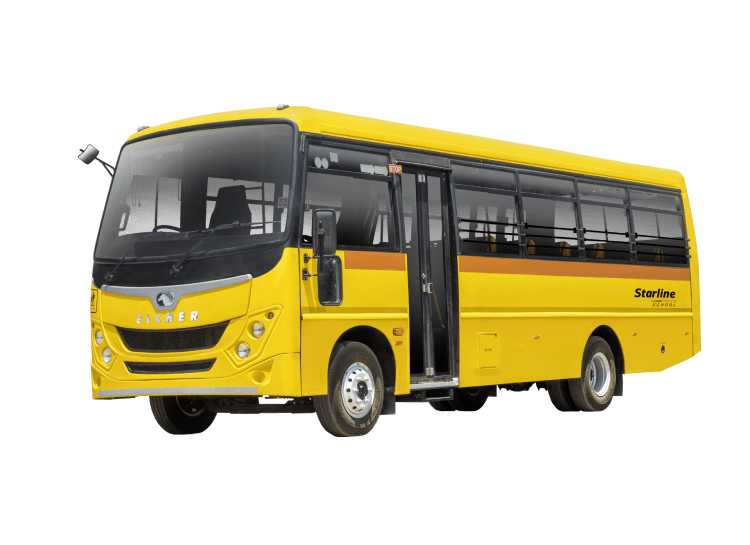

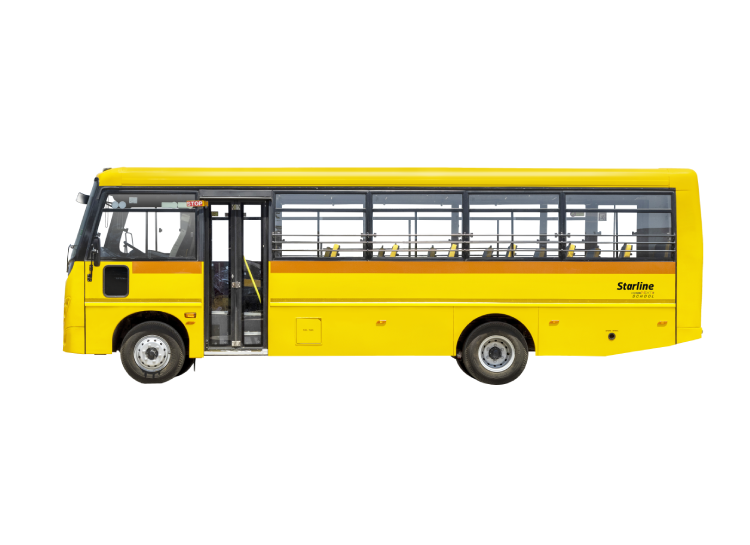

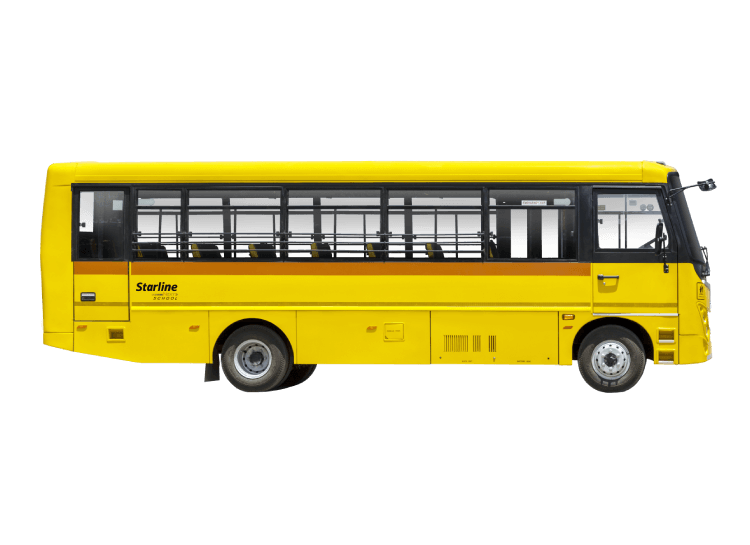

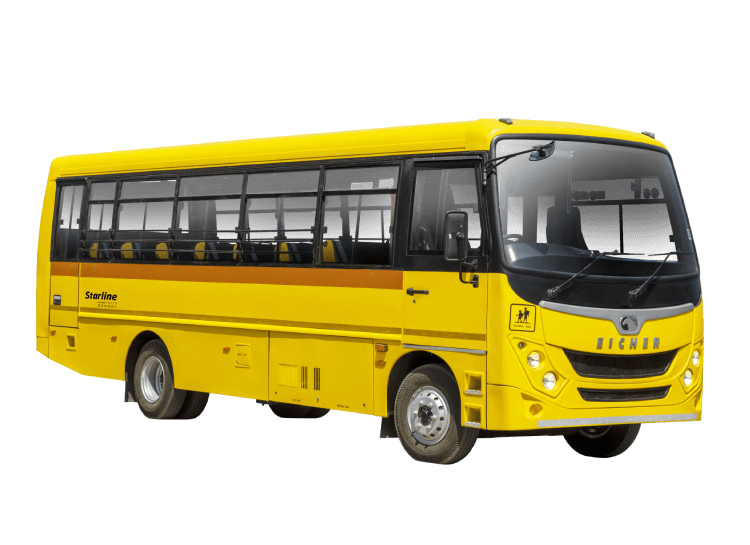

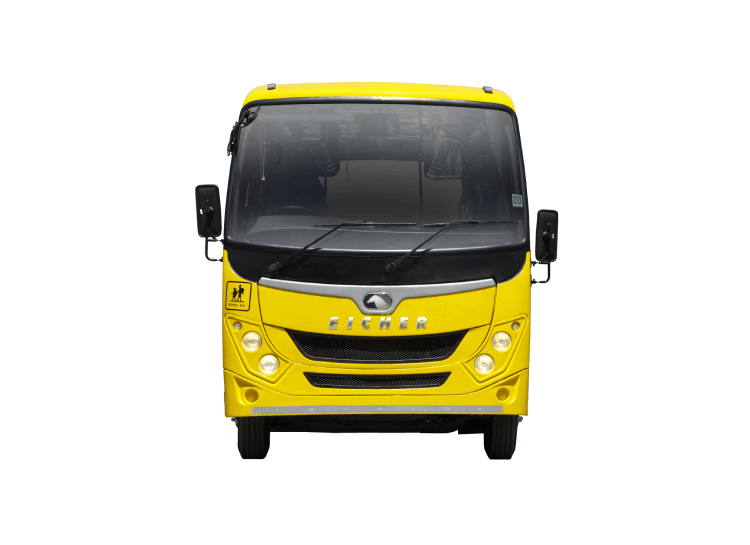

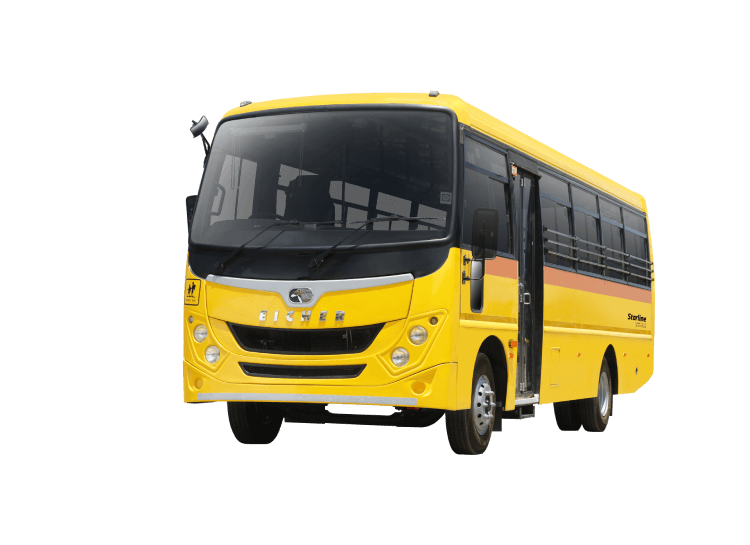

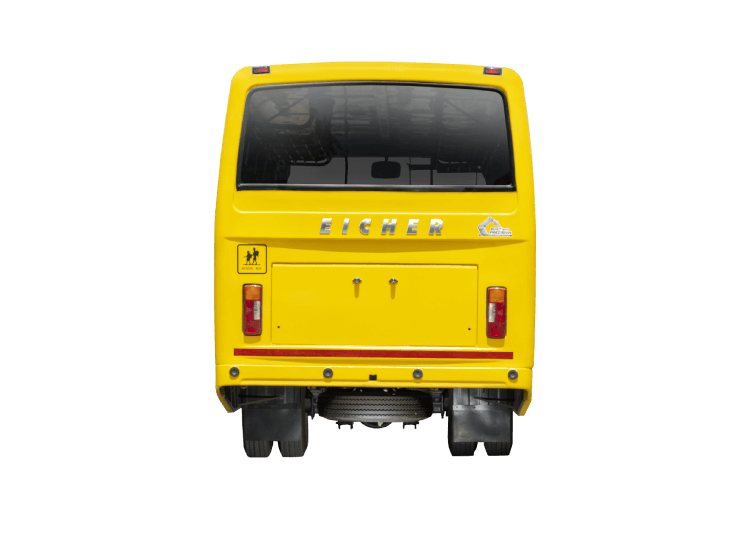

- Exterior

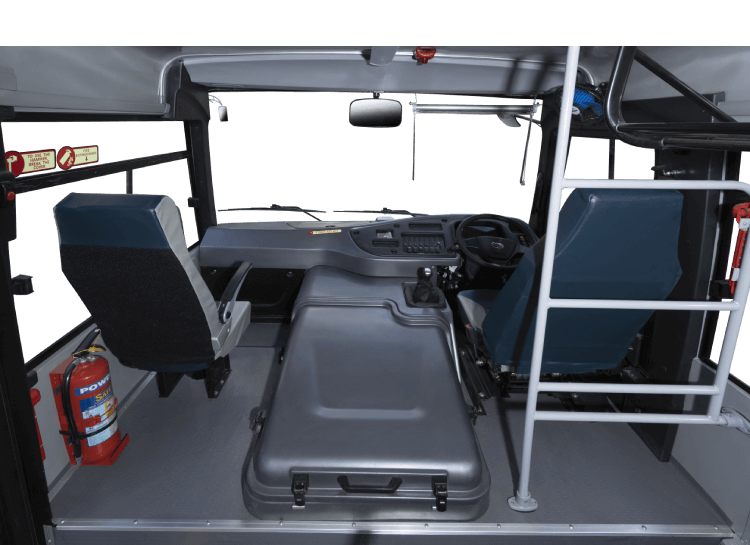

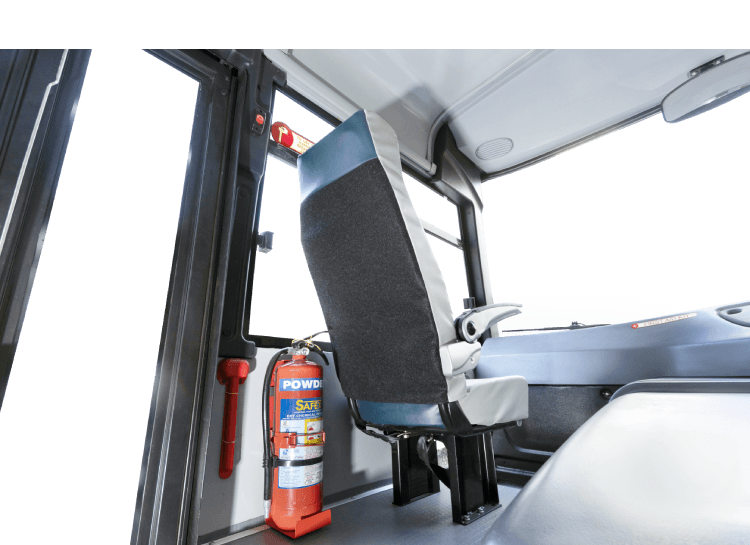

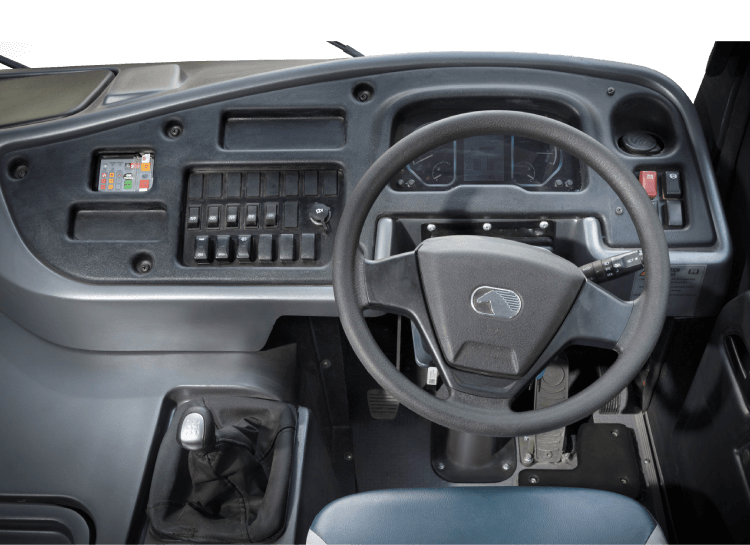

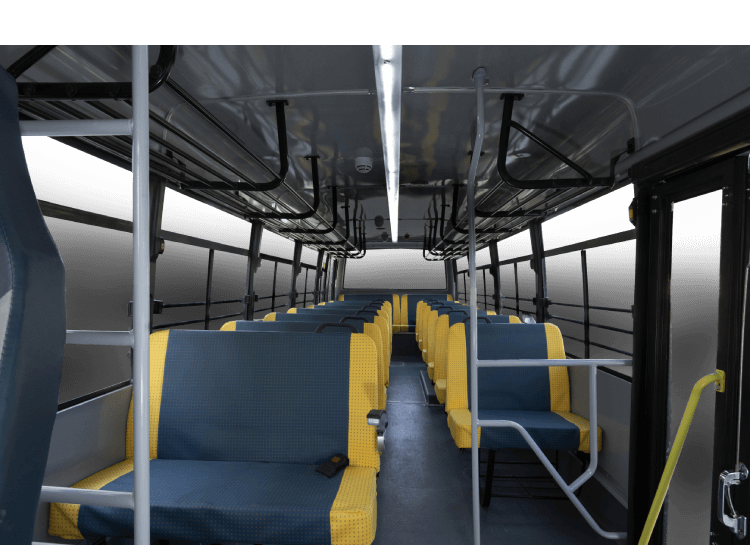

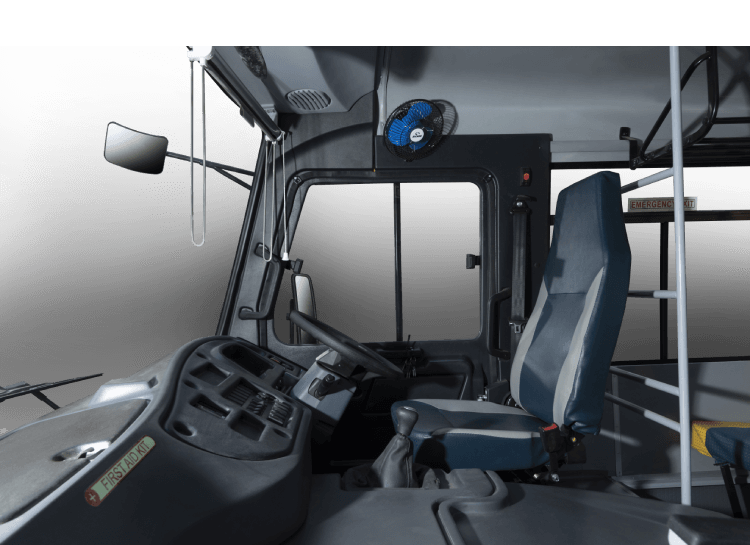

- Interior
Eicher Starline Next 2090 K AC
The all new Starline Next is designed to deliver best in class operating economics with higher safety and comfort for the young leaders. Superior fuel efficiency coupled with lower maintenance costs leads to high profitability. The modern driveline is complemented by contemporary design by way of uni-tone front Pegasus looks and refreshed interiors.
Seating Capacity39/47

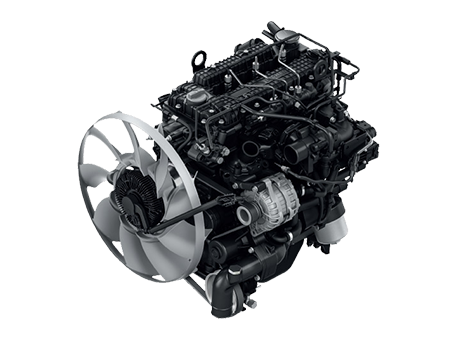

EngineE474
Power 105 kW
Torque400 Nm
Fuel TypeDiesel
- Specification

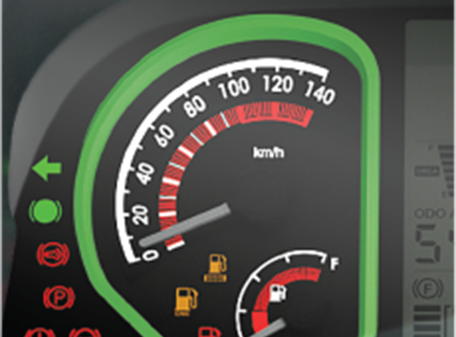

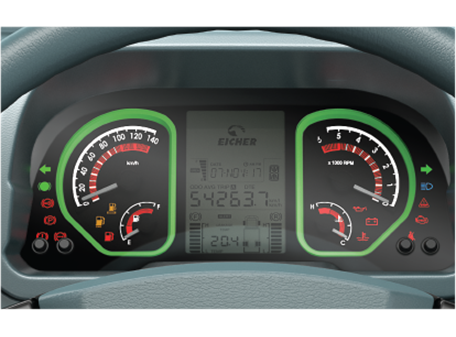

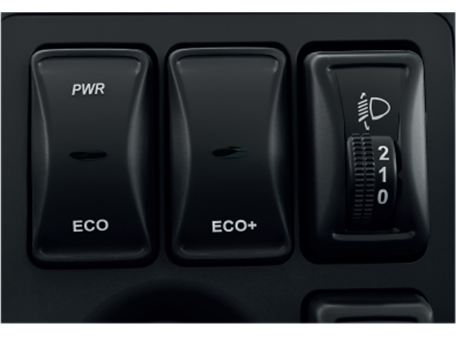

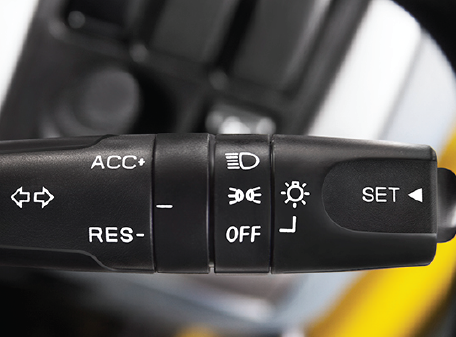

- Technology
| SPECIFICATIONS | School Starline Next 2090 K |
|---|---|
| Model | 2090 K AC |
| Seating Capacity 2X2 | 37+CD+D |
| Seating Capacity 3X2 | 45 +CD+D |
| Wheelbase (mm) | 4820 |
| Overall length (mm) | 8910 |
| Overall width (mm) | 2164 |
| Overall height (mm) | 3070 |
| Front overhang (mm) | 1200 |
| Rear overhang (mm) | 2890 |
| Turning circle diameter (m) | 17.9 |
| Enginemake | E474 |
| Displacement (cc) | 2960 |
| Power | 105 kW @ 3200 rpm |
| Torque | 400 Nm @ 1250 – 2500 rpm |
| Clutch diameter (mm) | 310 |
| Transmission | ET35S5 |
| Transmission type | Synchromesh (5-SPeed+1Rev) |
| GVW (Tonne) | 8.6 |
| Chassis frame | Domex® 650 |
| Chassis dimensions (mm) | 200X65X5 |
| Fuel tank capacity (litre) | 100 |
| Brakes | Air Drum Brakes |
| Tyres | 8.25 X 16 -16 PR |
| Suspension - front | Semi elliptical |
| Suspension - rear | Semi elliptical |
| Steering | Power steering |
| Battery | 12V, 130Ah |
| Alternator | 2 x 110A |
| Floor type | Button Vinyl |
| DEF tank capacity (litre) | 27 |
