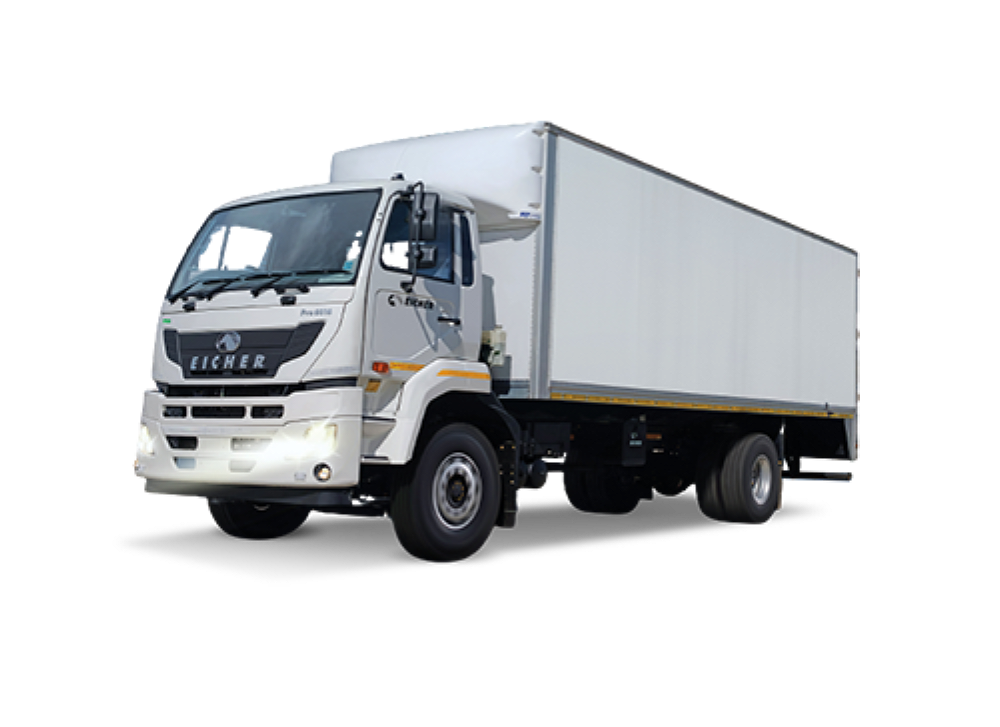

EICHER Pro 6016

Eicher Pro 6016 is the new generation 16 ton GVW truck equipped with highly fuel efficient 4 cylinder 4 valve engine built on a global platform and a new generation cabin with host of safety and comfort features.

GVW 16 Ton
Engine5.1 Litre
Power 210 HP
Torque825 Nm
Transmission 6 Speed
Cargo body length24ft
  • Specifications
  • Benefits
  • Technology
  • Applications

SPECIFICATIONS Pro 6016
GVW(Kg) 16000 kgs
Wheel Base (mm) 5340
Front OverHang (mm) 1423
Rear Overhang (mm) 2824
Cabin Width (mm)32300
TCD (M) 18
Ground Clearance 230
Engine Type VEDX5, 4 Valve, 4 cylinder EuroIII
Max Power  210 hp @ 2200 rpm
Max Torque 825 Nm @1200-1600 rpm
Clutch Type  Spring Loaded push type
Clutch Diameter(mm)  395
Gearbox ET70S6, 6 Forward & 1 Reverse
Chassis Type Joggled frame with 285 x 76 x 7 mm
Suspension   Front: Semi elliptical laminated leaf springs with double acting telescopic shock absorbers
Rear: Semi elliptical laminated leaf spring
Steering Tilt and Telescopic hyadraulic power steering
Fuel Tank  220 ltrs
Electrical   24 V, 150Ah
Tyre  80R22.5-16PR Tubeless Radial
Maximum Speed(Kmph)  110
Gradiability  34.50%
Varients  CWC, CBC, FSD, HSD

Faster turn around time

Optimized maintenance cost

High reliability and durability

VEDX5 4 cylinder BSIII Engine with Volvo group engine management system

Intelligent driver information system

Reefer

Cement

Market Load
