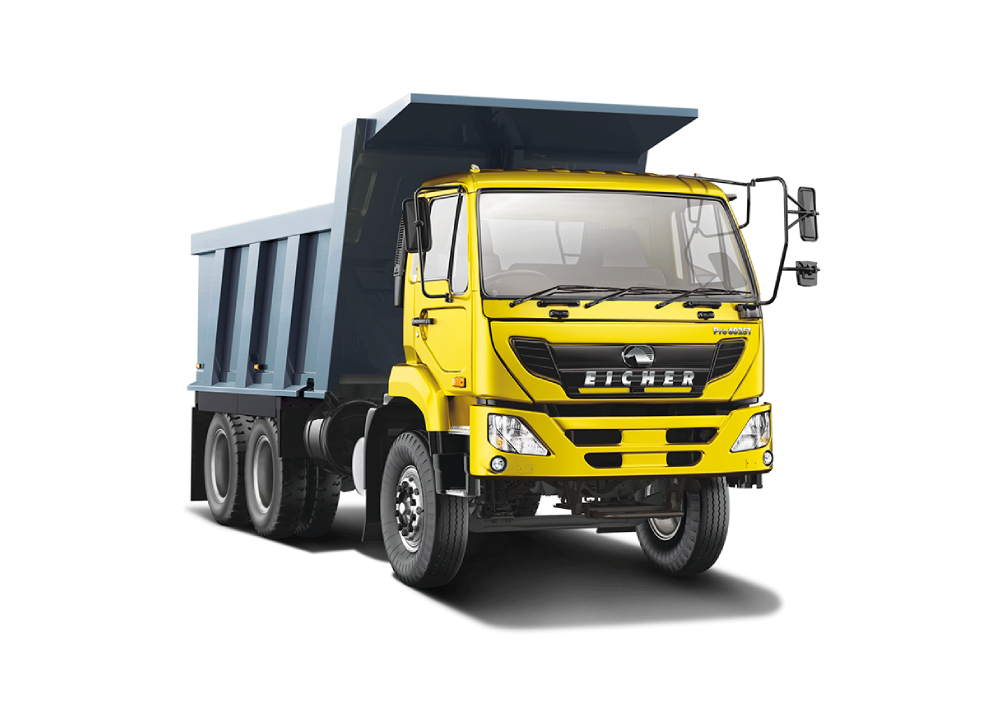

EICHER Pro 6025T

Eicher Pro 6025T is the new generation 25 ton GVW tipper equipped with highly fuel efficient VEDX8, 6 cylinder,7.7 litre CRS engine designed in association with Volvo Group and a Next Gen cabin with state of art features.

GVW25000 kg
EngineVEDX8 BSIII 7.7 liters
Power220 hp
Torque850 Nm
Transmission ZF 9S1110
Body Size/Type14/16
  • Specifications
  • Benefits
  • Technology
GVW 25000 kg
Engine Type VEDX8 BSIII 7.7 litres
Max Power 220 hp @ 2200 rpm
Max Torque 850 Nm @1100-1700 rpm
Clutch Type Booster assisted pull type
Clutch Diameter 430 mm
Gearbox ZF make, 9 Forward 1 Reverse
Rear Axle Meritor Tandem-Fully floating Banjo
Final Drive Ratio 5.29
Chassis Type Domex 650 ladder type joggle frame, 285 x 76 x 7 mm
Suspension Front: Semi-Elliptical with anti roll bar
Rear: Bogie suspension
Shock Absorbers Hydraulic Double Acting Telescopic type at front only
Steering Tilt and Telescopic hyadraulic power steering
Wheelbase 4000 mm
Body Size 16 Cum Box
Gradiability(%) 42.5%
Max Speed 79.6 kmph
Fuel Tank 220 litres
Turning Circle Diameter 14.5 m
Electrical 2 x24 V, 150 Ah
Tyre 11x20 cross ply

high reliablity and durablity

optimized maintenance cost

superior uptime

fast turn around time

high fuel efficiency

unmatch cabin comfort

best in class torque at wheel

Cruise Control

fuel coaching

Domex chassis with higher tensile strength

Intelligent driver information system
