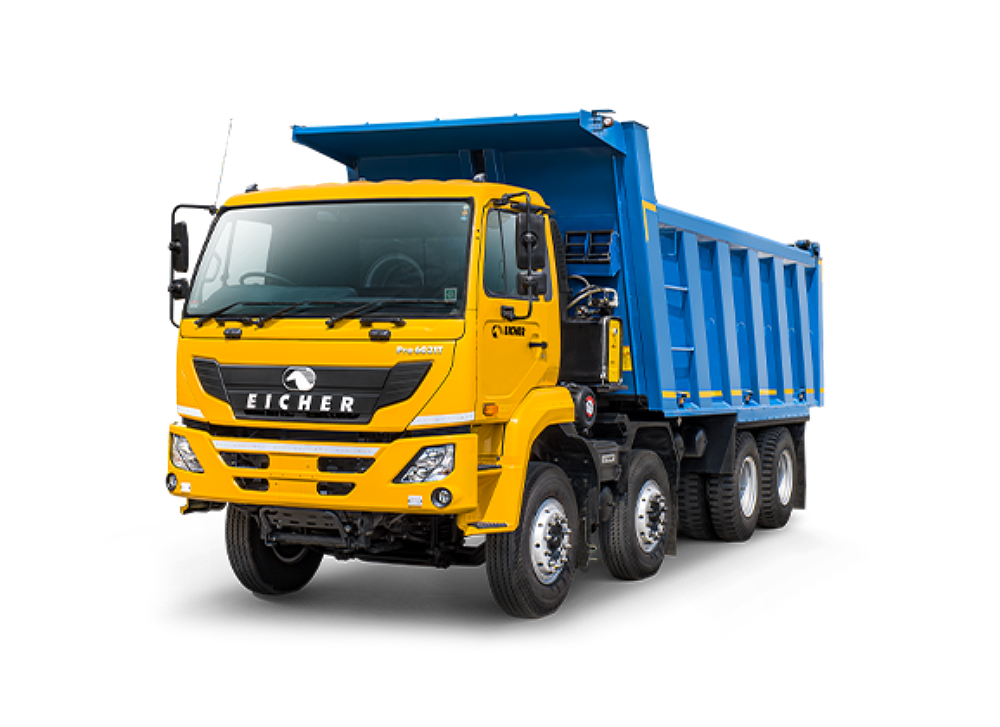

EicherPro 6031T
The next generation 31 ton GVW tipper targeting application like aggregate transport, earthwork, coal, limestone, etc.. It is built on the philosophy 'Do More' and deliver superior performance, reliability, higher productivity & greater revenue.
GVW31000 Kg
EngineVEDX8
Power280 HP
Torque1050 Nm
Transmission ET140S9
Cargo body type20/ 23 Cum
| Features | Eicher Pro 6031T |
|---|---|
| GVW(Kg) | 31000 |
| Wheelbase(mm) | 5285 |
| Front overhang (mm) | 1430 |
| Rear Overhang (mm) | 1498 |
| Engine Type | MDEP8 BS3 |
| Max Power | 280 HP @ 2200 RPM |
| Max Torque | 1050Nm @ 1000-1800 RPM |
| Clutch Type | Pull type, Booster actuated |
| Clutch Diameter (mm) | 430 |
| Gearbox | ET140S9 |
| Rear Axle | VECV Tander, 440 SRT |
| Final Drive Ratio | 5.286 |
| Chassis Type | Rolled C-Channel joggle type |
| Suspension | F- Parabolic silent suspension with ARB, Double acting telescopic FR shock absorber, threaded bush R- Bogie suspension |
| Steering | Power steering |
| Cargo Body Type (CuM) | 20/ 23 |
| Gradiability(%) | 47 |
| Max Speed (kmph) | 90 |
| Fuel Tank (L) | 315 |
| Electrical | 2 x 12V - 120 Ah |
| Tyre | Front: 11x20- Cross ply RIB type Rear: 11x20- Cross ply LUG type |
BLUE METAL
ROAD CONSTRUCTION
SAND
STONE
BEST IN CLASS TORQUE AT WHEEL
HIGH RELIABILITY AND DURABILITY
OPTIMIZED MAINTENANCE COST
SUPERIOR UPTIME
FASTER TURNAROUND TIME
HIGH FUEL EFFICIENCY
