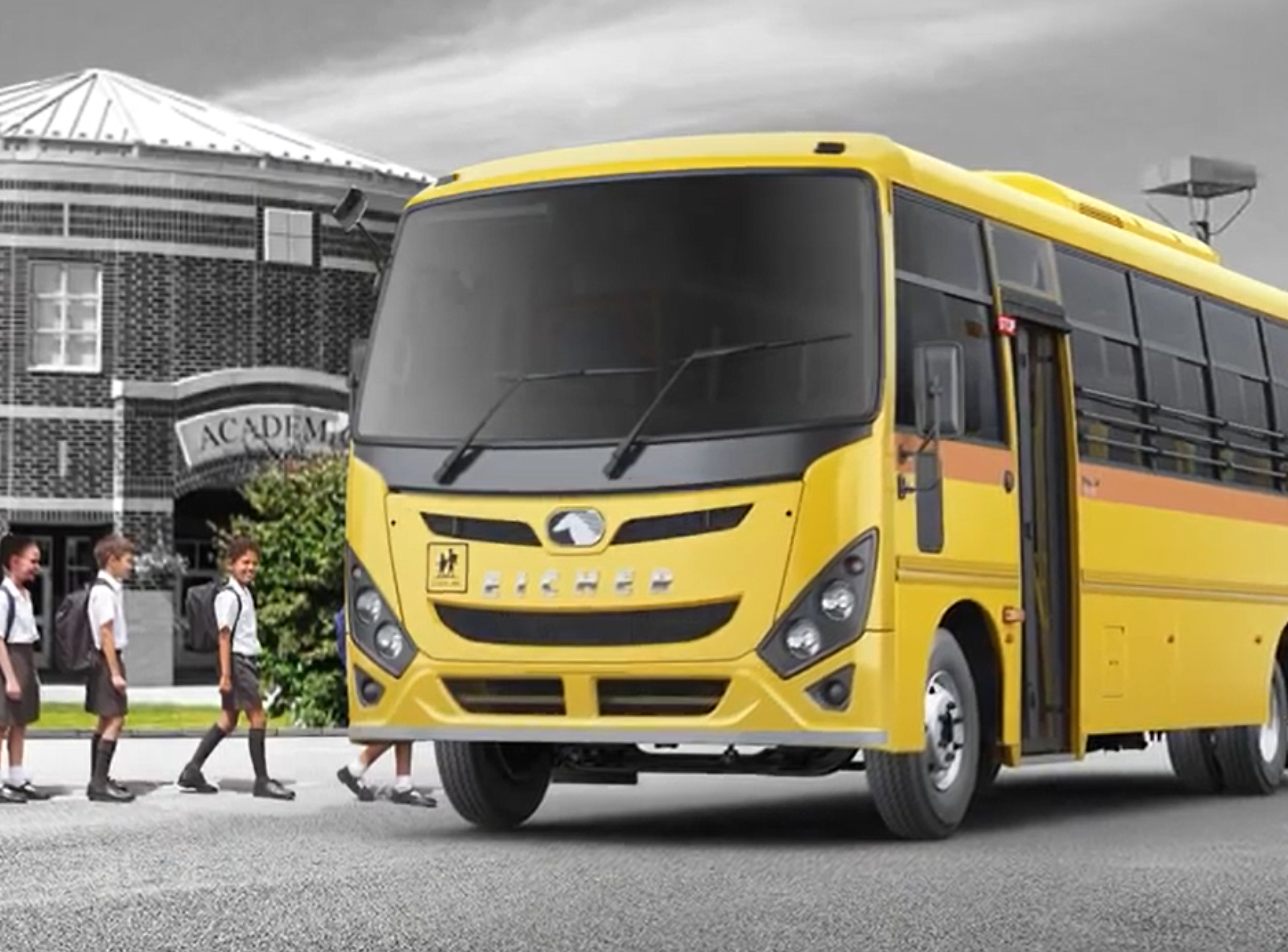

10.90 L Bus Chassis

Another outperformer from the fleet of Eicher, the Eicher 10.90 L is a fuel efficient and powerful bus chassis that is known for delivering excellence and finesse, The model has an overall length of 9045 mm and a wheel base of 5165 mm.

Max power & torque optimised FE
Improved transmission with clutch booster
Higher capacity battery and alternator
Best in class driver comfort
Eicher E483, TCI BSIII Engine 94 HP, 285 Nm Torque
Tourist
School Bus
Route Permit

SPECIFICATIONS

Parameters Value
Engine Model E483 TCI BSIII
Engine Capacity 3298 cc
Max. Engine Output BSIII-70kw (94HP) 3200 rpnm
Max. Torque BSIII - 285Nm@1440rpm
Gear Box Model ET 35
Gearbox Type Eicher ET35S5 93 CD, 5 Forward &1 Reverse
Gear Box Type Synchromesh
No. of Gears 5 forward & 1 reverse
Gear Ratio Fwd - 7.11 /3.6 / 2.22 / 1.34 / 1.00, Rev-7.11
Front Axle Heavy duty forged I beam reverse Elliot type
Rear Axle Fully Floating
GSL type Cable
Gradeability (%) 22.00
Turning Radius (mm) 8600
Ground Clearance (mm) 210
Clutch Single plate, dry type with clutch booster
Diameter (mm) 310
Steering Tilt and Telescopic with Power
Chassis Dimension Straight frame chassis 210 X 65 X 6 mm
Suspension Semi-elliptical leaf spring at front and rear
Brakes 8.25 X 16 - 16PR
Battery 12V - 15OAh
Alternator 75 Amps
Fuel Tank (lts.) 100
Wheelbase (mm) 5165
ROH (mm) 2875
FOM (mmo 1005
Overall Length (mm) 9045 (29.6ft)
Overall Width (mm) 2164
GVW (kg) 8850
