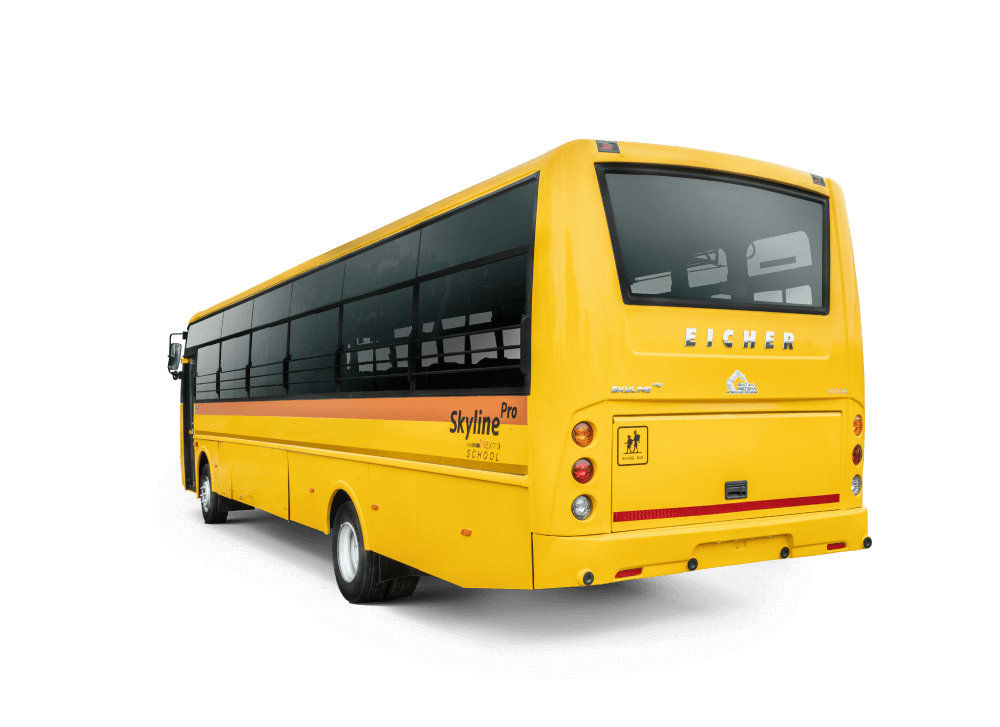

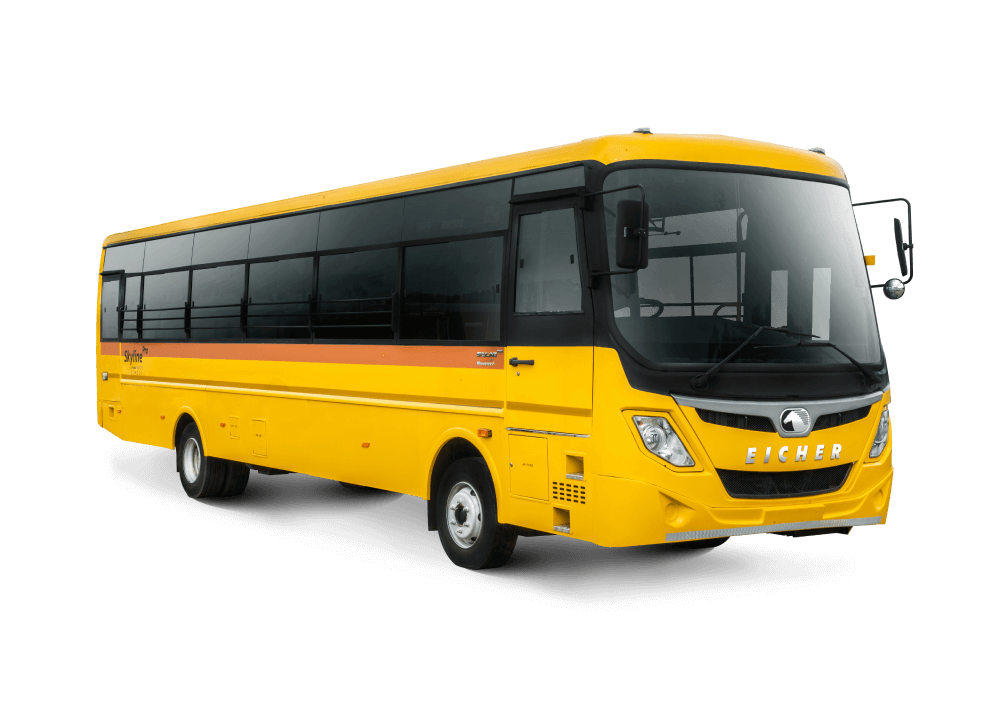

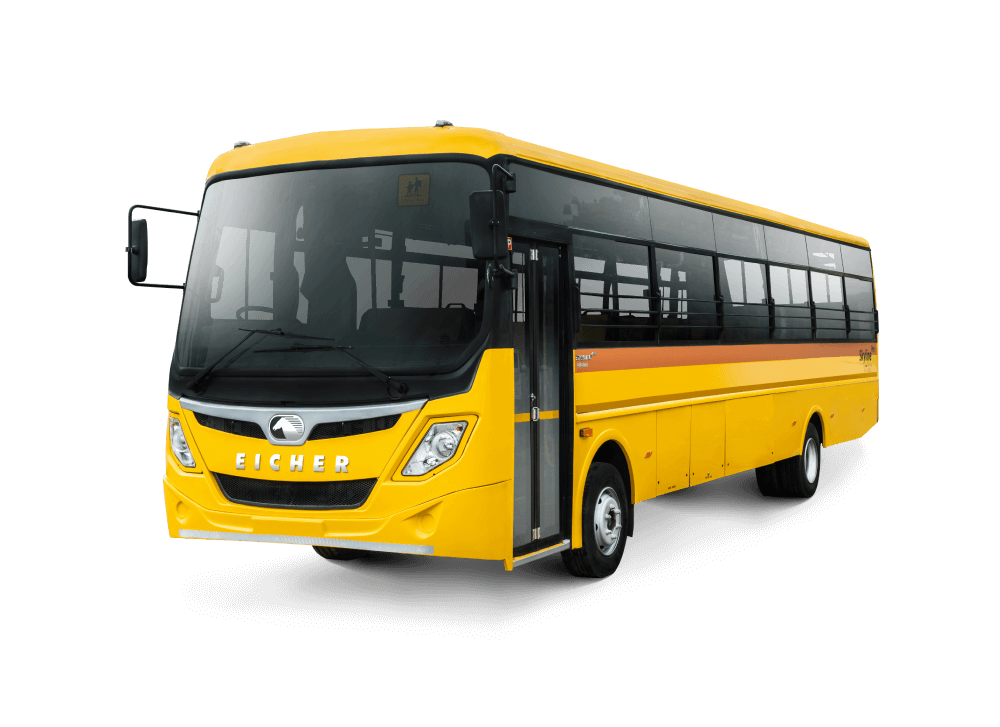

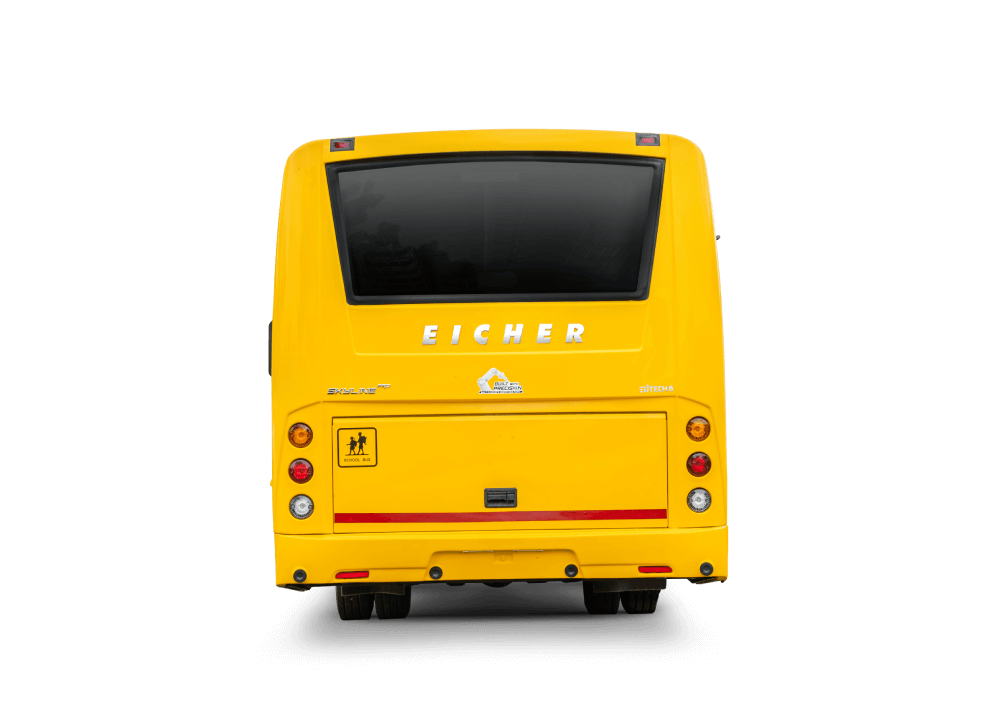

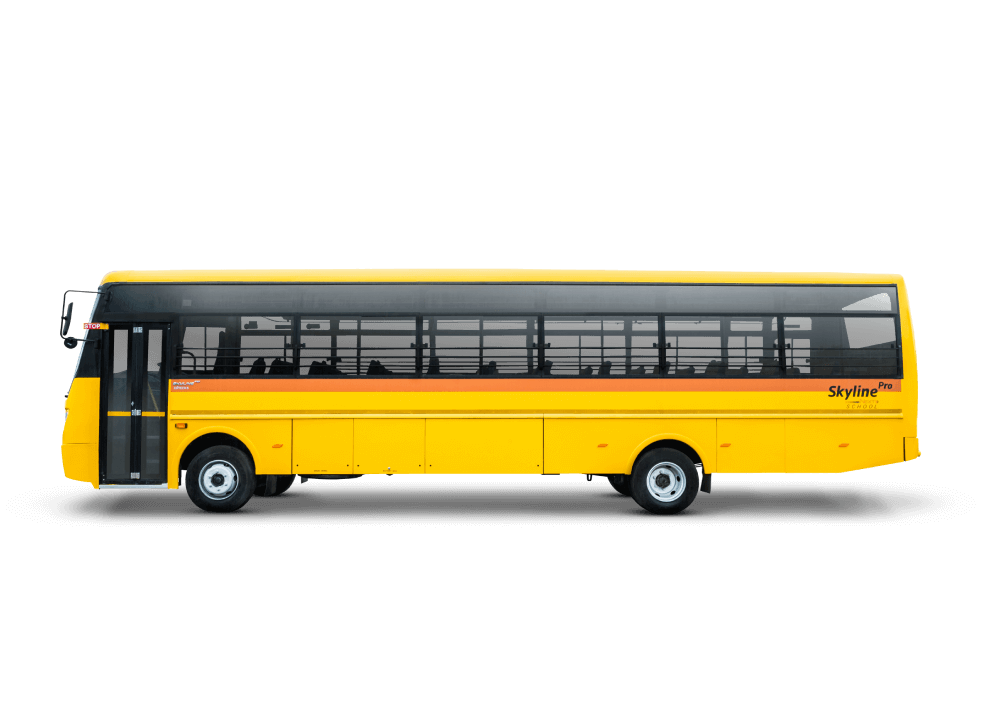

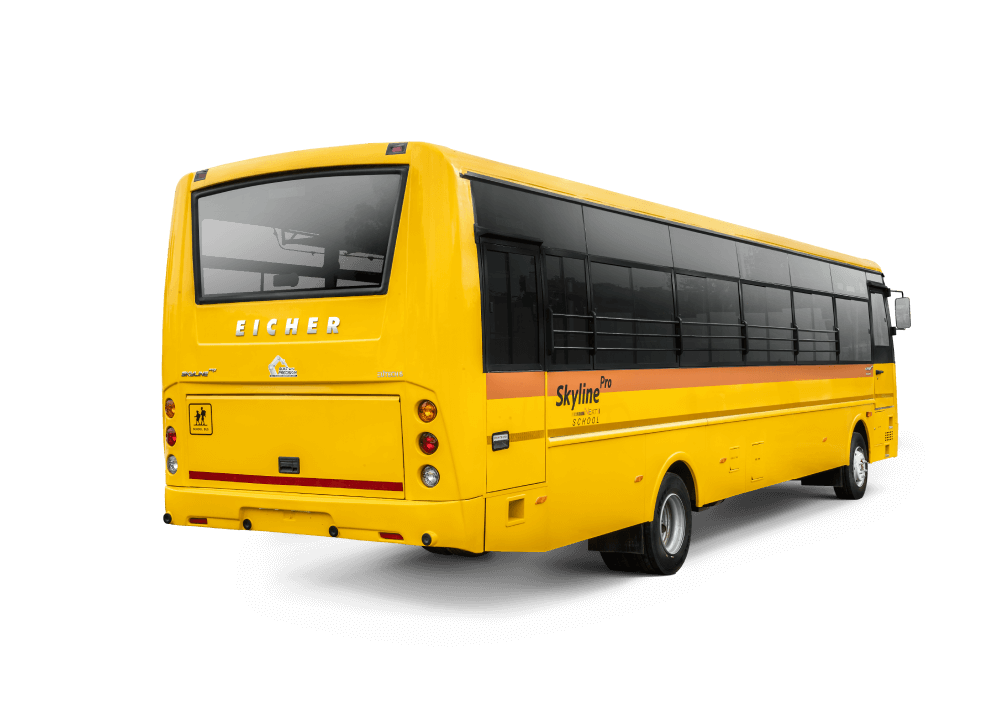

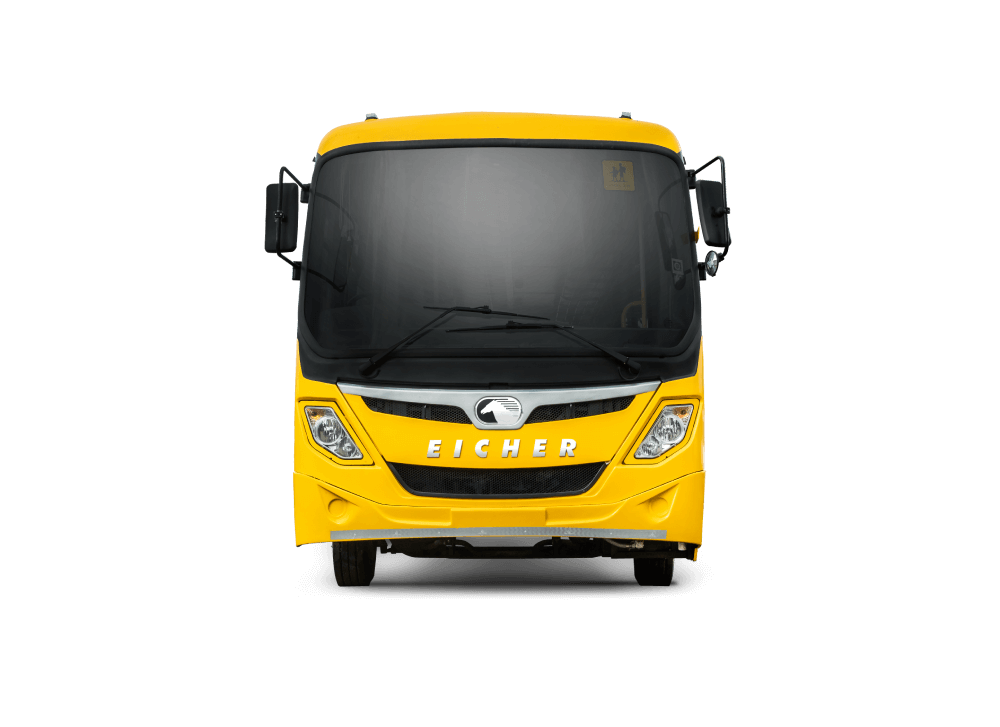

Eicher Skyline Pro 3009 H

The new Skyline Pro is the premium range of Eicher School buses built on the reliable 3000 series platform. Comfort and safety are the hallmark of the Pro range. The new E494 Engine gives a definitive edge to Skyline Pro to deliver a premium journey experience every time. Industry leading safety features like FDSS, seat belts and antiroll bar ensure a cocoon of passenger safety.

  • Seating Capacity
    Seating Capacity53
  • Engine
    EngineE494
  • Power
    Power 120 kW
  • Torque
    Torque500 Nm
  • Fuel Type
    Fuel TypeDiesel
SPECIFICATIONS Pro 3009 H

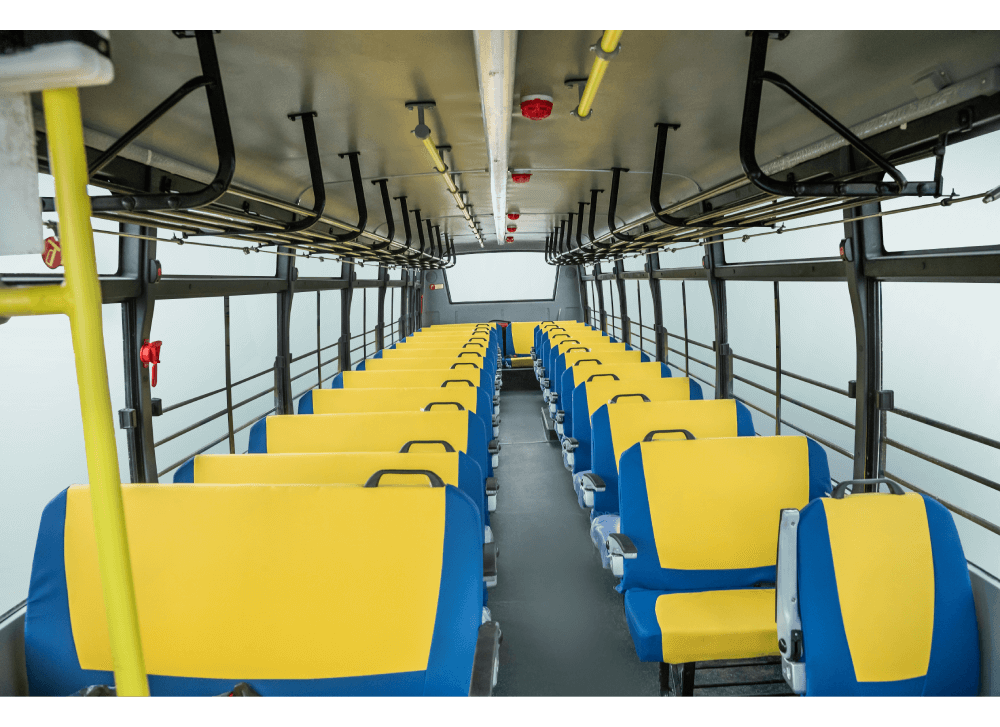

Seating capacity (3x2) 52+D

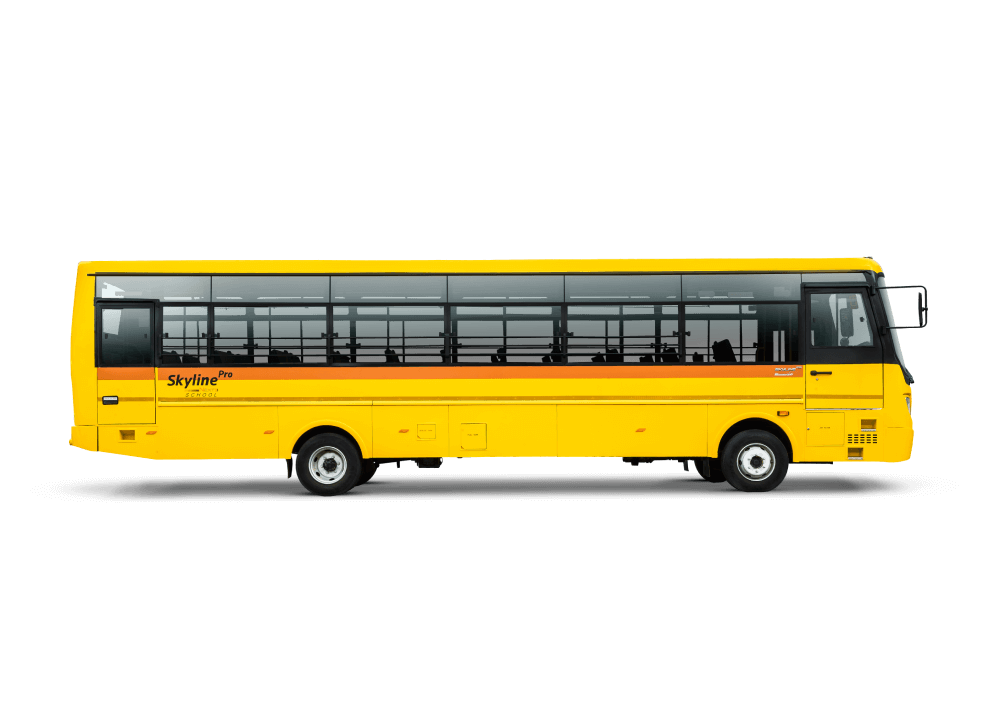

Wheelbase 4320 mm
Overall length 8957 mm
Overall width 2350 mm
Overall height 2893 mm
Front overhang 2045 mm
Rear overhang 3134 mm
Turning circle diameter 15.2 m
Engine  E494
Displacement (cc) 3770
Power 120 kW @ 2600 Rpm
Torque  500 Nm @ 1200-1800 Rpm
Clutch diameter 330 mm
Transmission ET40S6
Transmission type  Synchromesh (6 Speed + 1 Rev)
GVW 9.8 t
Chassis frame  Domex® 650
Chassis C frame dimensions    210 X 76 X 6 mm
Fuel tank capacity 100 litres
Brakes  Dual circuit 'S' cam full air brakes
Tyres 235/75 R17 Tubeless
Suspension - front Parabolic with anti-roll bar
Suspension - rear Parabolic
Steering   Power steering
Battery  12V 130Ah
Alternator 110A
Floor type Silicon embedded vinyl
DEF tank capacity 27 litres
Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

MBooster+

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Improved Engine Power

The modernized Eicher 494 engine platform has a dynamic performance that is well suited for any application

Eicher Live

An innovative and intelligent telematics system, Eicher Live facilitates in keeping a track of fuel consumption, maintenance needs, and monitoring the movement of buses.

IDIS

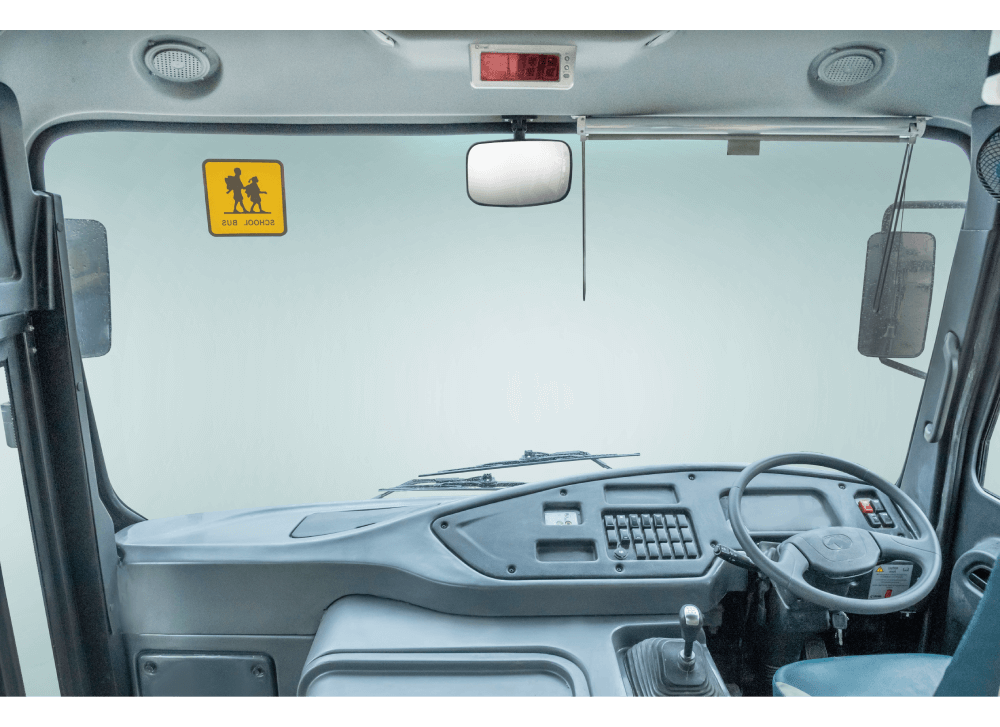

Intelligent Driver Information System keeps you aware of all the runtime information of the bus
