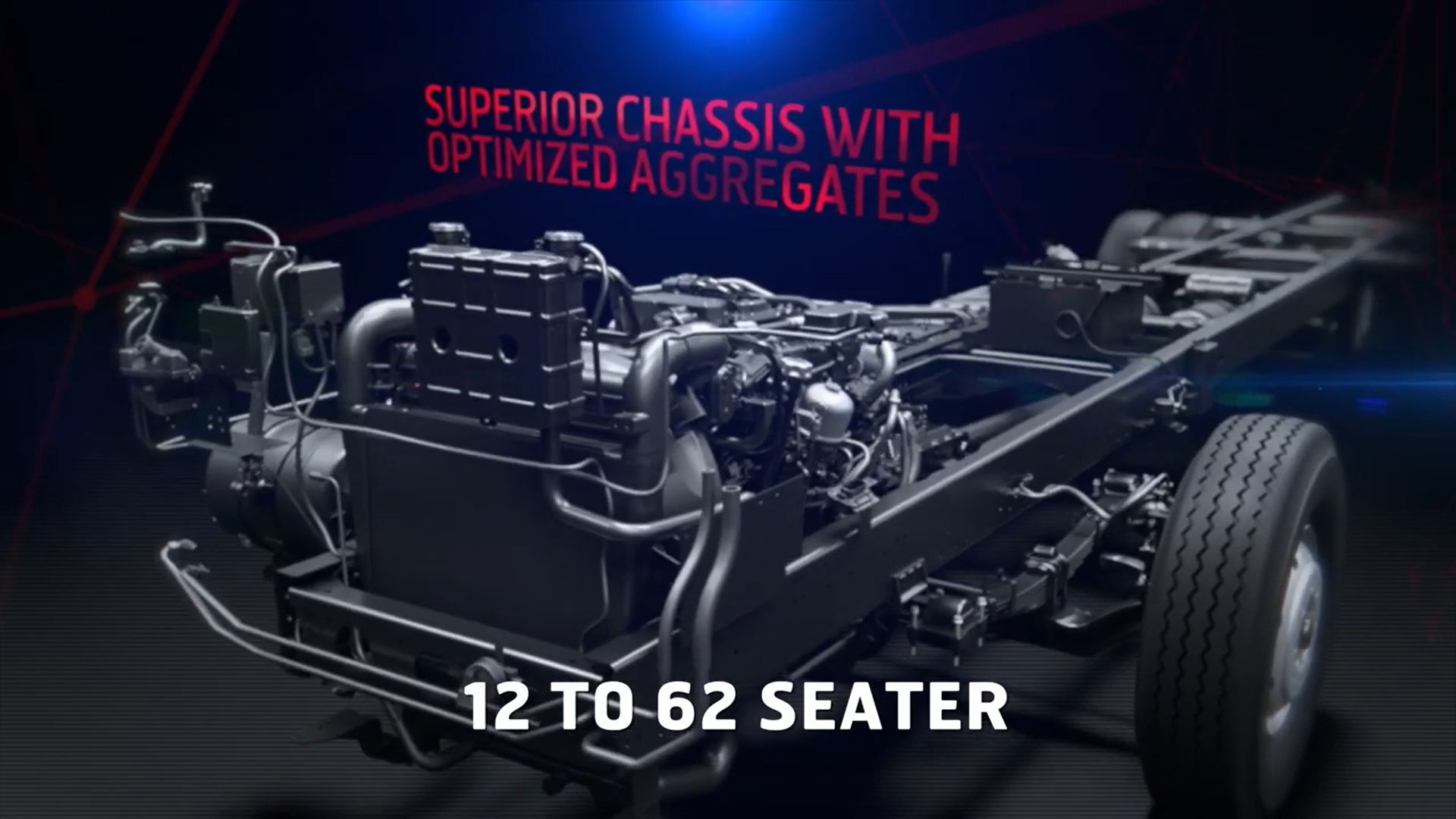

EICHER 2090 L Chassis

The all-new 2000 series chassis is designed to deliver best in class operating economics and superior on road performance, coupled with a lower maintenance costs leading to high profitability for its owners. Powered by advanced new E474 engine, Eicher chassis is smartly designed to deliver powerful performance without compromising on fuel efficiency.

GVW9.8
EngineE474
Power140 HP
Torque400 Nm
Fuel TypeDiesel
  • Specifications
  • Benefits
  • Technology

SPECIFICATIONS 2090 L
Wheelbase (mm) 5240
Overall Length (mm) 9284
Overall Width (mm) 1990
Overall Height (mm) 2511
Ground Clearance (mm)187
Front Overhang (mm) 1024
Rear Overhang (mm) 3020
Turning Circle Diameter (m) 19.4
Engine Make  E474
Displacement (cc) 2960
Power  140hp (105kW) @ 3200rpm
Torque  400Nm @ 1200-2500rpm
Clutch (mm) 310
Transmission Make ET35S5
Transmission Type  Synchromesh (6SPeed+1Rev)
GVW (Tonnes) 9.8
Chassis Type  Domex 650
Chassis dimension (mm) 200X75X5
Fuel Tank Capacity (l) 160
Brakes  Dual Circuit 'S' Cam Full Air brakes
Tyres 8.25x16 - 16 PR
Suspension Semi elliptic
Steering  Power steering
Battery  12V, 130Ah
Alternator  110A
DEF Tank Capacity (l)19

Next Gen Features

New Three spoke easy to adjust steering wheel, new instrument cluster with intelligent display for better drive aids, mileage enhancing Cruise control are some of the latest featur

Long lasting Durability

A complete peace of mind through stronger aggregates Lubricated For Life Propeller shaft and steering, improved suspension and corrosion free HPDE adblue tank is built in the Eich

Assured Reliability

The Domex® chassis is designed to deliver more. Light weight and reliable, it offers superior performance, APDA reduces moisture and oil from the air to increasing the life of th

Cruise Control

 Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

IDIS 2.0

Intelligent Driver Information System 2.0 keeps the driver informed of all the key parameters through an easy to read display and tell-tales.

BSVI E 474 Engine

The new E 474 BSVI engine delivers higher power and torque while remaining true to the promise of best in class fuel efficiency.
