EICHER 2050 D AC Chassis

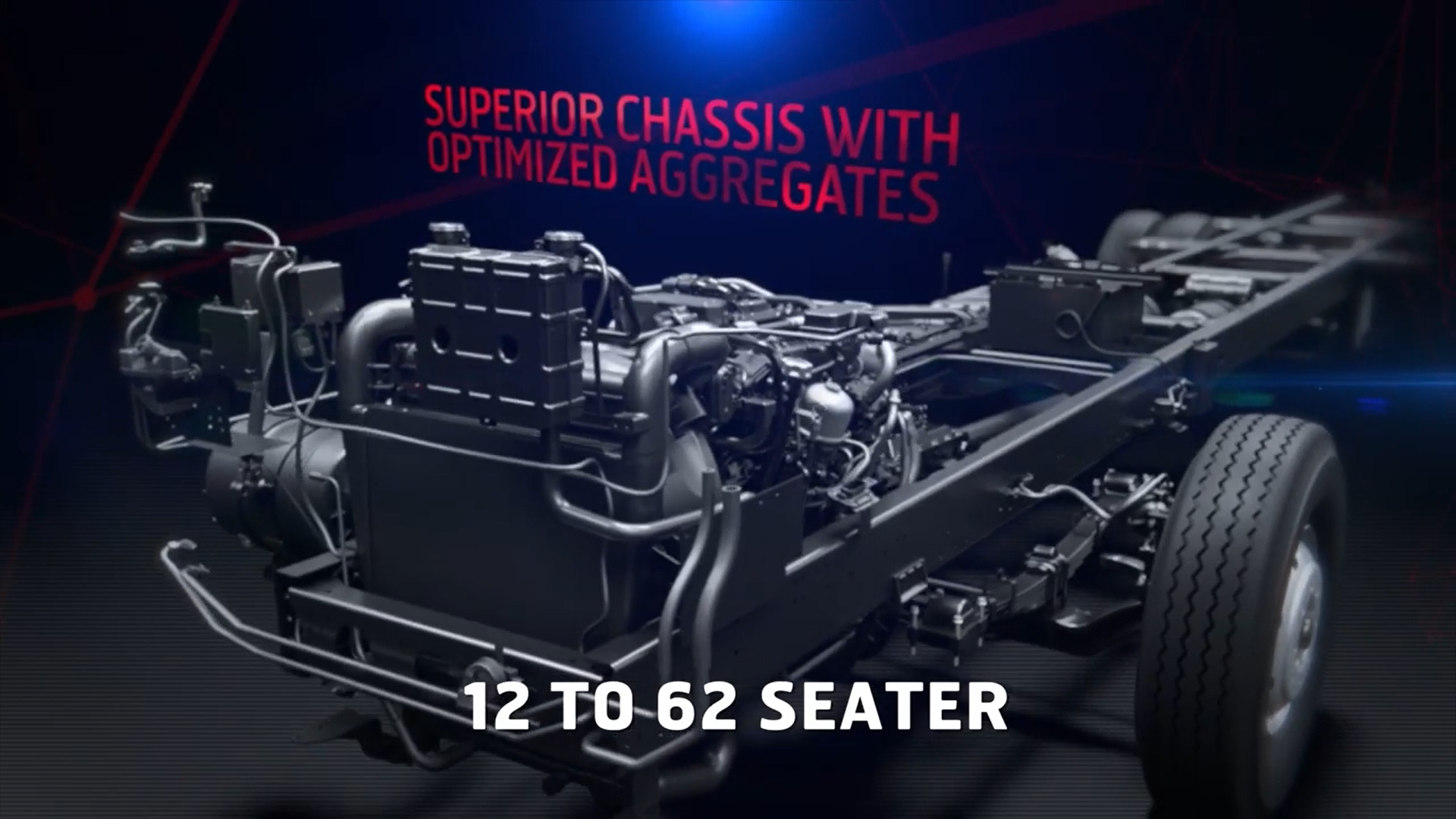

The all-new 2000 series chassis is designed to deliver best in class operating economics and superior on road performance, coupled with a lower maintenance costs leading to high profitability for its owners. Powered by advanced new E366 engine, Eicher chassis is smartly designed to deliver powerful performance without compromising on fuel efficiency.

GVW5.6 t
Power 75 kW
Torque285 Nm
Fuel TypeDiesel
  • Specifications
  • Benefits
  • Technology

Wheelbase 3100 mm
Overall Length 5625 mm
Overall Width 2043 mm
Overall Height 2480 mm
Ground Clearance 183 mm
Front Overhang 1000 mm
Rear Overhang 1525 mm
Turning Circle Diameter 12.2 m
Engine Make  E366
Displacement (cc) 1999
Power  75 kW @ 3200 rpm
Torque  285 Nm @ 1250-2500 rpm
Clutch 280 mm
Transmission Make ET30S5
Transmission Type  Synchromesh ( 5 SPeed+1Rev)
GVW 5.6 t
Chassis Type  BSK 46
Chassis dimension  180X60X5 mm
Fuel Tank Capacity 60 litres
Brakes  Hydraulic with Disc
Tyres 7.50 X 16 -16 PR
Suspension Front Semi elliptic with ARB
Suspension RearSemi elliptic with ARB
Steering  Power steering
Battery  12V, 130Ah
Alternator  2 X 110A
DEF Tank Capacity 19 litres

Assured Reliability

The chassis is designed to deliver more. Light weight and reliable, it offers superior performance, APDA reduces moisture and oil from the air to increasing the life of the pneumatic system.

Fluid Economy

Best-in-class fuel efficiency delivered by Fuel coaching and Mbooster+ that enable the driver to operate in the most fuel efficient manner. Efficient engine coupled with an advance EATS ensures optimized fuel and AdBlue consumption.

Next Gen Features

New Three spoke easy to adjust steering wheel, new instrument cluster with intelligent display for better drive aids, mileage enhancing Cruise control are some of the latest feature in 2000 series.

Long lasting Durability

A complete peace of mind through stronger aggregates Lubricated For Life Propeller shaft and steering, improved suspension and corrosion free HPDE adblue tank is built in the Eicher 2000 chassis series.

Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy


 MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

 Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

BSVI E 366 Engine

The new E 366 BSVI engine is highly fuel efficient and has a low maintenance cost leading to higher profitability.
