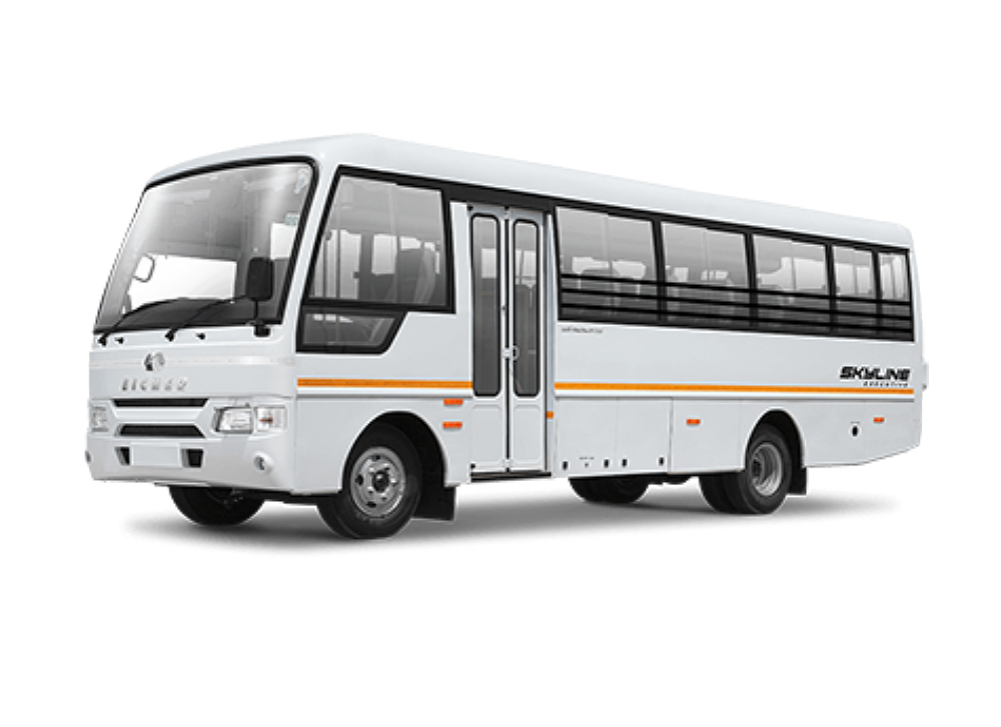

EicherSkyline 10.75H BSIII NAC
A school bus designed and developed on the grounds of utmost safety and comfort, the Eicher 10.75 H Skyline comes with maximum safety features ensuring complete security. The bus is available in 34 and 40 seating capacity options, comes with power steering, and an E483 BS III engine that produces 94 HP of power at 3200 r/min and 285 Nm of torque at 1445 r/min.
Seating Capacity40+D , 32+D
EngineE483 TCIC
Power95 HP
Torque285 Nm
Transmission 5 Speed
Fuel TypeDiesel
| SPECIFICATIONS | Skyline 10.75H BSIII NAC |
|---|---|
| Wheelbase (mm) | 4265 |
| Front Overhang (mm) | 1005 |
| Rear Overhang (mm) | 2559 |
| Overall length (mm) | 7829 |
| Turning Circle Diameter (m) | 16.63 |
| Overall width (mm) | 2164 |
| Overall height (mm) | 1860(Internal) |
| Seating Capacity | 39+1+D (3x2) |
| 31+1+D (2X2) | |
| Engine Make | E483 TCIC, BSIII |
| Power | 95 HP @3200 RPM |
| Torque (rpm) | 285 Nm @1445 rpm |
| Clutch Diameter(mm) | 275 |
| Transmission | 5 Forward and 1 Reverse |
| Chassis Type | Straight Frame |
| Brake | Air Brake |
| Tyre | 7.5x16 16PR |
| Suspension | Semi-elliptical laminated spring |
| Steering | Tilt and Telescopic, Power steering |
| Battery (Ah) | 12 V, 130 Ah |
| Alternator (Amp) | 12 V-75 Amph |
| Fuel tank capacity (ltrs) | 100 Ltrs |
| Others | School Bag tray |
