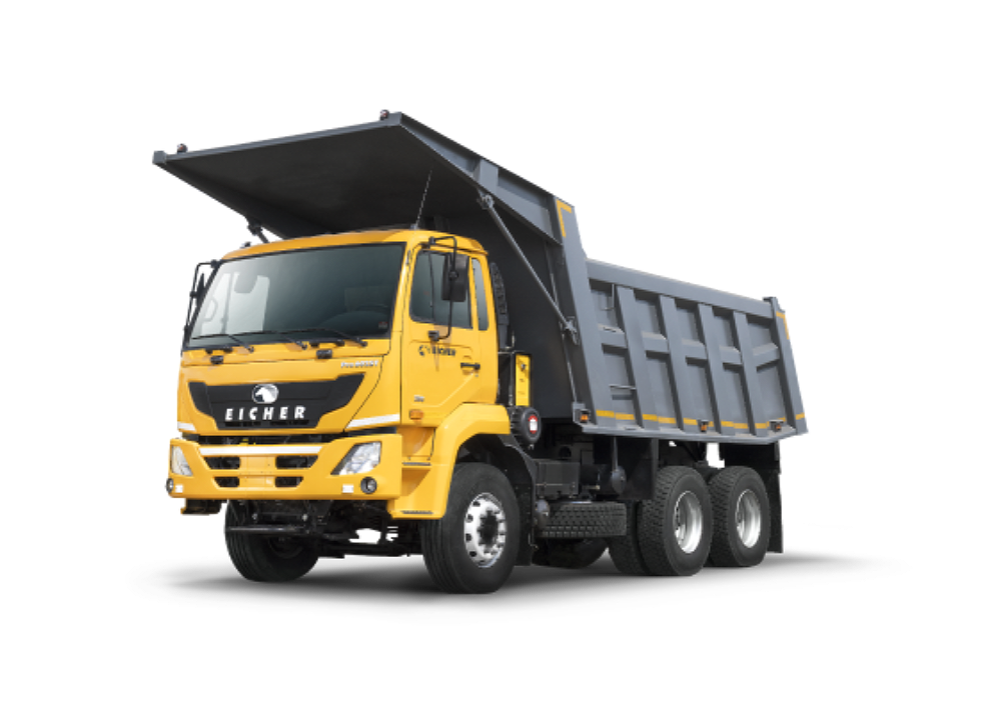

EicherPro 6025T

Eicher Pro 6025T is the new generation 25 ton GVW tipper equipped with highly fuel efficient VEDX8, 6 cylinder, 7.7 litre CRS engine designed in association with Volvo Group and a Next Gen cabin with state of art features.

  • GVW
    GVW25000 Kg
  • Engine
  • Power
    Power280 HP
  • Torque
    Torque1050 Nm
  • Transmission
    Transmission ZF9S
  • Body Size/Type
    Body Size/Type16/14 cum
GVW(Kg) 25000
Wheelbase(mm) 4000
Front Overhang (mm) 1430
Rear Overhang (mm) 1075 / 1555
Engine Type VDEX8 - EURO 3
Max Power 280HP @ 2200 rpm
Max Torque 1050 Nm @ 1100 - 1700 rpm
Clutch Type Booster Assisted, Pull Type
Clutch Diameter (mm) 430
Gearbox ZF 9S
Rear Axle Meritor Tandem, Fully floating banjo type
Final Drive Ratio 5.286
Chassis Type Rolled C-Channel Ladder Type joggle
Suspension Front- Parabolic Spring with Hyd. type double acting telescopic FR Shock Absorber With ARB System
Rear- Bogie Suspension
Steering Power steering
Body Size/ Type (cum) 16 / 14
TCD (m) 14.5
Gradiability 56%
Max Speed (kmph) 88
Fuel Tank (L) 220
Electrical 2x12V - 120 Ah
Tyre 315/80R22.5
Blue metal
Road construction
Superior comfort and enhanced safety
More km per litre
Low cost ownership
Superior Uptime
