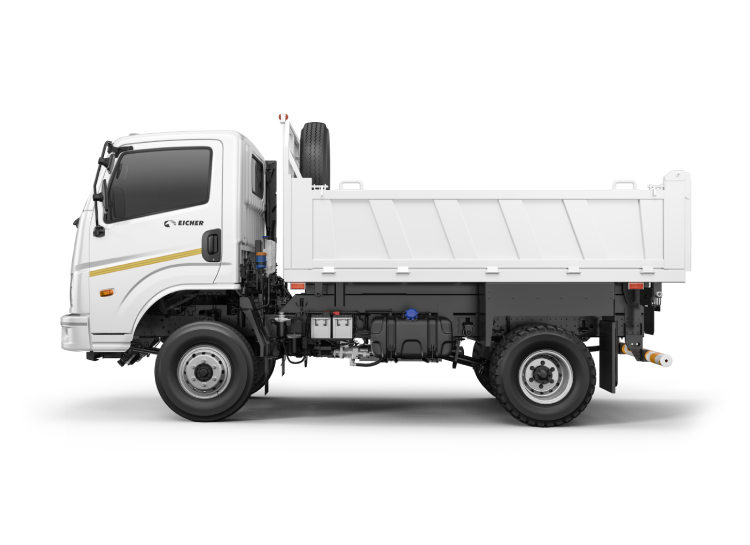

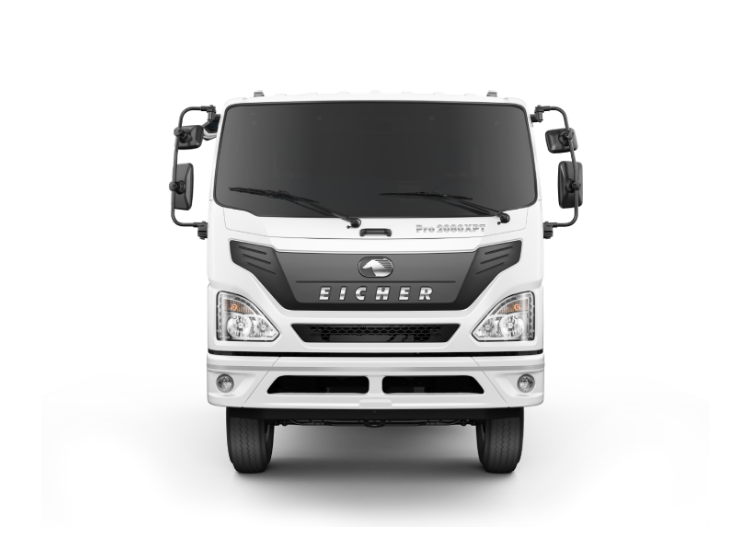

- Exterior
EicherPro 2080XPT
Eicher Pro 2080XPT is here to address the transportation needs in the Middle East. Its comfort & safety along with next gen features puts it miles ahead of its competition. It is the Smart choice for all tipper applications.
GVW8750 kgs
EngineE494
Power150 hp
Torque490 Nm
Transmission ET40S5
Cargo body type4.5 Cum
- Specification
- Applications
- Benefits
| SPECIFICATIONS | Pro 2080XPT |
|---|---|
| Drive | LHD |
| Body Size | 4.5Cum |
| Body Type | CBC/UBT |
| Vehicle Weight (in Kg) | |
| GVW (laden) (Kg) | 8750 |
| FAW (laden) (Kg) | 3100 |
| RAW (laden) (Kg) | 5650 |
| Kerb Weight (kg) | 3306/ 4806 |
| FAW (Unladen) Kg | 2116/ 2643 |
| RAW (Unladen) Kg | 1190/ 2163 |
| Vehicle Dimensional Parameters | |
| Front Track (mm) | 1680 |
| Rear Track (mm) | 1641 |
| Wheel Base (mm) | 2935 |
| Overall Length (mm) | 5315/ 5483 |
| Overall Height (mm) | 2495/ 2660 |
| Overall Width (mm) | 2545 |
| FOH (mm) | 1300 |
| ROH (mm) | 1080/ 1248 |
| Ground Clearance (mm) | |
| Frame | |
| Type | Straight Frame |
| Section (H x W x Thk) (mm) | 210x76x5 |
| Frame Width (Front & Rear) | 850 |
| No. of X-MBRS | 5 |
| (except Engine mount C\M ) | |
| Fuel Tank Type & Size | Polymer with ROV, 100L |
| Engine | |
| Model Name | E494 |
| Type of Fuel | Diesel |
| Emission | Euro 5 |
| Displacement (Ltrs) | 3.77 |
| Max Power (HP) | 150HP @2800 |
| Max Torque (Nm) | 490Nm |
| Provision of pully for additional Compressor | Yes |
| Cold Start | |
| Transmission | |
| Gear Box | ET40S5 |
| Gear Ratio forward | 7.22~1 |
| Gear Ration Reverse | 7.22 |
| PTO | Standard |
| Gear Shift | |
| Type | Hybrid cable type |
| No. of Gears | 5 + 1 |
| Clutch | Single dry plate |
| Clutch (Type\Size) | Dia 330 |
| Booster | Yes |
| Prop Shaft | |
| Series | SPL70 |
| Diameter | 88.9 |
| Performance | |
| Max Speed (kmph) | 88 |
| Grade ability (%) | 41 |
| Front Axle | |
| Type | Reverse Elliot “I” Beam |
| Rear Axle | |
| Drive Head Size (mm) | 340 |
| Rear Axle Ratio | 4.8 |
| Diff Lock | No |
| Steering System | |
| Type | Power Steering |
| Tilt able (Y\N) | Yes |
| Steering Wheel Dia (mm) | 410 |
| Stg Gear Box Ratio | 17.8 |
| TCD –calculated (m) | 11.5 |
| Suspension | |
| Front Suspension Type | Semi Elliptical with Shock Absorber |
| No of leaves (nos) | 7 |
| Width X Thickness (mm) | 70x10 |
| ARB | |
| Rear Suspension Type | Semi Elliptical with Helper spring |
| No of leaves | M-8, H-9 |
| Width X Thickness (mm) | M - 70X10- 3nos |
| 70X9- 4nos | |
| H - 70X9- 4nos. | |
| 70X8- 3nos | |
| ARB | |
| Wheels & Tyres | |
| No. of Tyres (Excluding STC) | 6 |
| Tyre Type | Tube type |
| Tyre Size (Front & Spare) | 8.25X16-16 PR |
| Tyre Size (Rear) | 8.25X16-16 PR |
| Wheel Rim size | 6GX16 |
| No. of Bolts \ Rim | 6 |
| Cabin | |
| Width | 2.0m |
| Day \ Sleeper | Day |
| Drive | LHD |
| Seating Capacity | 3 |
| Tilt Mechanism | Manual |
| Seat Belt (Driver) | 3 point ELR with SBR |
| Seat Belt (Co-driver) | 3 point ELR |
| Co-driver Lap Belt | Yes |
| HVAC \ Blower | HVAC |
| Power Window | Yes |
| Central Locking | Yes |
| Rear Window | Fixed |
| Overhead Storage Box | Yes |
| Carpet | Moulded type |
| Brakes | |
| Type ( Air \Hyd) | Dual Circuit Air |
| Brake type | Drum Brake |
| Front disc piston dia. | NA |
| Rear disc piston dia. | NA |
| Brake Assy dia. | NA |
| Drum Size | 325 x 140 |
| Parking Brakes type | GHCV (Graduated Hand control valve) |
| Brake Booster Size (Hyd) | NA |
| Parking brake dia. | NA |
| No of Vacuum / Air Tanks | 3 |
| Tank Capacity | 20/20/10L |
| ABS (Yes\No) | Yes |
| Exhaust brake | Yes |
| Exhaust brake dia. | 80 mm |
| Electrical | |
| Voltage System | 24V |
| No. of batteries | 2 |
| Battery Rating | 100Ah |
| Battery Cut off | Yes |
| Fog lamp | Yes |
| Tail Lamp | LED type |
| Wiping System | 2 blade with arms, operated by electric motor |
| Alternator | 75A |
| Music System (Radio) | No |
| Infotainment System | Yes |
| M Booster / M Booster + | M Booster + |
| Hydraulic Jack | Yes |
| Fire Extingusher | Yes |
Cement
Construction
Hardware Material
Stone Chips
Sand
Boulder Stone
Blue Metal
Best in class safety
Superior Reliability
Best in class comfort
Higher profit
