Exterior

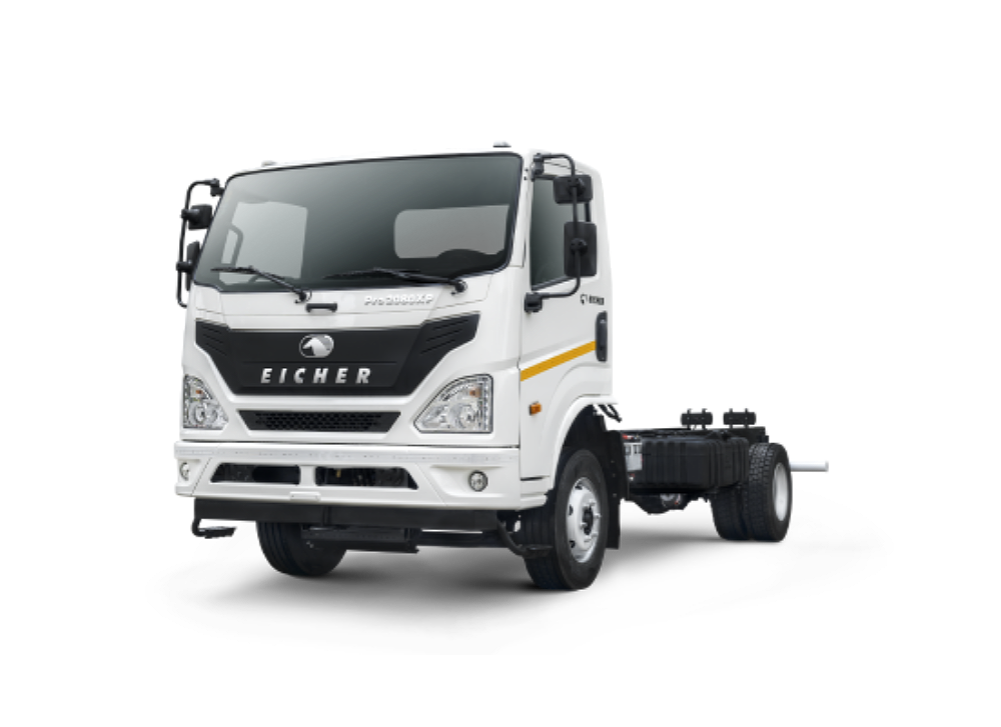

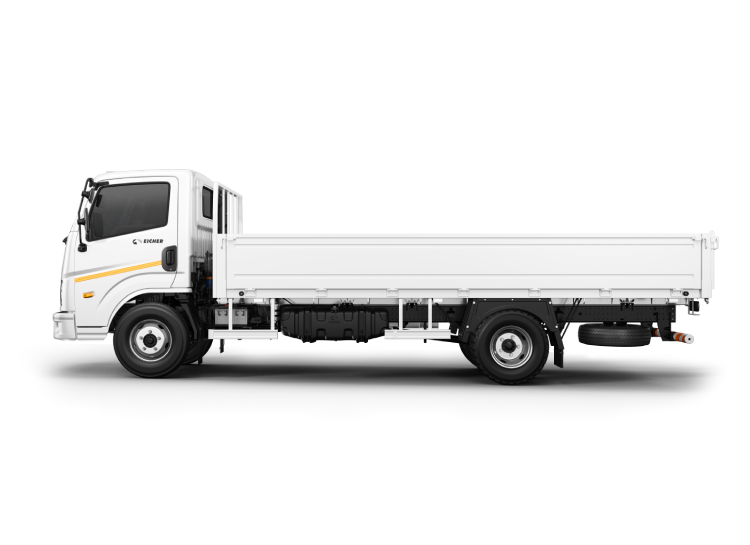

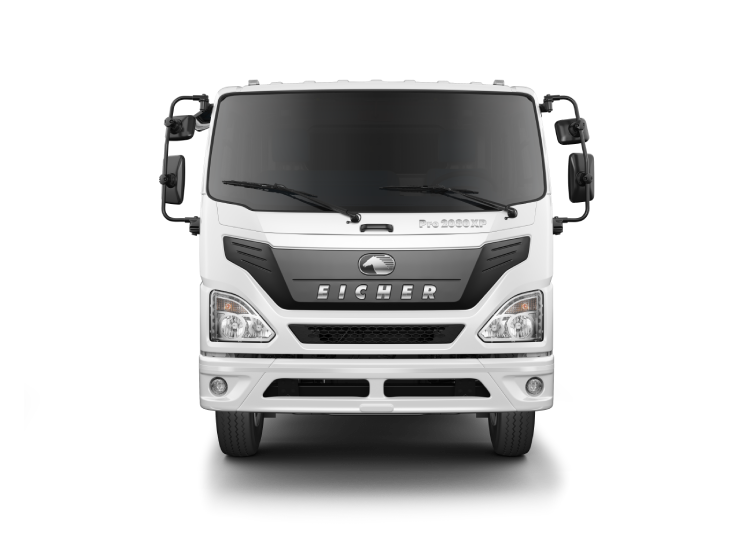

EicherPro 2080XP

Eicher Pro 2080XP is here to address the transportation needs in the Middle East. Its comfort & safety along with next gen features puts it miles ahead of its competition. It is the Smart choice for all your delivery needs.

GVW8500 kgs
EngineE474
Power150 hp
Torque400 Nm
Transmission ET35S6
Cargo Body LengthL18

Specification
Applications
Benefits

SPECIFICATIONS	Pro 2080XP
Drive	LHD
Body Size	18ft
Body Type	CBC/DSD
Vehicle Weight (in Kg)
GVW (laden) (Kg)	8500
FAW (laden) (Kg)	2980
RAW (laden) (Kg)	5520
Kerb Weight (kg)	3008/ 3848
FAW (Unladen) Kg	1925/ 2117
RAW (Unladen) Kg	1083/ 1731
Vehicle Dimensional Parameters
Front Track (mm)	1680
Rear Track (mm)	1540
Wheel Base (mm)	3975
Overall Length (mm)	7240/ 7455
Overall Height (mm)	2320
Overall Width (mm)	2545
FOH (mm)	1200
ROH (mm)	2065/ 2280
Ground Clearance (mm)	166
Frame
Type	Joggle Frame
Section (H x W x Thk) (mm)	200x65x5
Frame Width (Front & Rear)	F-900 & R-750
No. of X-MBRS	6
No. of X-MBRS	(except Engine mount C\M & Rear shock abs C/M)
Fuel Tank Type & Size	Polymer with ROV, 190L
Engine
Model Name	E474
Type of Fuel	Diesel
Emission	Euro 5
Displacement (Ltrs)	2.96
Max Power (HP)	150HP @3200
Max Torque (Nm)	400Nm
Provision of pully for additional Compressor	Yes
Cold Start
Transmission
Gear Box	ET35S6
Gear Ratio forward	6.667~0.83
Gear Ration Reverse	5.94
PTO	No
Gear Shift
Type	Hybrid cable type
No. of Gears	6 + 1
Clutch	Single dry plate
Clutch (Type\Size)	Dia 310
Booster	NA
Prop Shaft
Series	SPL55
Diameter	88.9
Performance
Max Speed (kmph)	104
Grade ability (%)	36
Front Axle
Type	Reverse Elliot “I” Beam
Rear Axle
Drive Head Size (mm)	340
Rear Axle Ratio	5.3
Diff Lock	No
Steering System
Type	Power Steering
Tilt able (Y\N)	Yes
Steering Wheel Dia (mm)	410
Stg Gear Box Ratio	19.8
TCD –calculated (m)	15.6
Suspension
Front Suspension Type	Semi Elliptical + Shock Absorber
No of leaves (nos)	9
Width X Thickness (mm)	70 x10-1, 70 x 9 -9
ARB
Rear Suspension Type	Semi Elliptical with Helper spring + Shock Absorber
No of leaves	M-8, H7
Width X Thickness (mm)	M- 70x10- 3nos
	70x9 - 5nos
	H -70x9 - 4nos
	70x8 - 3nos
ARB
Wheels & Tyres
No. of Tyres (Excluding STC)	6
Tyre Type	Tubeless
Tyre Size (Front & Spare)	225/75R17.5
Tyre Size (Rear)	225/75R17.5
Wheel Rim size	6X17.5
No. of Bolts \ Rim	5
Cabin
Width	2.0m
Day \ Sleeper	Day
Drive	LHD
Seating Capacity	3
Tilt Mechanism	Manual
Seat Belt (Driver)	3 point ELR with SBR
Seat Belt (Co-driver)	3 point ELR
Co-driver Lap Belt	Yes
HVAC \ Blower	HVAC
Power Window	Yes
Central Locking	Yes
Rear Window	Fixed
Overhead Storage Box	Yes
Carpet	Moulded type
Brakes
Type ( Air \Hyd)	Dual Circuit Hydraulic
Brake type	Drum Brake
Front disc piston dia.	NA
Rear disc piston dia.	NA
Brake Assy dia.	NA
Drum Size	320 x 110
Parking Brakes type	Internal Expanding Type at rear of transmission.
Brake Booster Size (Hyd)	10+10"
Parking brake dia.	220
No of Vacuum / Air Tanks	1
Tank Capacity	20L
ABS (Yes\No)	Yes
Exhaust brake	Yes
Exhaust brake dia.	79 mm
Electrical
Voltage System	24V
No. of batteries	2
Battery Rating	100Ah
Battery Cut off	Yes
Fog lamp	Yes
Tail Lamp	LED type
Wiping System	2 blade with arms, operated by electric motor
Alternator	75A
Music System (Radio)	No
Infotainment System	Yes
M Booster / M Booster +	M Booster +
Hydraulic Jack	Yes
Fire Extingusher	Yes
