| GVW(Kg) |
25000 kg |
| Body Size |
16 Cum Box & 14 Cum Rock |
| Wheelbase(mm) |
4000 mm |
| Front Overhang (mm) |
2085 mm |
| Rear Overhang (mm) |
1926 mm |
| Engine Type |
VEDX8 BSIII 7.7 liters |
| Max Power |
220 hp @ 2200 rpm |
| Max Torque |
850 Nm @1100-1700 rpm |
| Clutch Type |
Booster assisted pull type |
| Clutch Diameter |
430mm |

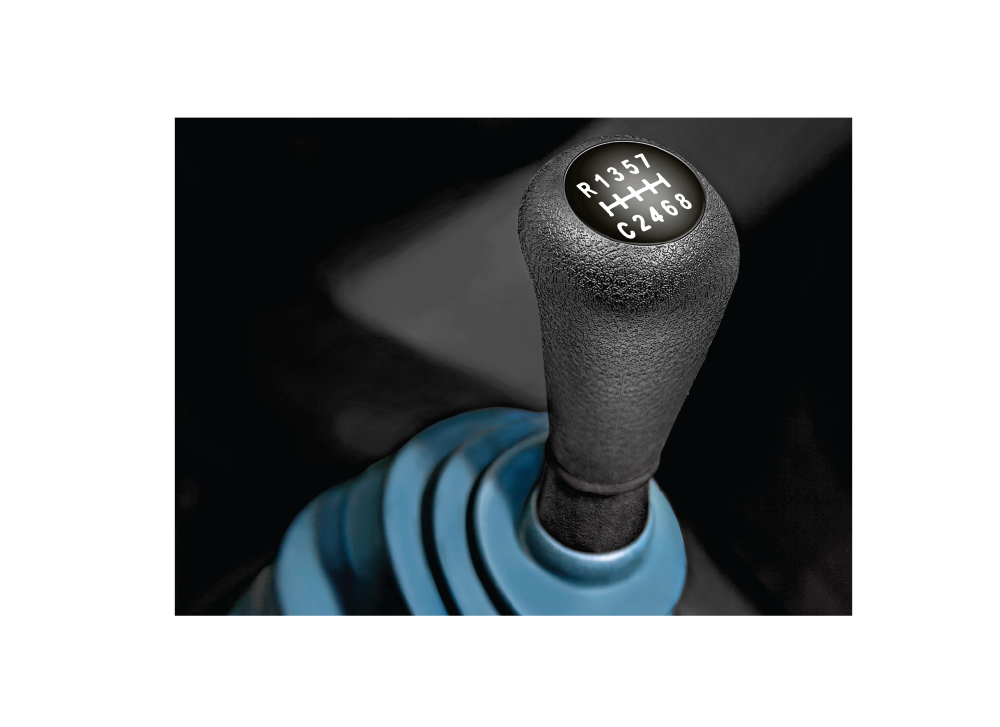

| Gearbox |
ZF make, 9 Forward 1 Reverse |
| Rear Axle Ratio |
VECV in House Axle Tandem-Fully floating Banjo |
| Final Driver Ratio |
5.29 |

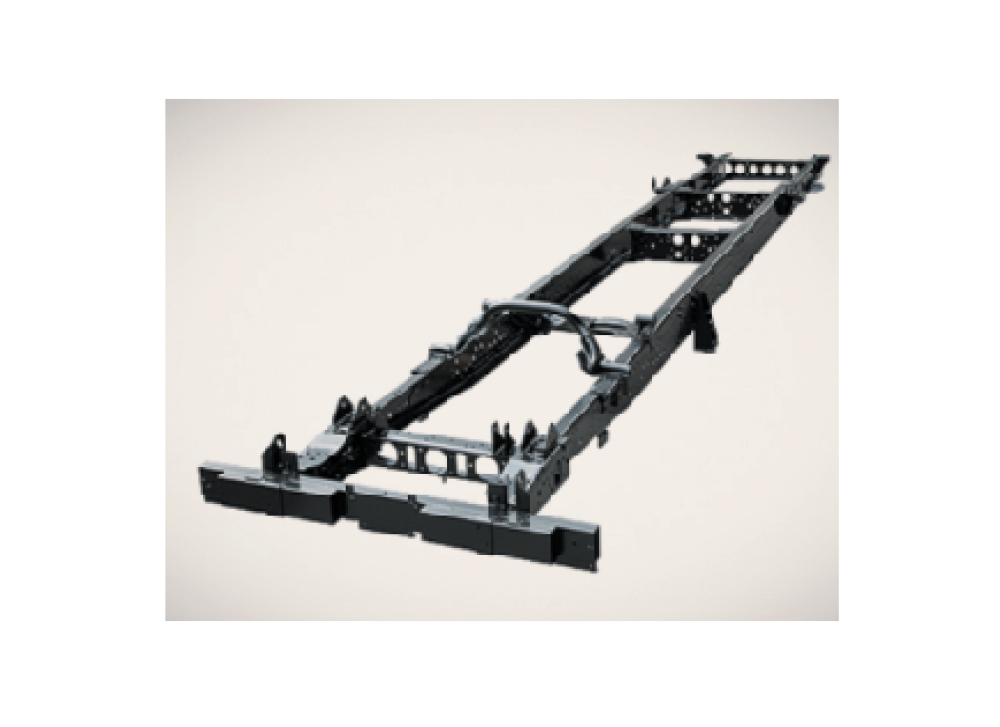

| Chassis Type and Dimension |
Domex 650 ladder type joggle frame, 285 x 76 x 7 mm |

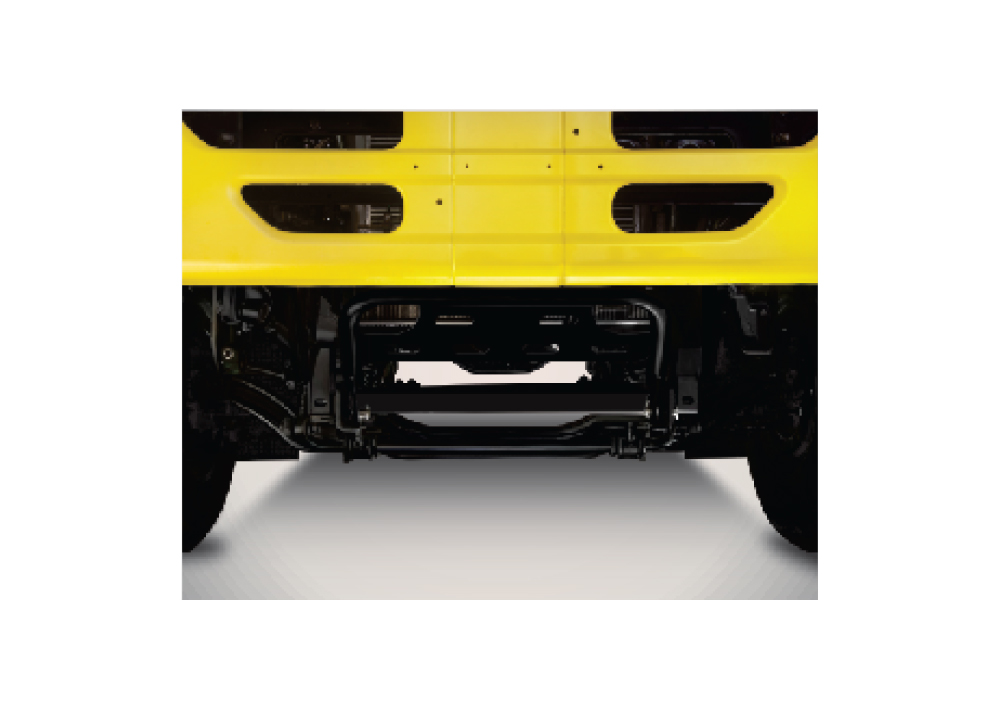

| Suspension |
Front: Semi-Elliptical with anti roll bar
Rear: Bogie suspension
Hydraulic double acting telescopic type at front only |
| Shock Absorber |
Hydraulic Double Acting Telescopic type at front only |
| TCD |
14.5 m |

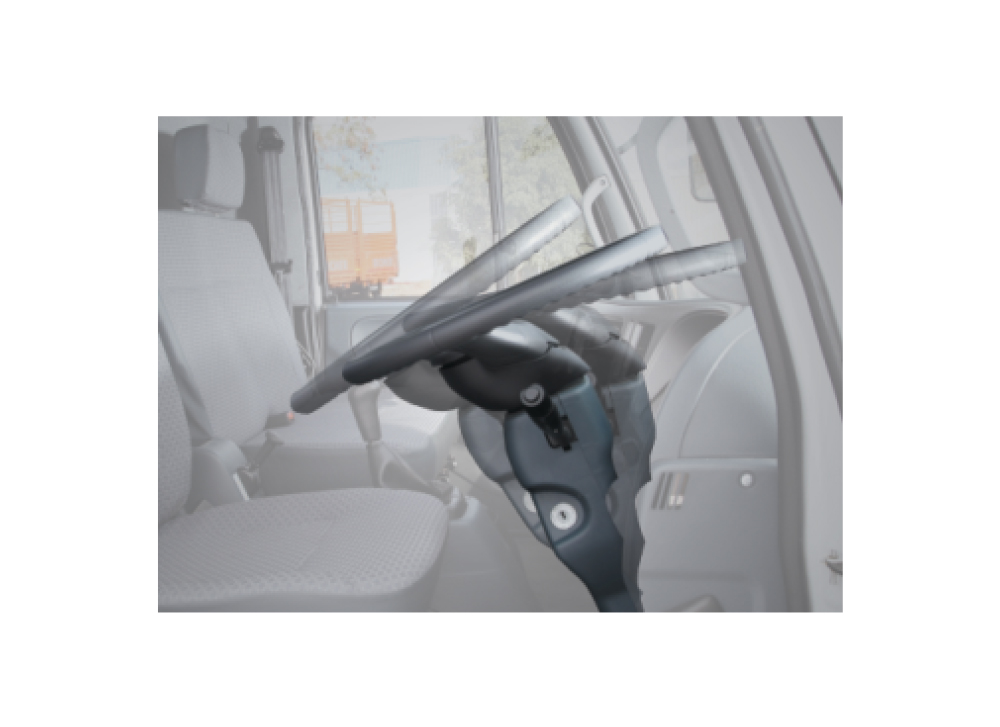

| Steering |
Tilt and Telescopic hyadraulic power steering |
| Gradeability(%) |
42.5 |
| Fuel Tank (L) |
220 litres |
| Electrical |
2 x24 V, 150 Ah |
| Tyre |
11R-22.5 (Tubeless)- 16PR |
| Max Speed |
79.6 kmph |
GVW25000 kg
EngineVEDX8
Power220 hp
Torque850 Nm
Transmission 9 Speed
Tipper Body Size14/16 CuM
