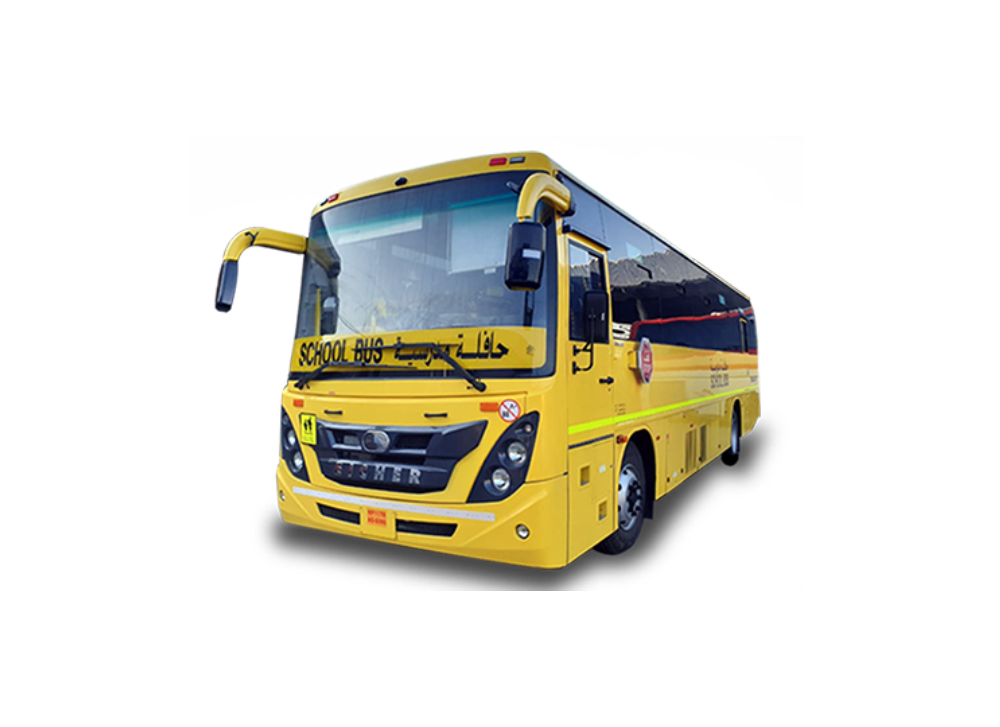

EicherSkyline 20.15 School Bus
A 48 seater bus is designed specifically for school children powered by supreme features
Seating Capacity47+D (2x2) HHR
Engine5.6 litres
Power180 hp
Torque670 Nm
Transmission 6 speed
Fuel TypeDiesel
| SPECIFICATIONS | 20.15N LHD Staff E3 |
|---|---|
| Wheelbase | 5840 mm |
| Front Overhang | 2240 mm |
| Rear Overhang | 3520 mm |
| Overall length | 11600 mm |
| Overall width | 2590 mm |
| Turning Circle Diameter | 23.2 m |
| GVW | 16200 kg |
| Seating Capacity | 47+D (2x2) HHR |
| Engine Make | E694 EGR EIII |
| Power | 180 HP @2400 RPM |
| Torque (rpm) | 670 Nm @1200-1400 rpm |
| Clutch Diameter | 395 mm dia with clutch booster |
| Transmission | 6 Forward and 1 Reverse |
| Brake | Dual circuit S Cam |
| Tyre | 11R22.5 Tubeless Radial |
| Suspension | Front & rear weveller Suspension |
| Steering | Tilt and Telescopic, power steering |
| Battery (Ah) | 24V(12*2), 150 Ah x 2 |
| Alternator (Amp) | 24V, 100 Amp |
| Fuel tank capacity | 395 litres |
Best in class safety
Better driver ergonomics
Superior ride comfort
