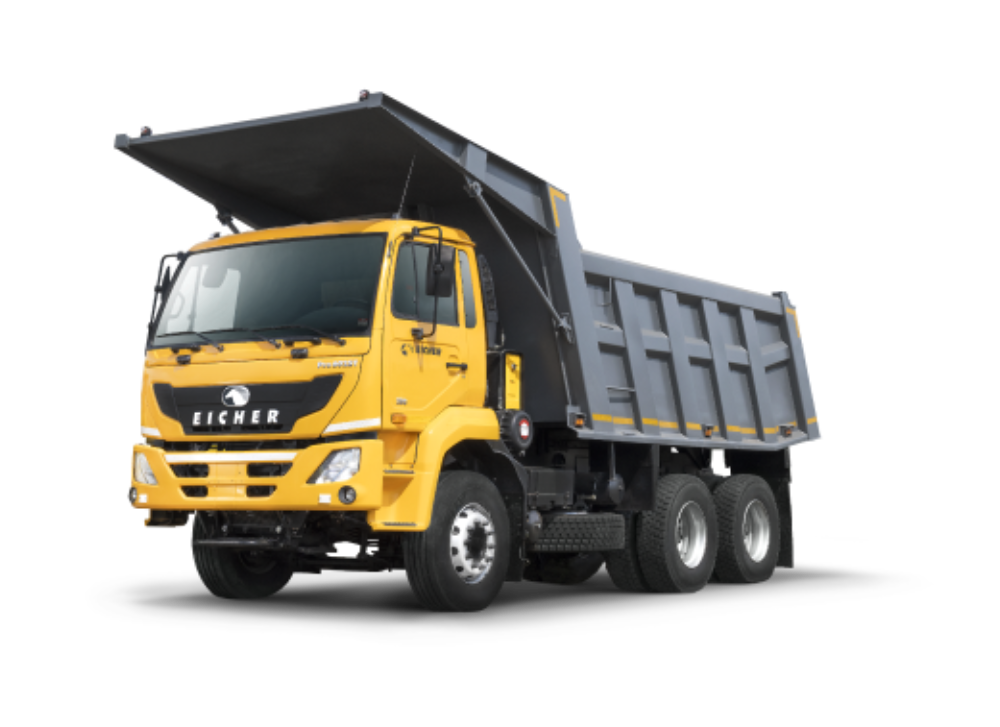

EicherPro 6025T
Eicher Pro 6025T is the new generation 25 ton GVW tipper equipped with highly fuel efficient VEDX8, 6 cylinder,7.7 litre CRS engine designed in association with Volvo Group and a Next Gen cabin with state of art features.
GVW25000 Kg
EngineVDEX8
Power280 HP
Torque1050 Nm
Transmission ZF9S
Body Size/Type16/14 cum
| SPECIFICATIONS | Eicher Pro 6025T |
|---|---|
| GVW(Kg) | 25000 |
| Wheelbase(mm) | 4000 |
| Front Overhang (mm) | 1430 |
| Rear Overhang (mm) | 1075 / 1555 |
| Engine Type | VDEX8 - EURO 3 |
| Max Power | 280HP @ 2200 rpm |
| Max Torque | 1050 Nm @ 1100 - 1700 rpm |
| Clutch Type | Booster Assisted, Pull Type |
| Clutch Diameter (mm) | 430 |
| Gearbox | ZF 9S |
| Rear Axle | Meritor Tandem, Fully floating banjo type |
| Final Drive Ratio | 5.286 |
| Chassis Type | Rolled C-Channel Ladder Type joggle |
| Suspension | Front- Parabolic Spring with Hyd. type double acting telescopic FR Shock Absorber With ARB System |
| Rear- Bogie Suspension | |
| Steering | Power steering |
| Body Size/ Type (cum) | 16 / 14 |
| TCD (m) | 14.5 |
| Gradiability | 56% |
| Max Speed (kmph) | 88 |
| Fuel Tank (L) | 220 |
| Electrical | 2x12V - 120 Ah |
| Tyre | 315/80R22.5 |
SAND
BLUE METAL
STONE
ROAD CONSTRUCTION
Superior uptime
Superior comfort & Enhanced safety
More km per Liter
