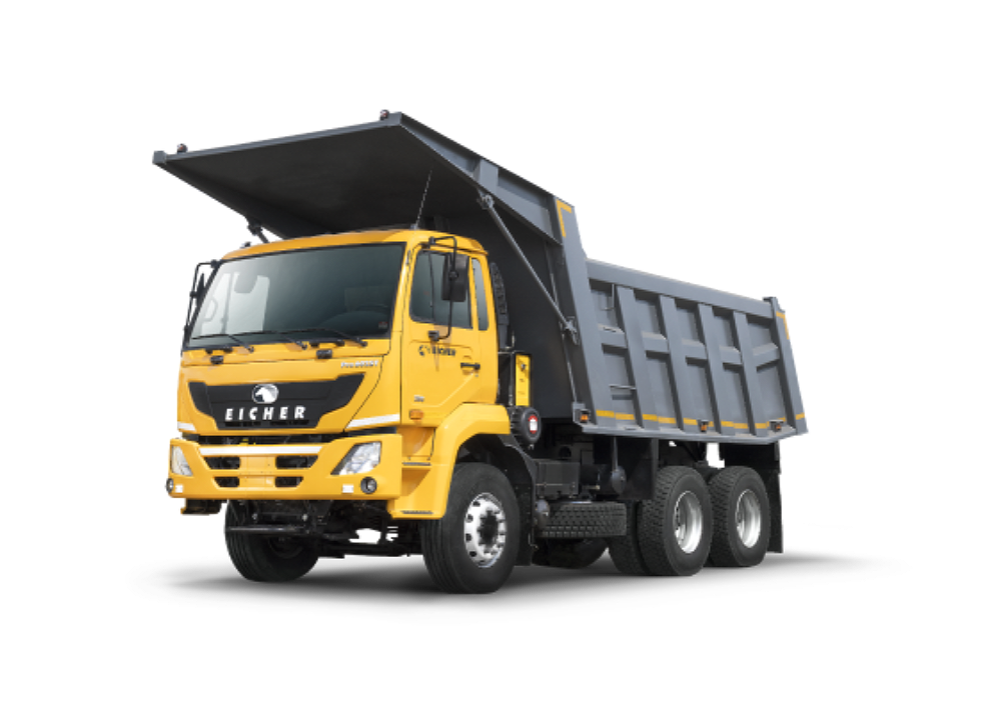

EICHER Pro 6025T
Eicher Pro 6025T is the new generation 25 ton GVW tipper equipped with highly fuel efficient VEDX8, 6 cylinder,7.7 litre CRS engine designed in association with Volvo Group and a Next Gen cabin with state of art features.
GVW25000 Kg
EngineVDEX8
Power280 HP
Torque1050 Nm
Transmission 1050 Nm
Body Size/Type16/14 cum
- Specifications
- Benefits
- Technology
- Applications
| SPECIFICATIONS | Eicher Pro 6025T |
|---|---|
| GVW(Kg) | 25000 |
| Wheelbase(mm) | 4000 |
| Front Overhang (mm) | 1430 |
| Rear Overhang (mm) | 1075 / 1555 |
| Engine Type | VDEX8 - EURO 3 |
| Max Power | 280HP @ 2200 rpm |
| Max Torque | 1050 Nm @ 1100 - 1700 rpm |
| Clutch Type | Booster Assisted, Pull Type |
| Clutch Diameter (mm) | 430 |
| Gearbox | ZF 9S |
| Rear Axle | Meritor Tandem, Fully floating banjo type |
| Final Drive Ratio | 5.286 |
| Chassis Type | Rolled C-Channel Ladder Type joggle |
| Suspension | Front- Parabolic Spring with Hyd. type double acting telescopic FR Shock Absorber With ARB System |
| Rear- Bogie Suspension | |
| Steering | Power steering |
| Body Size/ Type (cum) | 16 / 14 |
| TCD (m) | 14.5 |
| Gradiability | 56% |
| Max Speed (kmph) | 88 |
| Fuel Tank (L) | 220 |
| Electrical | 2x12V - 120 Ah |
| Tyre | 315/80R22.5 |
Superior Uptime
Superior comfort & Enhanced safety
More km per Litre
Low cost of ownership
VEDX8 6 cylinder Euro 3 Engine with Volvo group engine management system (BSIII to be replaced with Euro 3)
Intelligent driver information system
Domex chassis with higher tensile strength
Sand
Stone
Blue Metal
Road Construction
Iron
