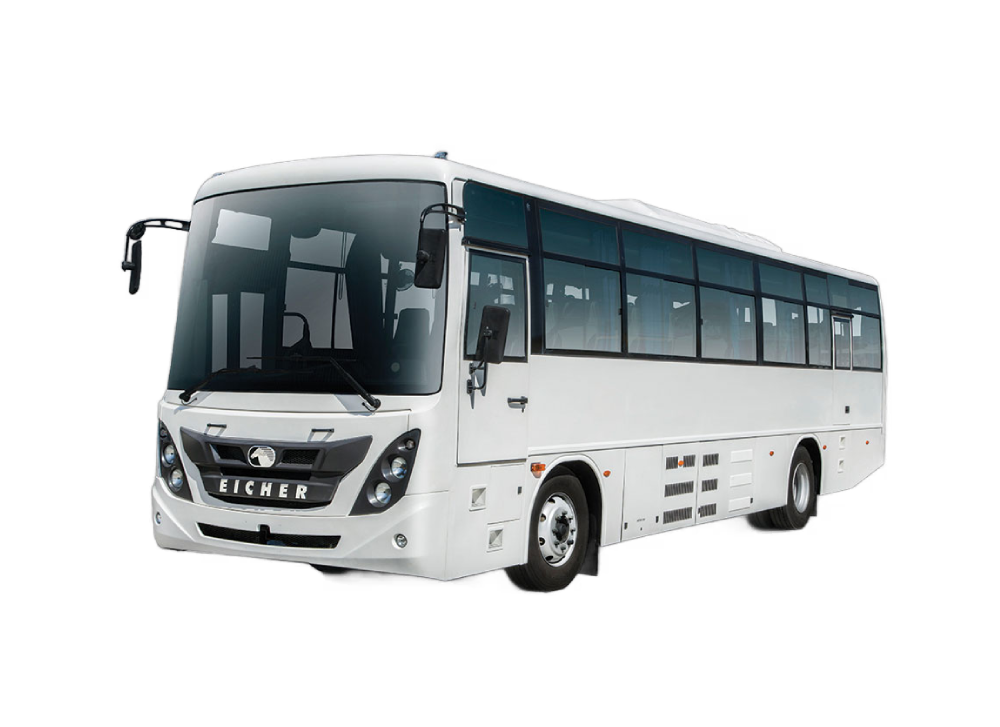

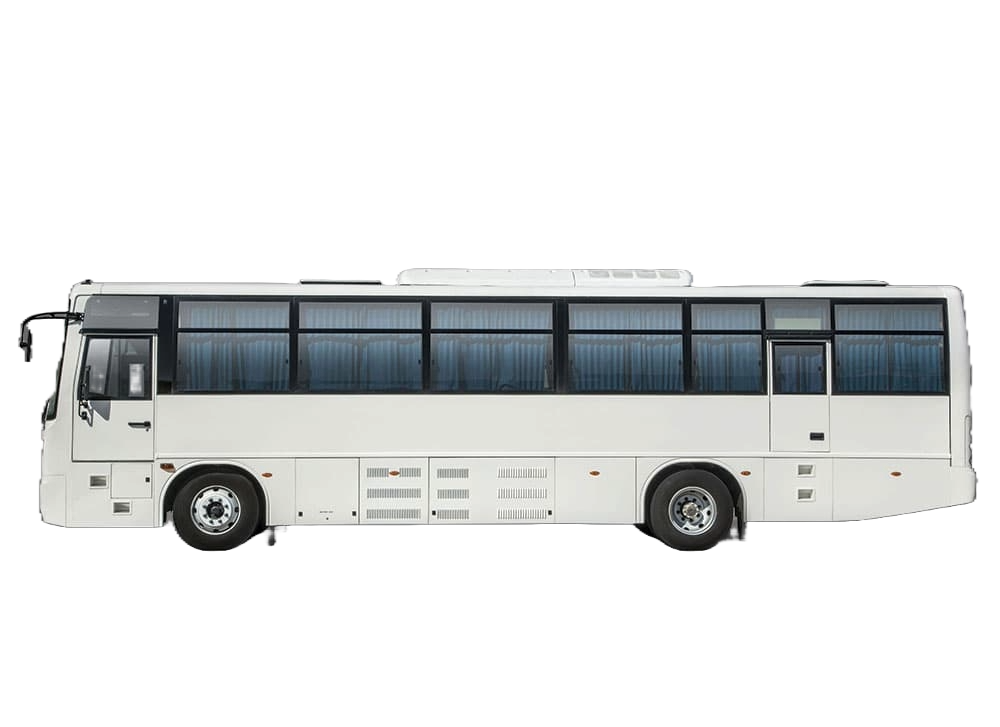

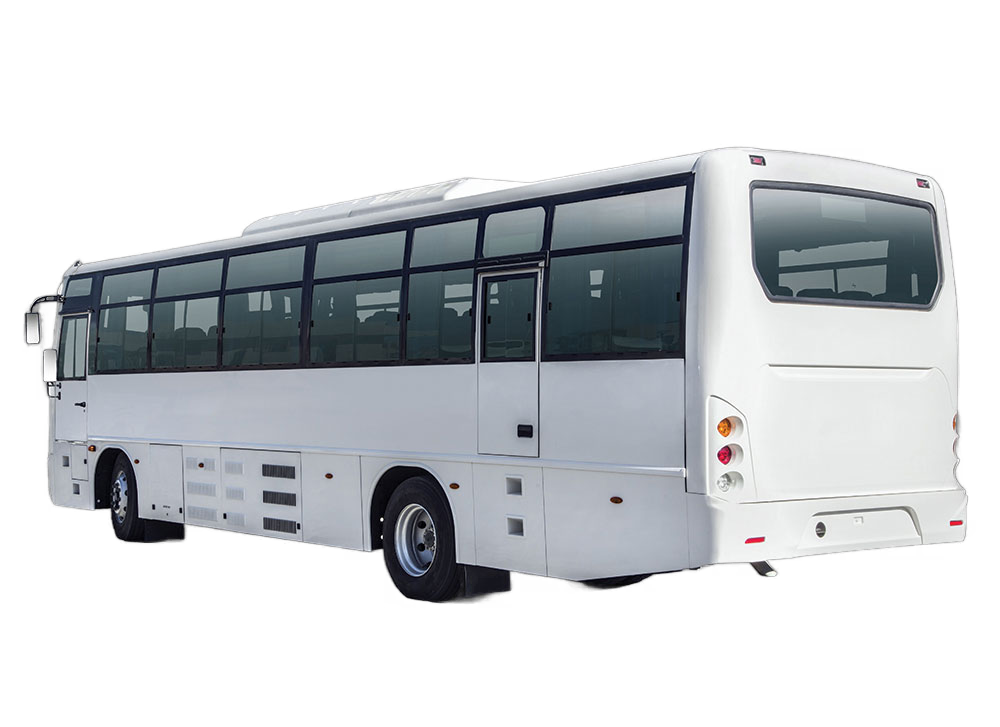

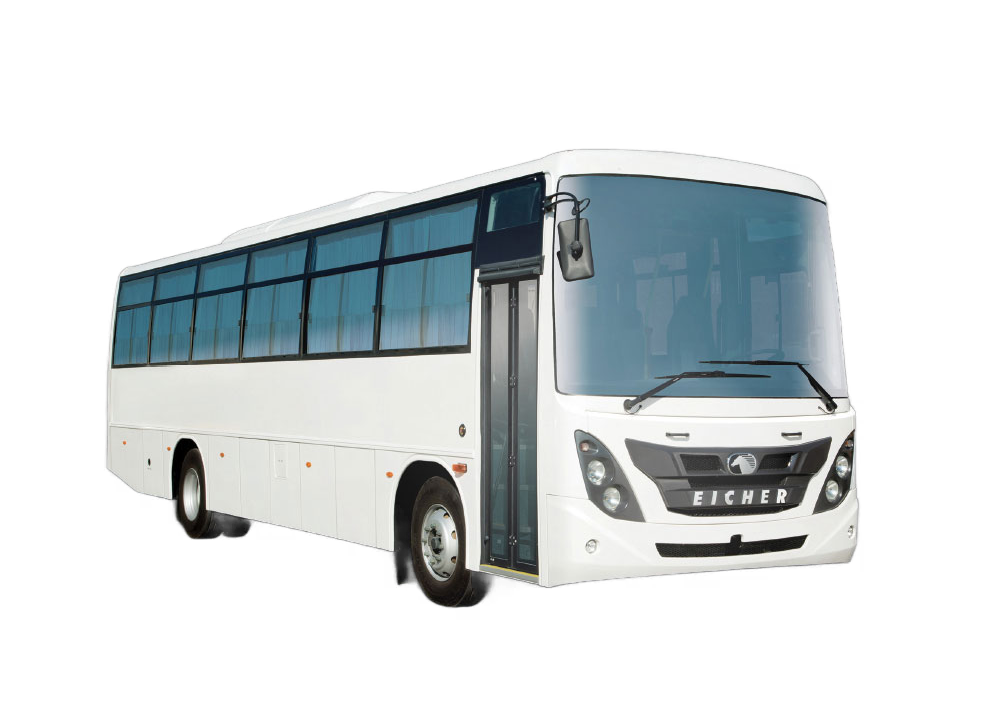

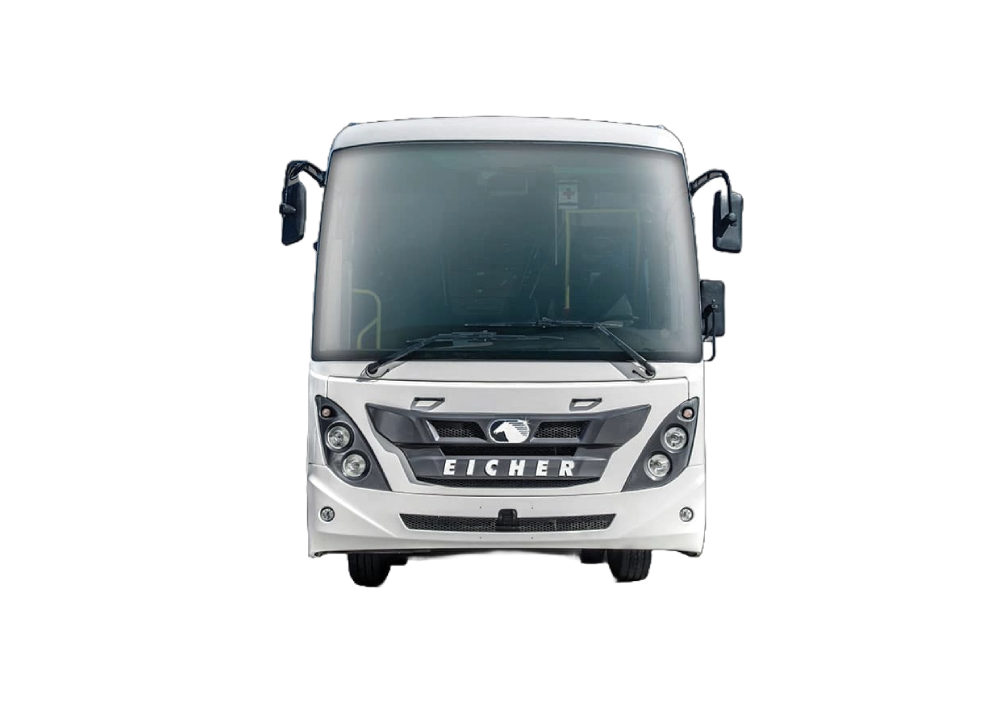

EicherSkyline 20.15
Eicher Skyline 20 . 15 is powered by the high performance 6 cylinder 4 valve E694 EIII engine with CRS technology which delivers best-in-class fuel efficiency and provides non-stop performance.
Seating Capacity65+D (3x2)
EngineE694 EGR BSIII
Power180 hp
Torque670 Nm
Transmission 6 speed
Fuel TypeDiesel
| PARAMETERS | Value | |
|---|---|---|
| ENGINE | Type | E694 EGR BSIII |
| Max. Power | 180 hp @ 2400 rpm | |
| Max. Torque | 670 Nm @ 1200-1400 rpm | |
| PERFORMANCE | Gradeability (running) | 25% |
| Min. TCD | 22.5 m | |
| CLUTCH | Type | 395 mm with clutch diameter clutch booster |
| GEARBOX | Model | ET70S6 |
| Type | 6 Forward (with overdrive) & 1 Reverse Gear, Single Rod GSL | |
| AXLE | Front | I - Beam Reverse Elliot type |
| Rear (FDR) | 5.286 | |
| WHEEL RIM & TYRE | Tyre Size | 11R22.5 - 16 PR Tubeless Radial |
| SUSPENSION | Front and Rear | Weveller suspension |
| Shock Absorber | Hydraulic double acting telescope shock absorber at front and rear | |
| STEERING | Type | Power Steering, Tilt & Telescopic type |
| ELECTRICAL SYSTEM | System Voltage | 24 Volt |
| Battery | 24V, 150Ah X2 | |
| Alternator | 24V, 100 amp | |
| Battery Cut off Switch | Electronic type | |
| FUEL TANK | Capacity | 395 litres |
| BRAKES | Type | Air brake with ABS |
| Service Brakes | Dual circuit, Full Air S-cam brake | |
| Exhaust Brakes | Available | |
| Parking Brake/ Location | Spring Brakes Acting on Rear Wheels | |
| SEATING CAPACITY | 3x2 configuration | 65+D(3x2) |
| DIMENSIONS | Wheelbase | 5840 mm |
| Rear Overhang | 3520 mm | |
| Front Overhang | 2240 mm | |
| Overall Length | 11600 mm | |
| Internal Height | 1925 mm | |
| Overall Width | 2590 mm | |
| GVW | 16200 kg | |
| AC | Capacity | Eberspacher - 36.6 KW |
Best in class safety
Better driver ergonomics
Superior ride comfort
