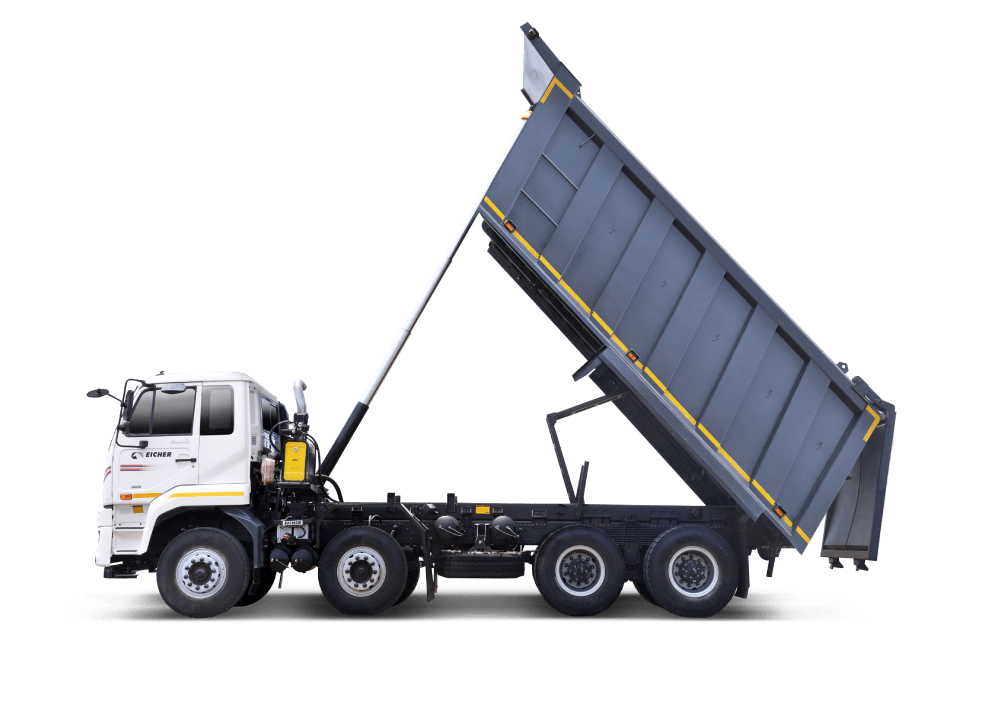

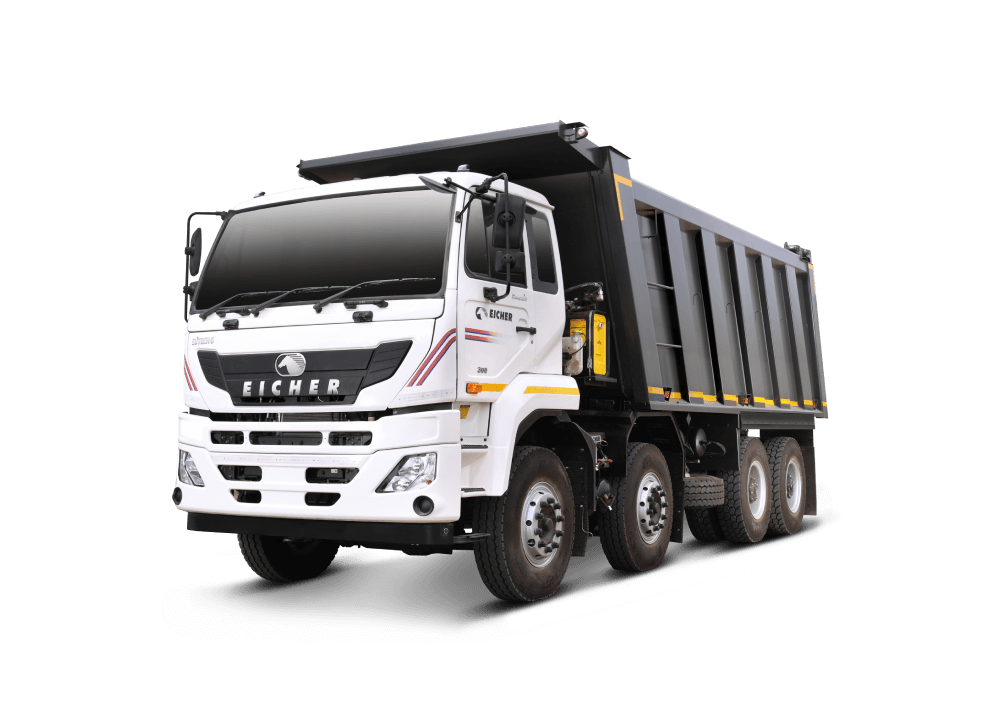

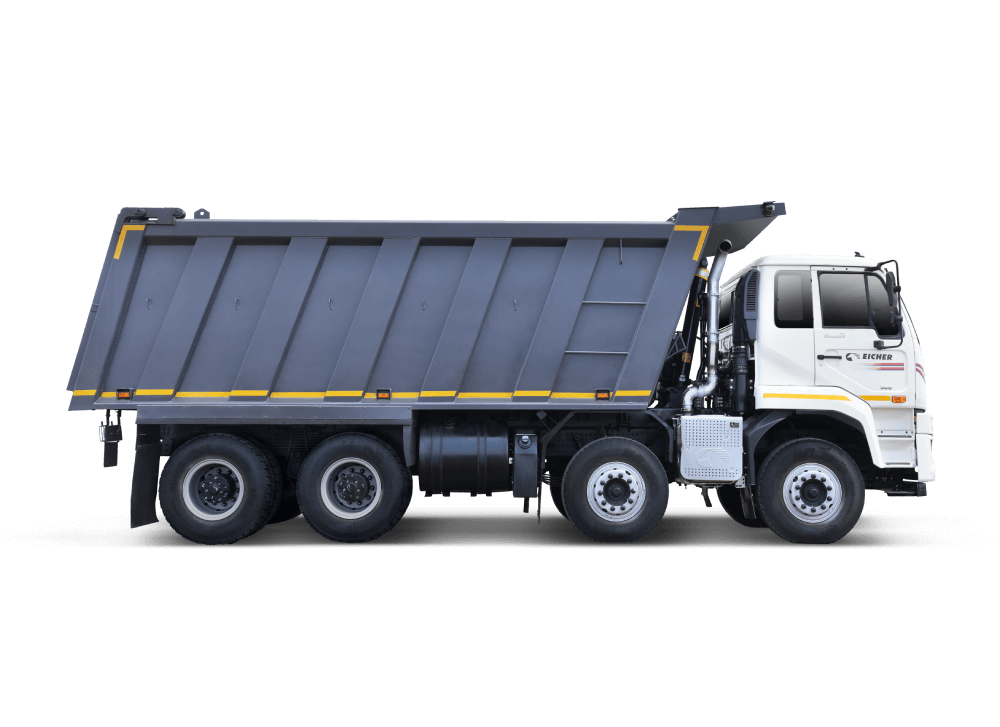

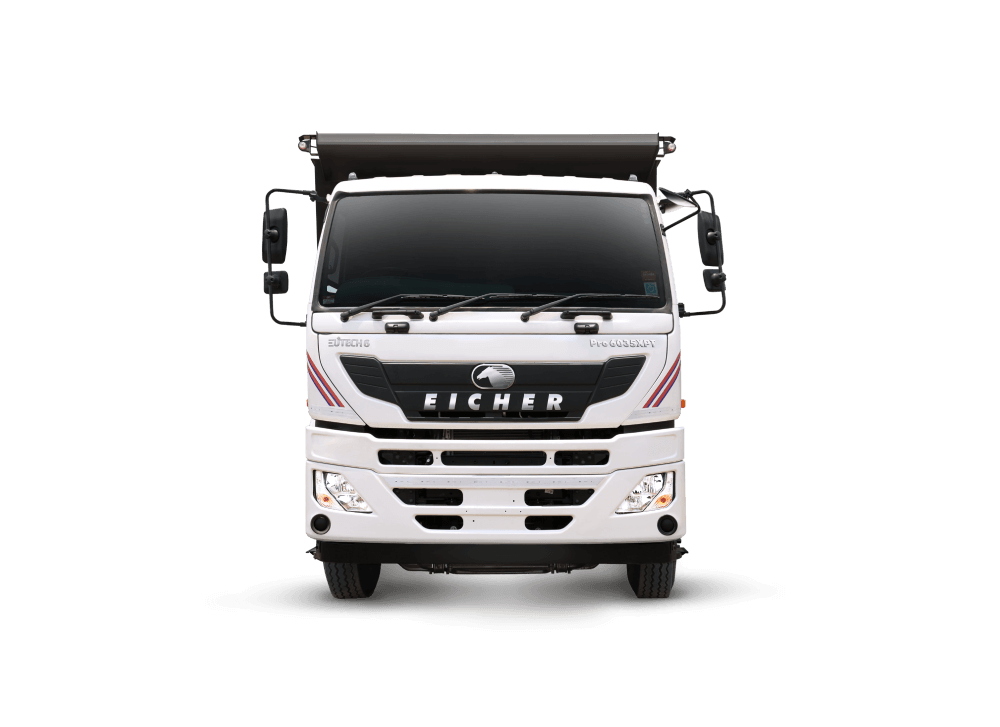

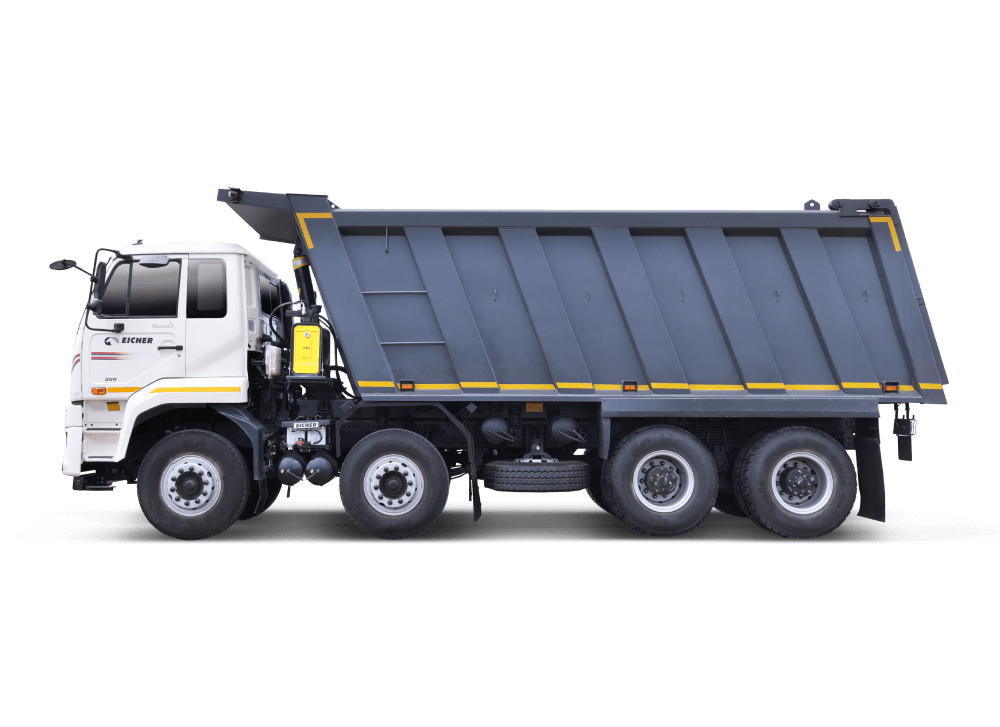

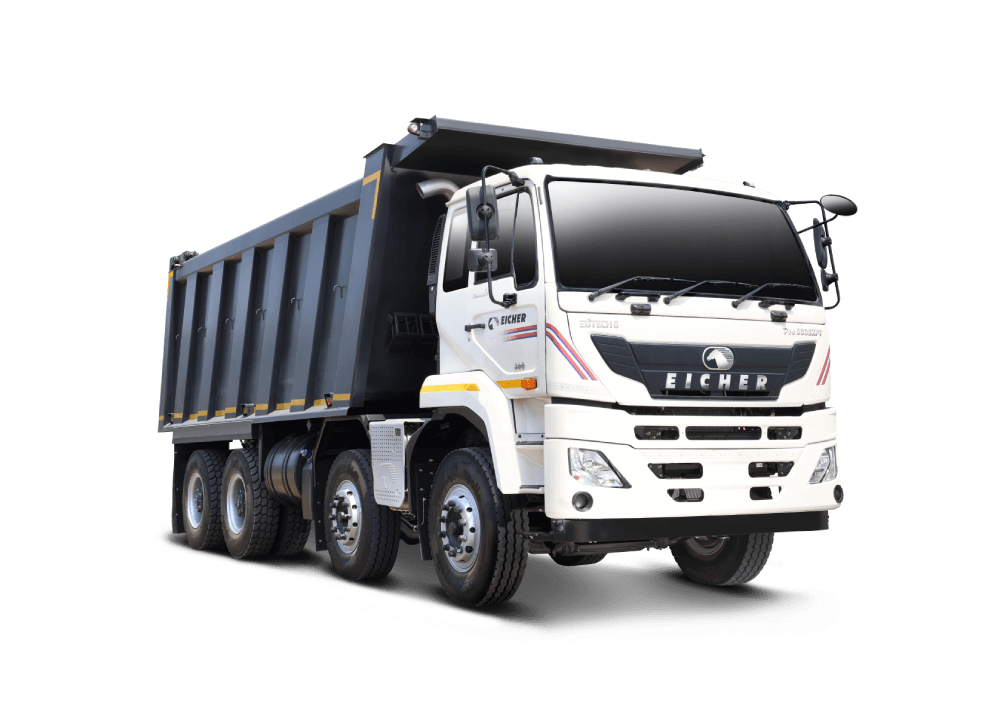

Eicher Pro 6035XPT

Do Even more with the all new Eicher Pro 6035XPT, now upgraded with increased horsepower & torque. Equipped with biggest VEDX series 7.7L engine in the segment, offering unmatched performance for all your needs. Backed by even sturdier aggregates & a hub reduction tandem axle to bear the heavy load and tough demands from daily operations. Increase your overall fleet efficiency & productivity with Pro 6035XPT.

Download BrochureGet PriceFind Dealer
  • GVW
    GVW35 T
  • Engine
    EngineVEDX8, 6Cyl 7.7L
  • Power
    Power 224 kW
  • Torque
    Torque1200 Nm
  • Transmission
    TransmissionET140S9
  • Variants
    VariantsCBC / 18RB / 23BB
  • Specification
  • Technology
SPECIFICATIONS Pro 6035XPT
GVW (KG) 35000
Engine VEDX8 BSVI, OBD II
Max. Power 224kW@ 2200rpm
Max. Torque 1200Nm@1200-1600rpm
Clutch (mm) 430mm, Pull Type, Single Dry Plate
Gearbox ET140S9 9-Speed (Manual)
Front Axle Forged I-beam Reverse Elliot Type with Anti-Roll Bar
Rear Axle Hub Reduction with Full Differential Lock
Rear Axle Ratio 4.8
Chassis Dimensions (mm) 300x90x8, with 5mm full inner liner
Service Brake S-cam dual line ABS
Parking Brake Pneumatically operated hand control valve
Front Suspension Parabolic spring with shock absorber
Rear Suspension Bogie suspension with Rear Anti-Roll Bar
Cabin Sleeper Cabin with HVAC & Air Suspended Driver Seat
Steering Tilt & Telescopic, Power Steering
Tyres 11x20, (Nylon, Mining, Radial)
Wheel Rims 7.5x20 (11X20), 8X20 (11R20)
Fuel Tank (Liters) 315 L - Metallic
DEF Tank (Liters) 50 L
Battery 24V:120Ah
Wheelbase (mm) 5285 mm
Turning Circle Diameter (m) 18.6 m
Gradeability (%) 51.4% @ C-Gear
Ground Clearance (mm) 290 mm
Body Variants CBC, 18CuM Rock, 23CuM Box

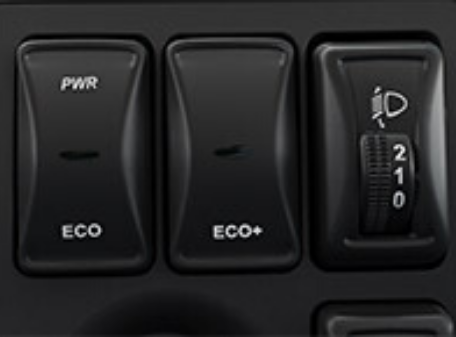

Standard Features Hill Start Assist, MBooster+, Cruise Control, My Eicher
