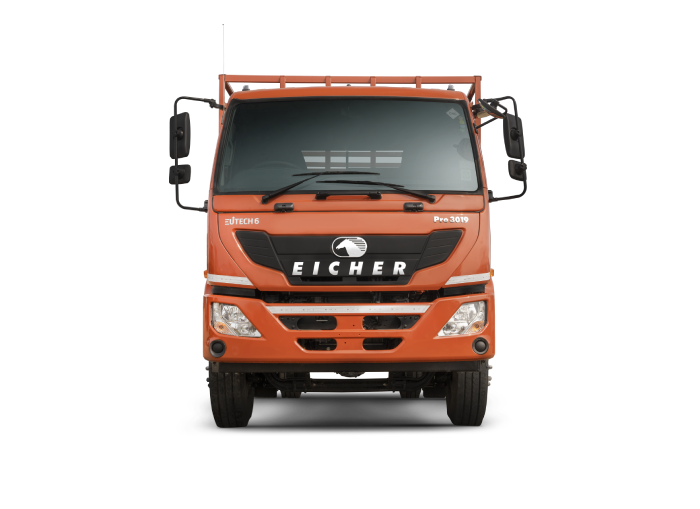

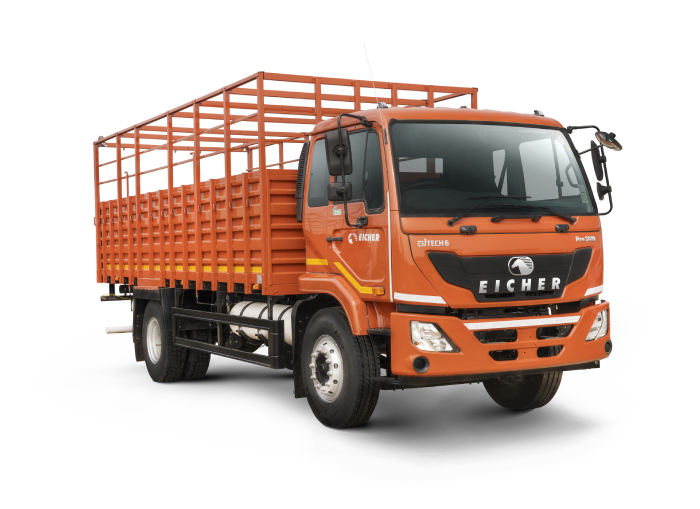

- Exterior

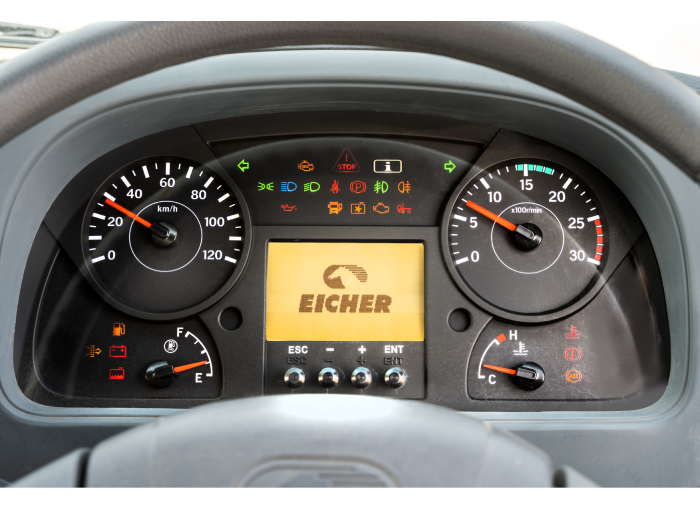

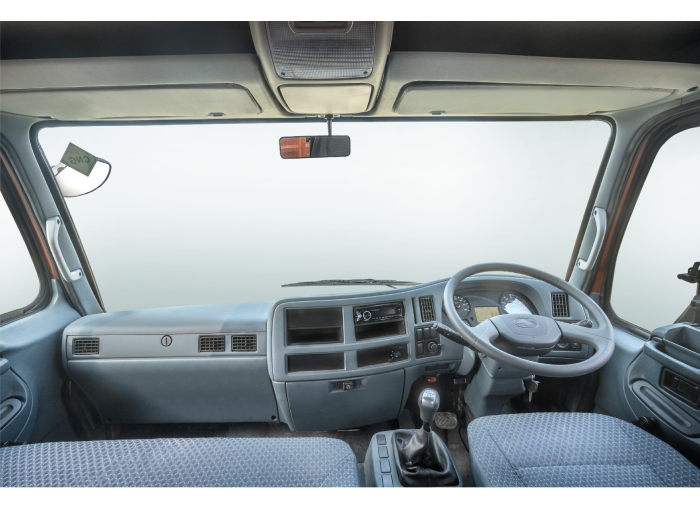

- Interior

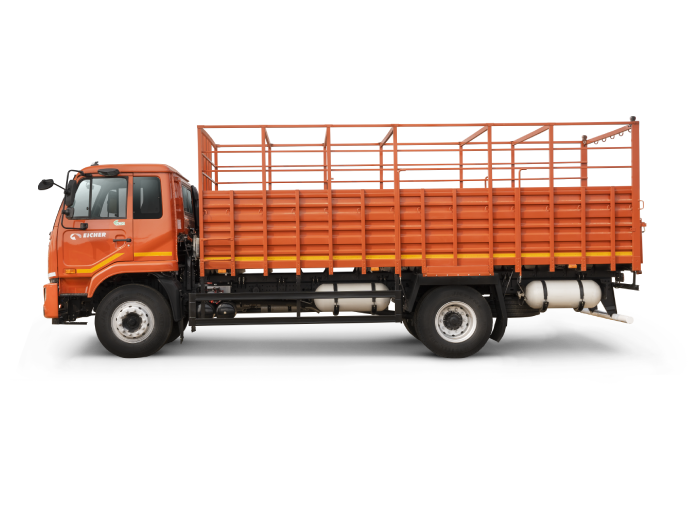

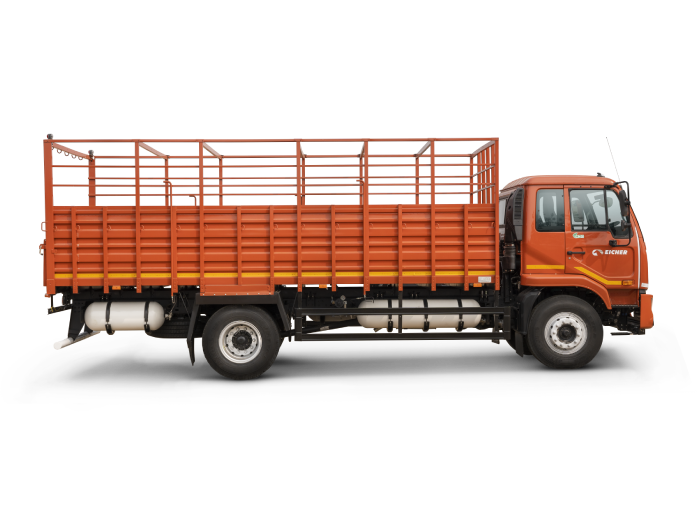

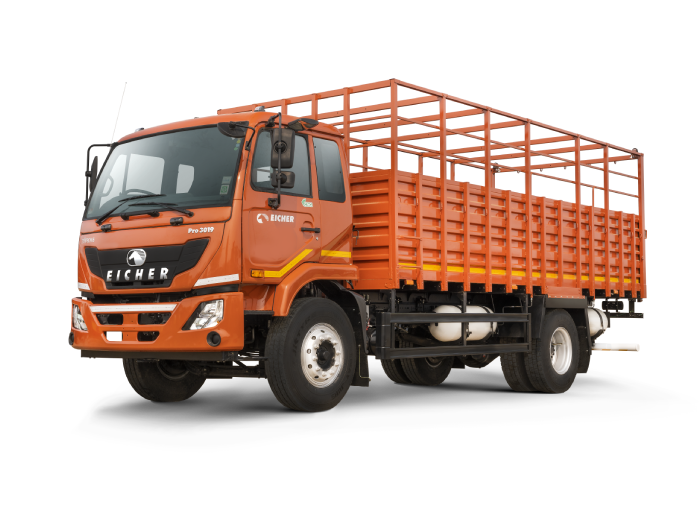

Eicher Pro 3019 CNG
The all new Eicher Pro 3019 CNG is a 18.5 ton GVW 4x2 rigid haulage truck, powered with proven E494 - 4 Cylinder 3.8L engine delivering the best power and torque combination in its segment. It offers best-in-class fuel efficiency and Higher Power helping customers Stay Ahead in business.
GVW18.5 T
EngineE494 4Cyl 4V 3.8L
Power 110 kW
Torque500 Nm
TransmissionET60S6
VariantsCWC / CBC / HSD
- Specification
- Technology
- Applications
| SPECIFICATIONS | Pro 3019 E4 CNG | ||||
|---|---|---|---|---|---|
| GVW | 18500 kg | ||||
| Engine | E494, 4 Cyl 4V 3.8L Engine | ||||
| Power | 110 kW (147HP) @ 2400 rpm | ||||
| Torque | 500 Nm @ 1400-1800 rpm | ||||
| Clutch | 362 mm with Clutch Booster | ||||
| Transmission | ET60S6 | ||||
| Front Axle | Reverse Elliot Type | ||||
| Rear Axle | Fully floating banjo type, 395mm drive head | ||||
| FDR | 6.428 | ||||
| Chassis | 230 X 76 X 6 mm | ||||
| Brakes | Dual circuit full air ‘S’ Cam with auto slack adjuster | ||||
| Front Suspension | Parabolic leaf spring (5 nos.) | ||||
| Rear Suspension | Semi Elliptic (Main - 12; Helper - 5 nos) | ||||
| Cabin | Sleeper Cabin | ||||
| Steering | Telescopic Power Steering | ||||
| Tyres | 295/90R20 | ||||
| Battery | 12V | ||||
| Wheelbase | 4490 mm | 5490 mm | 6690 mm | ||
| Variants | CBC | HSD | CBC | HSD | CBC |
| Looding span | 6067 mm | 6112 mm | 7295 mm | 7361 mm | 9695 mm |
| Fuel Tank | 396 litre | 558/636 litre | 558/636 litre | 558/756 litre | 1032 litre |
