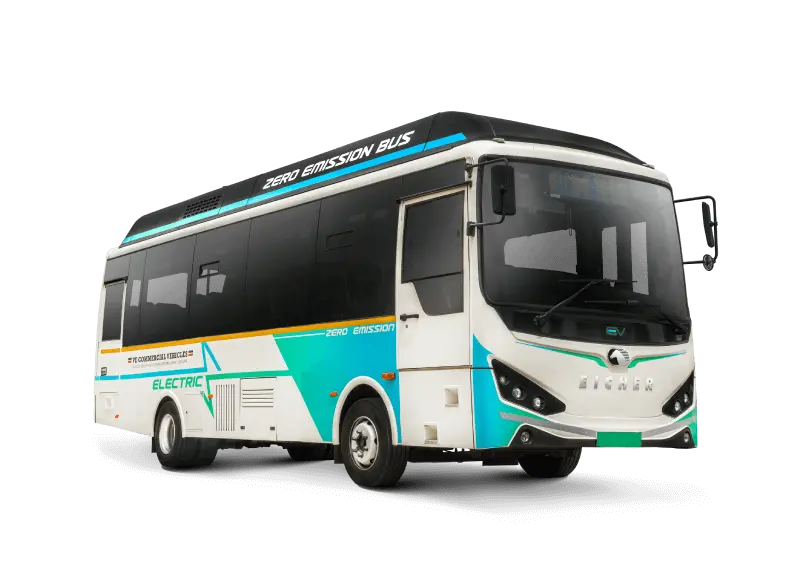

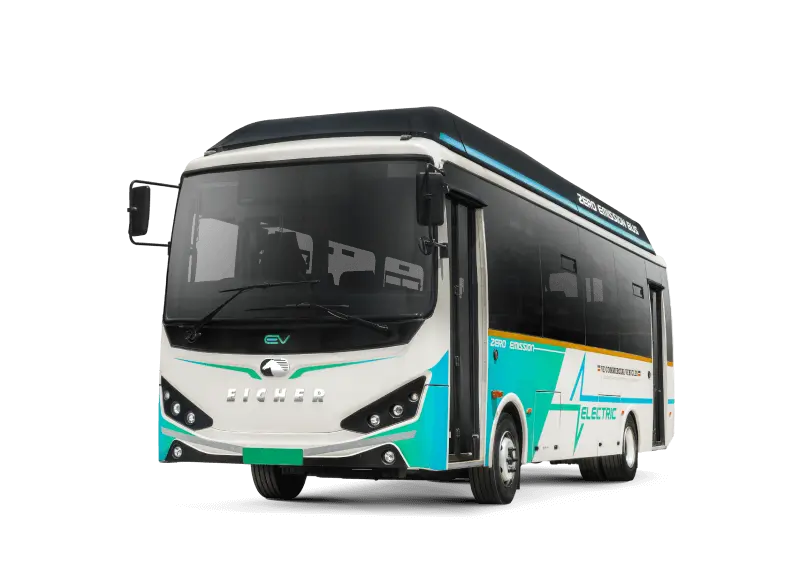

Eicher Skyline Pro-E 9m
The Skyline Pro-E 9 m is an efficient and dynamic innovation that plans to transform the face of staff transportation. The marquee brand has been designed to perform in the urban environment with a go-anywhere attitude in an efficient, clean and silent manner.
GVW12.8 t
Seating Capacity37+D
TCD15.7 m
Torque2010 Nm
Power 207 kW
Battery Capacity199.68kWh
- Specification
| SPECIFICATIONS | Skyline Pro-E 9m |
|---|---|
| Seating Capacity (HHR) | 37+D(Single Door), 32+D(Double Door) 2X2 |
| Seating Capacity (PB) | 33+D(Single Door), 29+D(Double Door) 2X2 |
| Driver Seat | Cushion type |
| Overall Height (mm) | 3412 |
| Ground Clearance (mm) | 175 |
| Floor Height (mm) | 900 |
| Turning Circle Diameter (m) | 15.7 |
| GVW (kgs) | 12803 |
| Wheelbase (mm) | 4320 |
| Overall length (mm) | 9005 |
| Overall Width (mm) | 2350 |
| Acceleration 0 - 30 kmph | < 10.5 sec. |
| Gradeability in Degrees | 18% |
| Range per day with opportunity charging | 220-230 kms |
| Electrical Regeneration | Yes |
| Battery Pack Protection | Yes |
| Over-temperature protection | Yes |
| Short Circuit Protection | Yes |
| Lightening Protection | Yes |
| Air Conditioning | Yes |
| Brakes | Front – Disc Rear - Drum |
| Tyres | 245/70 R17.5 |
| Suspension | Air |
| Steering | Power Assisted |
| Door System | Pneumatically Controlled |
| Charging Protocol | CCS 2 |
|
Charger options
|
60 kW / 120 kW / 180 kW/240 kW/360 kW |
| Max Power (kW) | 207 |
| Max Torque (Nm) | 2010 |
| Max. Speed (kmph) | 80 |
| Battery Capacity (kWh) | 199.68 |
| Cooling System | Liquid cooled |
| Battery | Octillion |
| Chassis Type | Ladder |
| Transmission Type | Automatic |
| Flooring | Plywood 12 mm thickness and Vinyl 3 mm thickness |
| Body Description | Fully built up bus |
| Door Layout | Optional |
| ITS | Yes |
| FDAS | Yes |
| Charging Time | 2 to 2.5 hrs |
