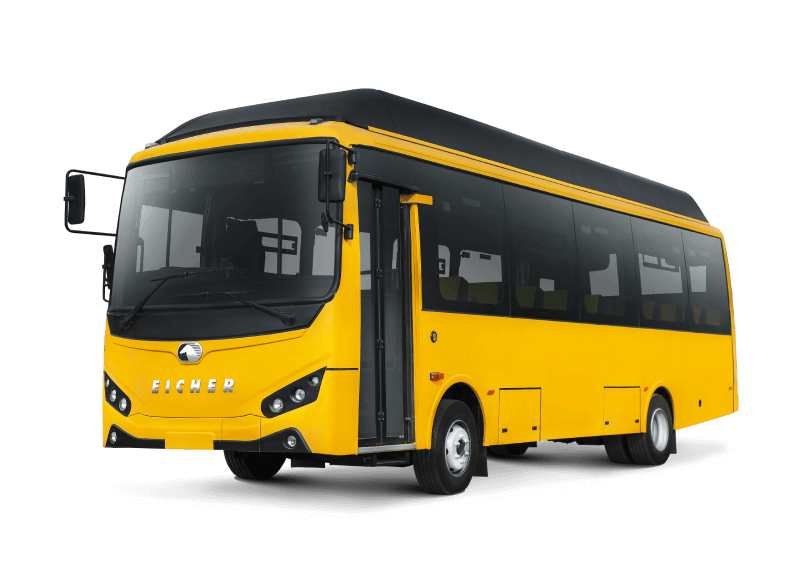

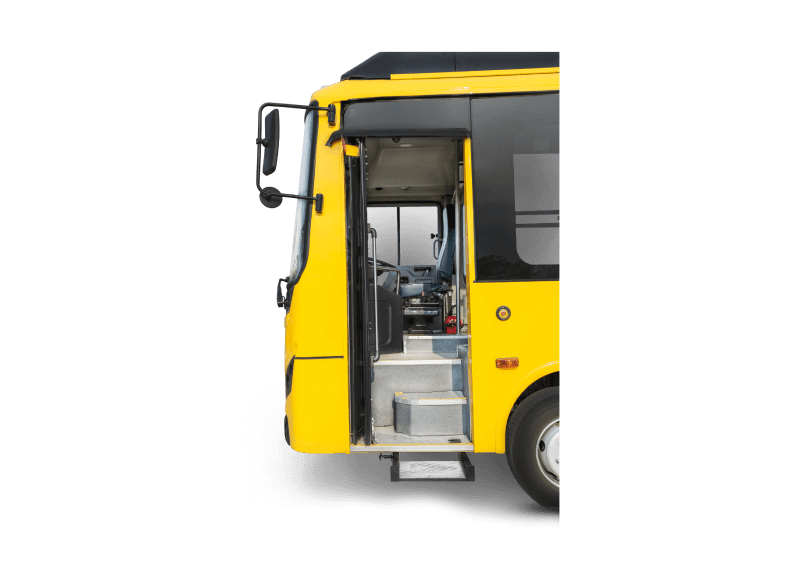

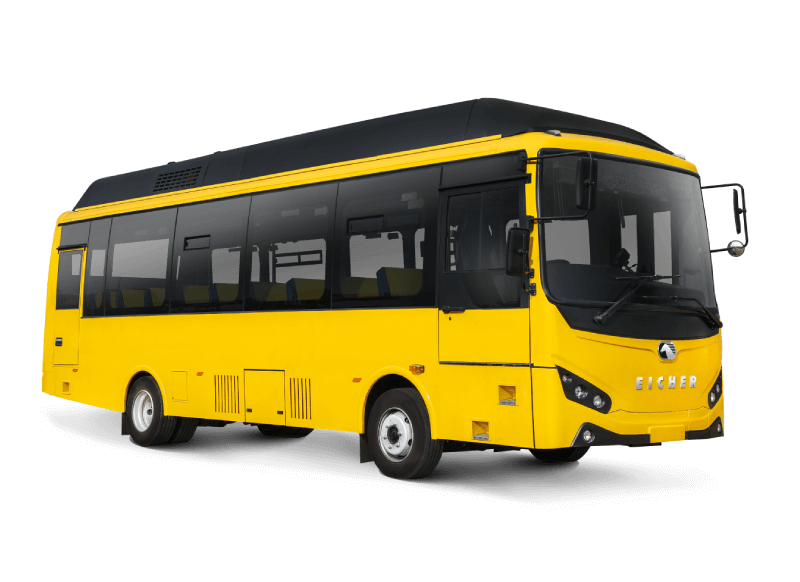

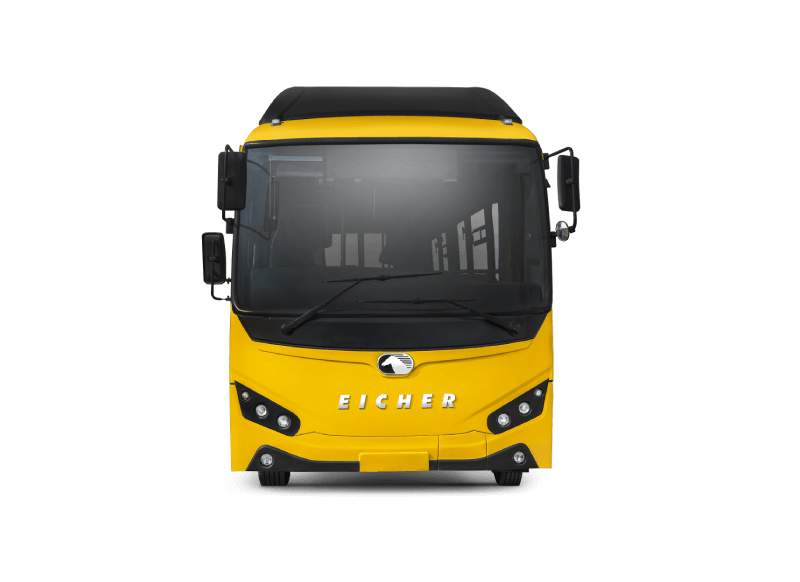

- Exterior

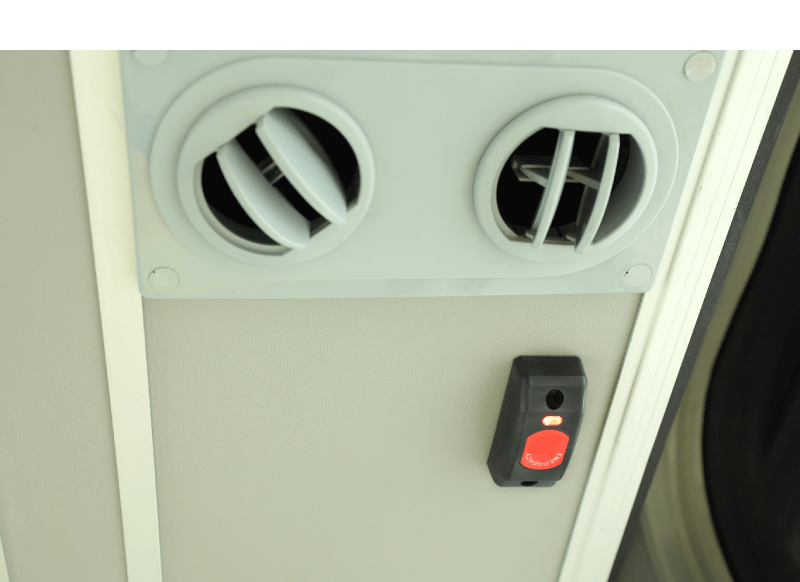

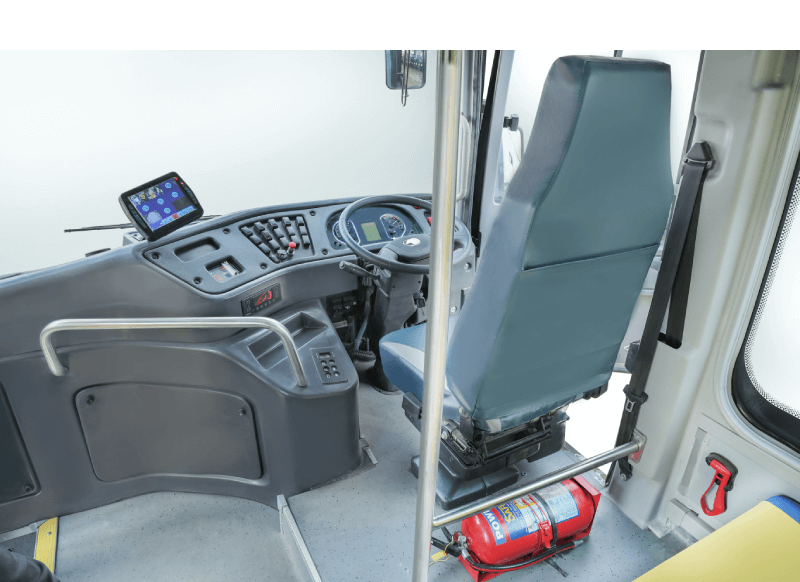

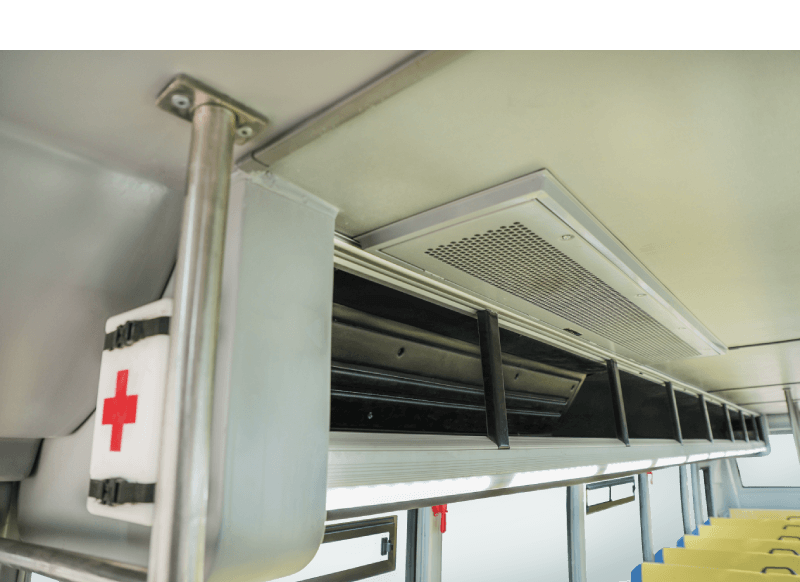

- Interior
Eicher Skyline Pro-E 9m
The Skyline Pro-E 9 m is an efficient and dynamic innovation that plans to transform the face of school transportation. The bus has been designed to perform in the transportation of the school students in a safe, efficient, and silent manner.
GVW12.8 t
TCD15.7 m
Seating Capacity62 +D
Power 207 kW
Torque2010 Nm
Battery Capacity99.84 kWh
- Specification
| SPECIFICATIONS | Skyline Pro-E 9m |
|---|---|
| Seating Capacity (Standard Bench Type Seat) | 62+D-3x3 | 52+1+D- 3x2 |
| Seating Capacity (HR) | 36+D 2X2 |
| Driver Seat | Cushion type |
| Overall Height | 3412 |
| Ground Clearance (mm) | 175 |
| Floor Height (mm) | 900 |
| Turning Circle Diameter (m) | 15.7 |
| GVW (kgs) | 12803 |
| Wheelbase (mm) | 4320 |
| Overall length (mm) | 9005 |
| Overall Width (mm) | 2350 |
| Acceleration 0 - 30 kmph | < 10.5 seco |
| Gradeability in Degrees | 18% |
| Range per day with opportunity charging | 100-150 kms (Single Battery) |
| Electrical Regeneration | Yes |
| Battery Pack Protection | Yes |
| Over-temperature protection | Yes |
| Short Circuit Protection | Yes |
| Lightening Protection | Yes |
| Air Conditioning | Yes |
| Brakes | Front – Disc Rear - Drum |
| Tyres | 245/70 R17.5 |
| Suspension | Air |
| Steering | Power Assisted |
| Door System | Pneumatically Controlled |
| Charging Protocol | CCS 2 |
|
Charger options
|
60 kW / 120 kW / 180 kW/ 240 kW / 360 kW |
| Max Power (kW) | 207 |
| Max Torque (Nm) | 2010 |
| Max. Speed (kmph) | 60 |
| Battery Capacity (kWh) | 99.84 |
| Cooling System | Liquid cooled 40 : 60 (water / glycol) |
| Battery | Octillion |
| Chassis Type | Ladder |
| Transmission Type | Automatic |
| Flooring | Plywood 12 mm thickness and Vinyl 3 mm thickness |
| Body Description | Fully built-up bus |
| Door Layout | FOH |
| ITS | Optional |
| FDAS | Yes |
| Charging Time | 1.5 to 2 hrs |
