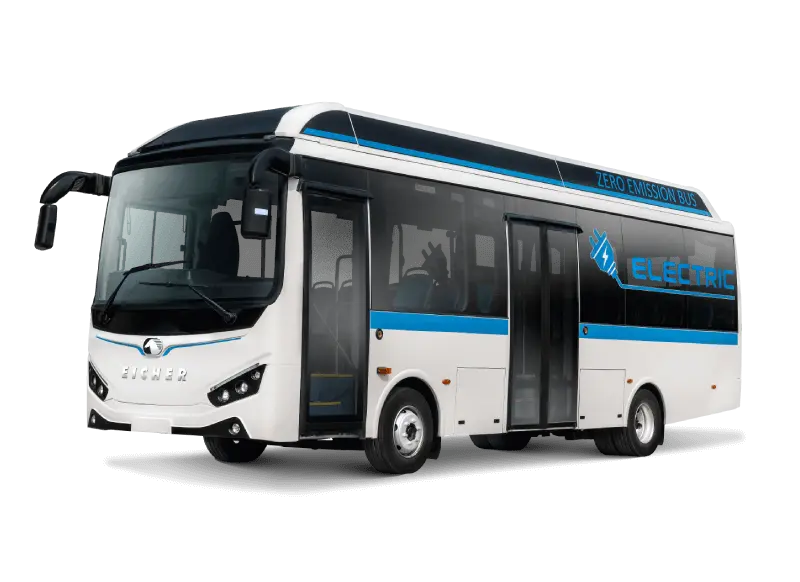

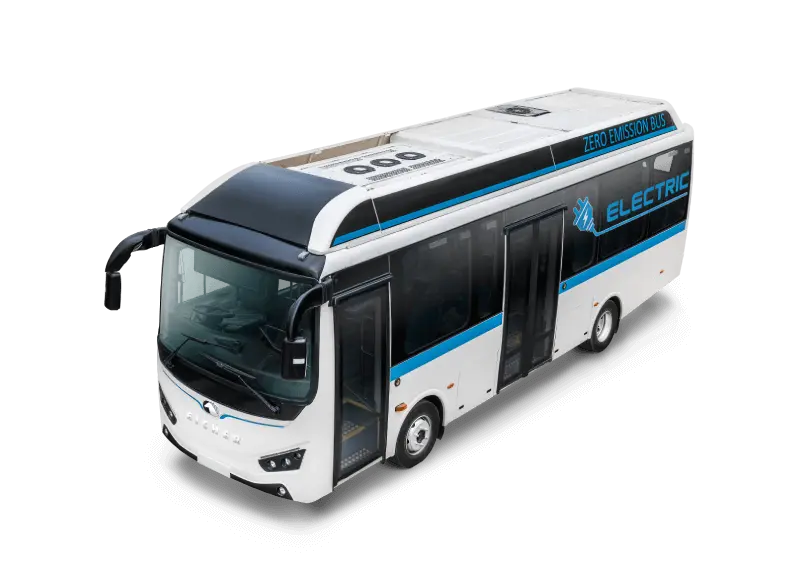

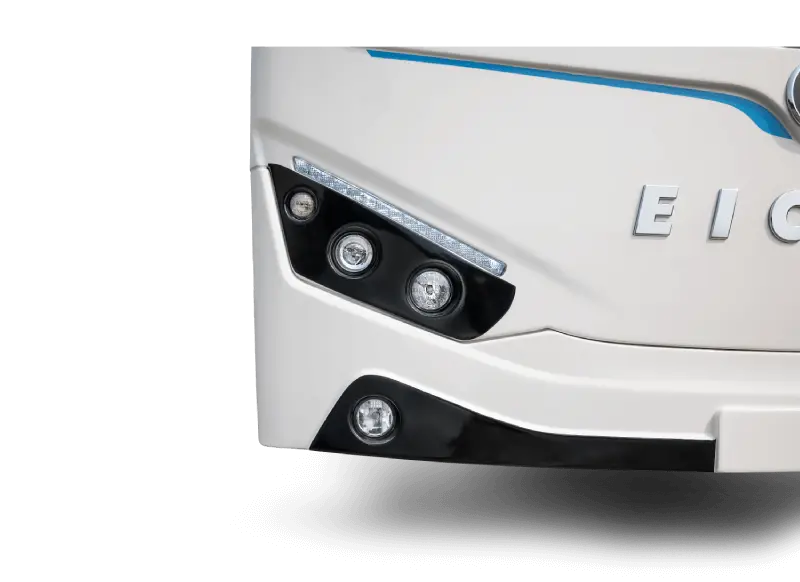

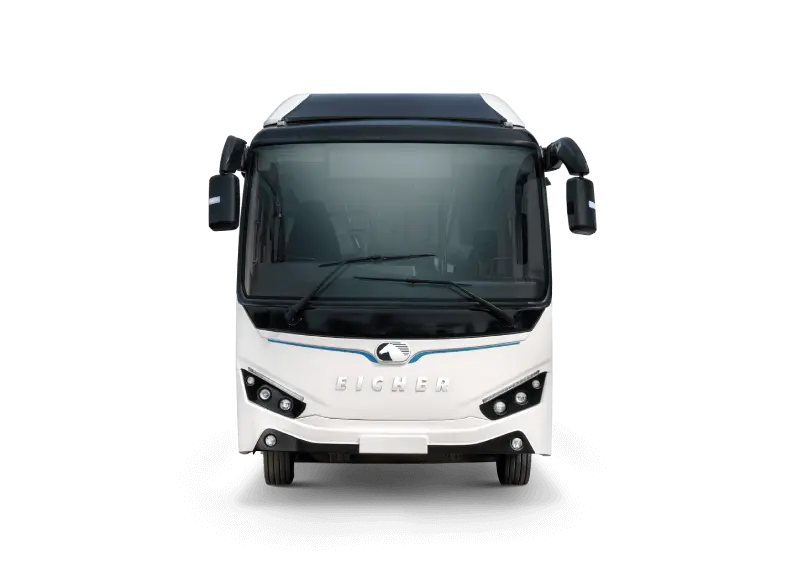

  • Exterior

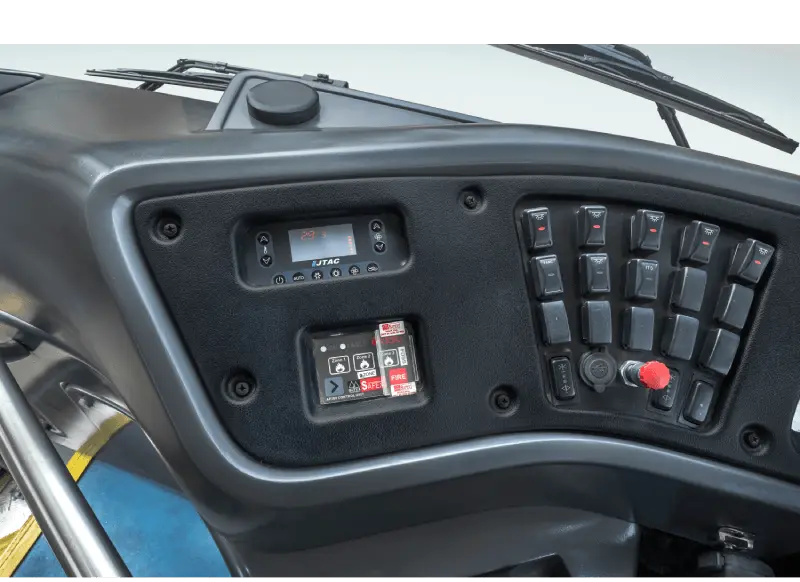

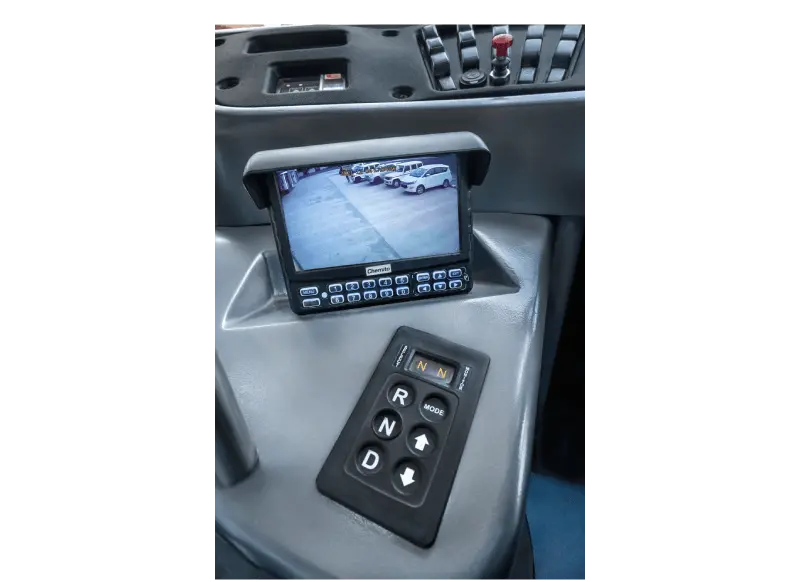

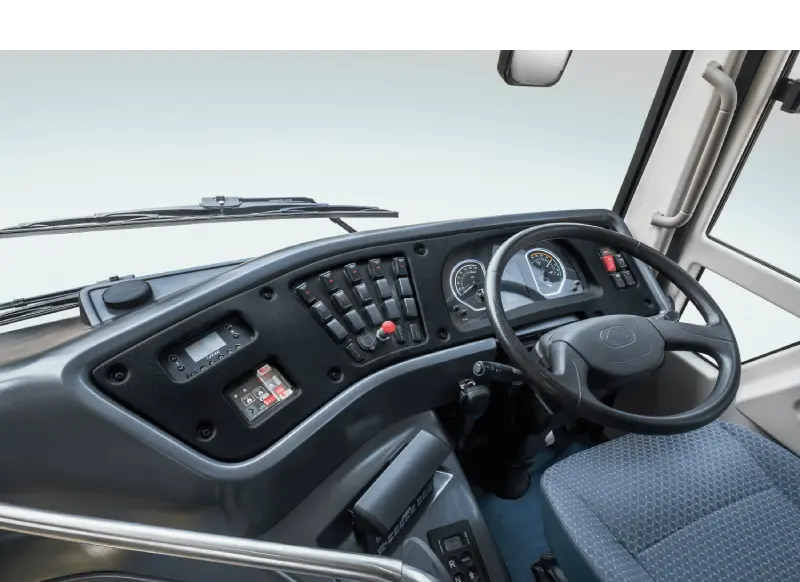

  • Interior

Eicher Skyline Pro-E 9m

The Skyline Pro-E 9m is a next-generation electric bus engineered to redefine urban public transportation. Designed for superior performance, it offers an efficient, clean, and silent driving experience—perfect for modern city mobility. Built with a dedicated wheelchair provision, the Skyline Pro-E 9m ensures enhanced accessibility, making it a truly inclusive and sustainable mobility solution for urban commuters.

Download BrochureGet PriceFind Dealer
  • GVW
    GVW12.8 t
  • TCD
    TCD15.7 m
  • Seating Capacity
    Seating Capacity36+D
  • Power
    Power 207 kW
  • Torque
    Torque2010 Nm
  • Battery Capacity
    Battery Capacity199.68kWh
  • Specification
SPECIFICATIONS Skyline Pro-E 9m
Seating Capacity (HHR) 36+D (Single Door), 32+D(Double Door) 2X2
Seating Capacity PB 32+D 2X2
Seating Capacity (PMS) 32+D (Double Door) 2x2 , 25+Wheelchair+Middle Wide Door 2X2
Driver Seat Cushion type
Overall Height 3412
Ground Clearance (mm) 175
Floor Height (mm) 900
Turning Circle Diameter (m) 15.7
GVW (kgs) 12803
Wheelbase (mm) 4320
Overall length (mm) 9005
Overall Width (mm) 2350
Acceleration 0 - 30 kmph < 10.5 sec.
Gradeability in Degrees 18%
Range per day with opportunity charging 220-230 kms
Electrical Regeneration Yes
Battery Pack Protection Yes
Over-temperature protection Yes
Short Circuit Protection Yes
Lightening Protection Yes
Air Conditioning Yes
Brakes Front – Disc
Rear - Drum
Tyres 245/70 R17.5
Suspension Air
Steering Power Assisted
Door System Pneumatically Controlled
Charging Protocol CCS 2
Charger options
 60 kW / 120 kW / 180 kW/ 240 kW / 360 kW
Max Power (kW) 207
Max Torque (Nm) 2010
Max. Speed (kmph) 60
Battery Capacity (kWh) 199.68
Cooling System Liquid cooled
Battery Octillion
Chassis Type Ladder
Transmission Type Automatic
Flooring Plywood 12 mm thickness and Vinyl 3 mm thickness
Body Description Fully built up bus
Door Layout Optional
ITS Yes
FDAS Yes
Charging Time 2 to 2.5 hrs
