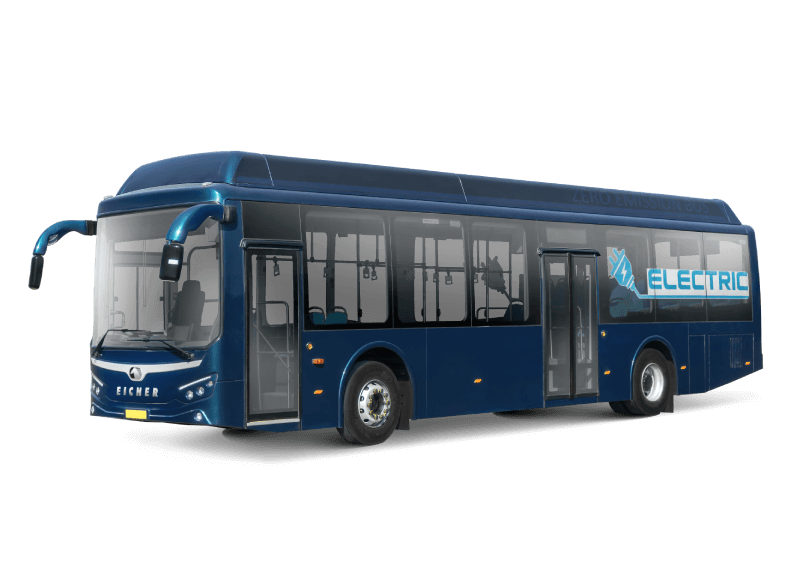

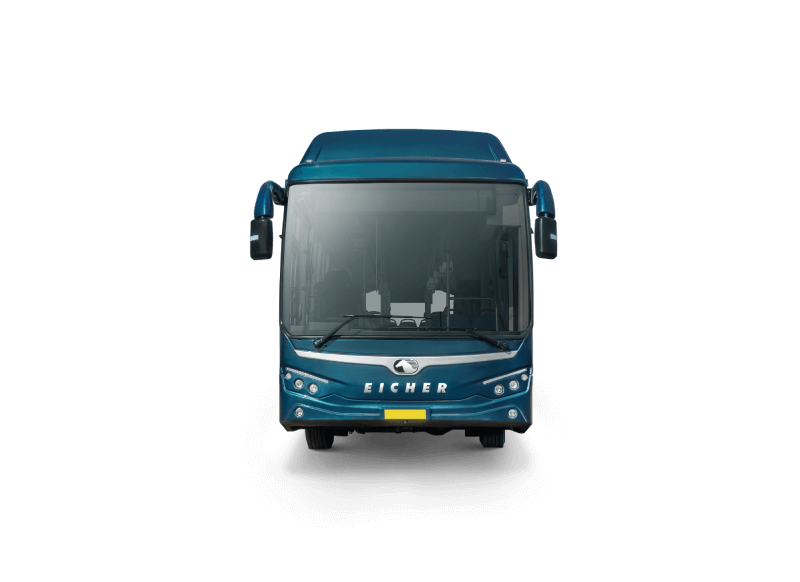

Eicher Skyline Pro-E 12m
Thoughtfully designed, the Skyline Pro-E 12 m has a lot to offer with cutting-edge technology and capability of charging at 1.0 C rate which remarkably reduces the charging time and offers best-in-class performance efficiency under operating conditions. Skyline Pro-E 12 m is a Monocoque, whose dynamic design concept makes it superior-most in the league with prismatic cell technology ensuring longer battery life.
GVW19.5 t
TCD20.5 m
Seating Capacity45+D
Power 235 kW
Torque3256 Nm
Battery Capacity299.52 KWh
- Specification
| SPECIFICATIONS | Skyline Pro-E 12m |
|---|---|
| Seating Capacity (PMS) | 35+D+Wheel Chair (Middle Wide Door) 2X2 |
| Driver Seat | Cushion type |
| Overall Height | 3570 |
| Ground Clearance (mm) | 175 |
| Floor Height (mm) | 400 |
| Turning Circle Diameter (m) | 20.5 |
| GVW (kgs) | 19500 |
| Wheelbase (mm) | 6000 |
| Overall length (mm) | 12020 |
| Overall Width (mm) | 2590 |
| Acceleration 0 - 30 kmph | < 10.5 sec. |
| Gradeability in Degrees | 17% |
| Range per day with opportunity charging | 250-300 kms |
| Electrical Regeneration | Yes |
| Battery Pack Protection | Yes |
| Over-temperature protection | Yes |
| Short Circuit Protection | Yes |
| Lightening Protection | Yes |
| Air Conditioning | Yes |
| Brakes | Front-Disc Rear-Disc |
| Tyres | 295/80 R22.5 |
| Suspension | Air |
| Steering | Power Assisted |
| Door System | Pneumatically Controlled |
| Charging Protocol | CCS 2 |
|
Charger options
|
60 kW / 120 kW / 180 kW/ 240 kW / 360 kW |
| Max Power (kW) | 235 |
| Max Torque (Nm) | 3256 |
| Max. Speed (kmph) | 60 |
| Battery Capacity (kWh) | 299.52 |
| Cooling System | Liquid cooled |
| Battery | Octillion |
| Chassis Type | Monocoque |
| Transmission Type | Automatic |
| Flooring | Plywood 12 mm thickness and Vinyl 3 mm thickness |
| Body Description | Fully built up bus |
| Door Layout | FOH & Middle |
| ITS | Yes |
| FDAS | Yes |
| Charging Time | 2.5 hrs to 3hrs |
