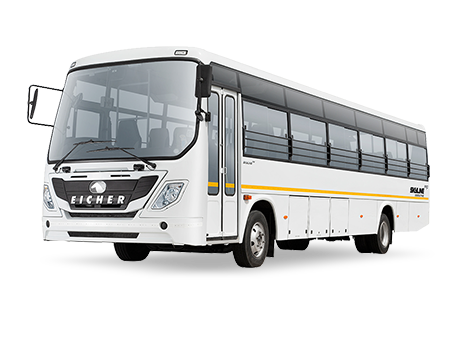

EICHER Skyline Pro 3008H- LHD
The Eicher Skyline Pro 3008 H is a new generation staff bus for enhanced passenger comfort and safety, pleasing aesthetics, superior build quality, best-in-class fuel efficiency and ease of maintenance. The bus has a wheelbase of 4320mm and overall length of 8800mm, along with a seating capacity of 36. The Eicher Skyline Pro 3008 H is powered by an E483 BS III engine.
Seating Capacity33+D HHR
EngineE494
Power164 hp
Torque520 Nm
Transmission 6 Speed
Fuel TankDiesel
- Specifications
- Benefits
- Technology
- Applications
| SPECIFICATIONS | Skyline Pro 3008H- LHD |
|---|---|
| Engine type | E494 Euro-III |
| Max. Power | 110KW @2600RPM |
| Max. Torque | 490Nm @ 1400-1800rpm |
| Displacement | 3770 cc |
| Gradebility | 40% |
| TCD | 14 m |
| Clutch type | 330 dia Clutch with clutch booster |
| Gearbox model | ET40S6 |
| Gearbox type | 6 forward +1 reverse with OD, Cable type GSL |
| Axle Front | I - Beam Reverse Elliot type |
| Axle Rear (FDR) | 320 DH, 4.33 FDR |
| Front, Spare and Rear Tyres | 235 / 75 R 17.5 14 PR |
| Suspension Front & Rear | Parabolic Spring |
| Shock Absorber | 2 nos of Hydraulic shock absorber |
| Steering | Power Steering, Column tilt and Telescopic with column cover |
| Battery | 2 X 12 Volt, 130 AH |
| Alternator | 24V,75+120 |
| System Voltage | 24Volt |
| Battery Cut off | Electric 24 V, 250 Amps |
| Fuel tank Capacity | 100 litres |
| Service Brake | Air operated Dual circuit, Front -Disc brake & Rear - Drum Brake/ S-cam |
| Brake Features | ABS with APDA |
| Brake Features | 3x2 configuration |
| Seating Capacity | 33 + D (2x2) |
| Seats type | HHR |
| Wheel Base | 4320 mm |
| Front Overhang | 2009 mm |
| Rear Overhang | 2609 mm |
| Length | 8938 mm |
| Width | 2350 mm |
| Height | 900 mm |
| GVW (with (90% fuel) | 8760 kg |
| AC Make | EBERSPAECHER SUETRAK (AC346) |
| Max cooling capacity (kW) | 31 KW |
Class leading fuel efficiency (high performance and low fuel consumption)

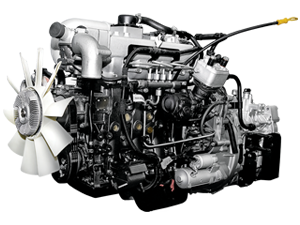

New generation E494 4 Cylinder CRS engine

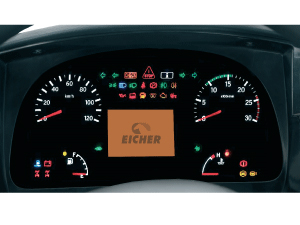

IDIS –Intelligent Driver Information System
