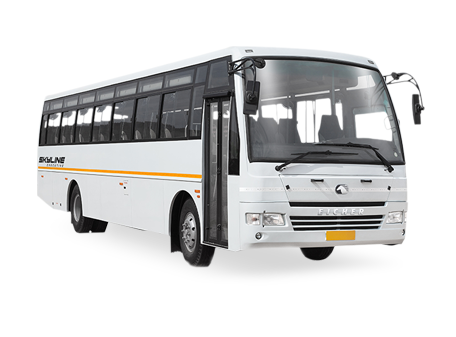

EICHER 20.15N LHD Staff Bus BSII

Eicher 20.15 bus is designed with the purpose of maximizing comfort and safety for the passanger ensuring on-time arrival to the destination with its high speed and acceleration.And above all has the powerful Eicher E683 engine that ensures dependability and extended oil drain intervals reducing your overall maintenance cost

Seating Capacity66+D, 58+D
EngineE683 TCI 6 cyl
Power170 hp
Torque550 Nm
Transmission 5 Speed
Fuel TypeDiesel
  • Specifications
  • Benefits
  • Applications

SPECIFICATIONS 20.15 HCB NAC/AC BSII
Wheelbase 5840 mm
Front Overhang 2225 mm
Rear Overhang 3504 mm
Overall length 11570 mm
Turning Circle Diameter 23.2 m
GVW 14600 kg
Overall width 2590 mm
Internal height 1925 mm
Seating Capacity  66+D, 58+D (3x2)
Engine Make E683 TCI 6 Cylinder 4.9L
Power 170 HP @3200 RPM
Torque (rpm)   550 Nm @1350 rpm
Clutch Diameter 330 mm
Transmission 5 Forward and 1 Reverse
Brake   Air Brake
Tyre 10R 20- 16PR
Suspension  Semi-elliptical laminated spring
Steering Tilt and Telescopic, power steering
Battery (Ah) 24V, 150 Ah
Alternator (Amp) 24V, 55 Amp
Fuel tank capacity 250 litres

Best in class fuel efficiency

Low in maintainence

Superior ride comfort

Stronger aggregates
