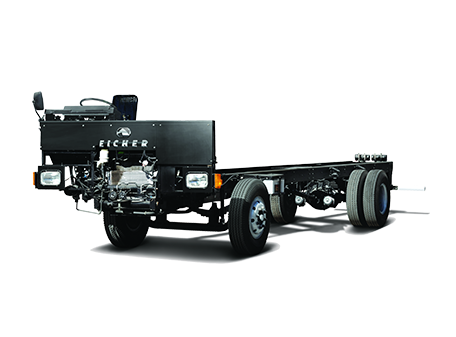

12.12 K Bus Chassis

The Eicher 12.12 K is a bus chassis that comes with the big bus advantage at lower costs. The model has an overall length of 9596mm and a wheelbase of 4650mm. Eicher 12.12 K Bus Chassis is equipped with tilt and telescopic power steering, 6 speed overdrive gearbox and air brakes, ensuring security and hassle free drives. The chassis comes fitted with fuel efficient E494 4V BS3 engine.

Superior uptime
Low maintenance
Fast pick-up and acceleration
Ease of maintenance
Best-in-class fuel efficiency
High Performance CRS Engine
6 Speed Overdrive Gear Box
Tourist
School Bus
Route Permit

SPECIFICATIONS

Parameters Value
Engine Model E494 BSIII
Engine Type 4 Cylinder, 16 Valves (Four Valves Cylinder) water cooled, Turbo charged inter cool
Engine (Bore X Stroke) mm 100 X 200
Displacement in cc 3800
Power 120 HP @2600 RPM
Torque 400 Nm @1600 RPM
Gear Box Model ET40S6
Gear Box Ratio 7.22 / 4.01 / 2.36 / 1.47 / 1.00 / 0.77 rev. 7.22
Gear Box Type 6-Speed overdrive synchromesh (6 Fwd & 1 Rev)
Clutch 310 mm Dia Clutch with Booster
Gradibility 1st Gear (%) 28
Chassis Type Ladder type design modular frame
Chassis Dimension (LX W X H) 210 x 76 x 6 (mm)
Brakes Dual circuit 'S' cam full Air Brakes
Tyres 8.25 x 20 - 16PR
Suspension Semi Elliptical, Laminated Leaf Spring
Steering Tiltable and Telescopic Power Steering
Battery 12V - 130Ah
Alternator 12V - 75Amp
Fuel tank capacity 185 Ltrs
Wheelbase (mm)(inch) 4650 (183")
Front Overhang (mm) 2224
Rear Overhang (mm) 2722
Overall Length (mm) 9600
Ground Clearance (mm) 260
Turning Circle Diameter (m) 18.7
Overall Width (mm) 2470
Overall Height (mm) 3190
GVW 11950
